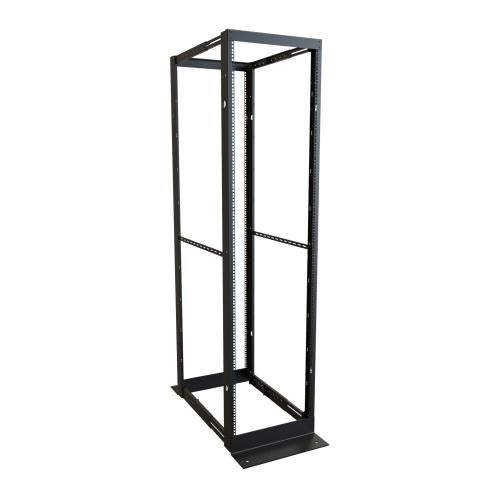

Hammond Manufacturing DC4R44 | 44U 4-Post Adjustable Rack Kit, 24"-36" Depth
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing DC4R44 | 44U 4-Post Adjustable Rack Kit, 24&q...
Description
Description
The Hammond DC4R44 is a 44U 4-post adjustable rack kit offering depth adjustability from 24" to 36", ideal for networking or server equipment. It features a self-squaring design for easy assembly and ships unassembled. For added versatility, optional additional rail sets (DC4RPR44) can be added for more mounting positions. The robust design ensures long-term durability and stable equipment support.
The Hammond DC4R, Open Rack series, is one of the most economical solutions to house IT equipment in wiring closets or data centers. When the wiring closet is locked and accessed by a limited number of people, full cabinets with locking doors and side panels may not be required, resulting in significant cost savings. If you're building a Homelab, the DC4R24 is ideal.
Hammond Manufacturing - DC4R44 - Features
- Available in 24U and 44U mounting heights.
- Self-squaring design ships un-assembled (some assembly required).
- For 44U height, add optional third or fourth pair of rails DC4RPR44 to provide additional adjustable mounting depths.
- Optional solid side panels for added security.
- Four (4) pairs of integrated 10-32 ground studs at the rack's front and rear. Stud pairs are conveniently spaced 5/8” apart and located across from each other inside the rail channel. For added convenience, two (2) pairs are located near the top of the rack, while the others are near the bottom.
- Rail depth L-bracket restricts the installer from over-extending the rack. This ensures the integrity of the rack.
- One (1) set of two (2) horizontal cable manager bars. Additional cable manager bars are available by ordering part number DC4RSHCM .
- Two (2) pairs of 19” mounting EIA-compliant rails.
- Square hole rail version ships with a 50-pack of screws and cage nuts CAGKIT1032-50 .
- 10-32 Threaded rail version ships with a 50-pack of screws SCREW1032-50 .
- Includes marked rack unit dividers to aid in equipment mounting.
- Rack rails are constructed in 12-gauge welded steel. Base angles are constructed in 1/4" steel plates.
- Finished in smooth RAL9005 black powder coating. Complies with the Greenguard guidelines for indoor air quality.
- 2,000 lbs (907 kg) static load rating .
- TAA-compliant for GSA Schedule purchases.
- BAA/TAA-compliant documentation available upon request.
- RoHS and REACH Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Specifications
Specifications
Hammond Manufacturing - DC4R44 - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Open Frame Racks
- Assembly Required
Hammond Manufacturing - DC4R44 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | DC4R44 |
| Item Description | 44U 4-Post Adjustable Rack Kit, 24"-36" Depth |
| Color | Black |
| Height | Greater Than 6’ To 7’ |
| Material | Steel |
| Mounting Width | 19" |
| Rack Units | 44U |
| Seismic Rating | No |
| Type | Four-Post |
| UNSPSC Code | 24102001 |
| Part Number | DC4R44 |
| Series | 4-Post Open Frame Rack (DC4R Series) |
| Size H x W x D | 83.13 in x 20.5 in x 36 in (2,112 mm x 521 mm x 914 mm) |
| Shipping Weight | 98 lbs(44.45 kg) |
| UNSPSC | 43223308 |
| UPC | 623980040226 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 44 |
| Rack Type | Open Frame Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Square Hole with 10-32 Cage Nu |
