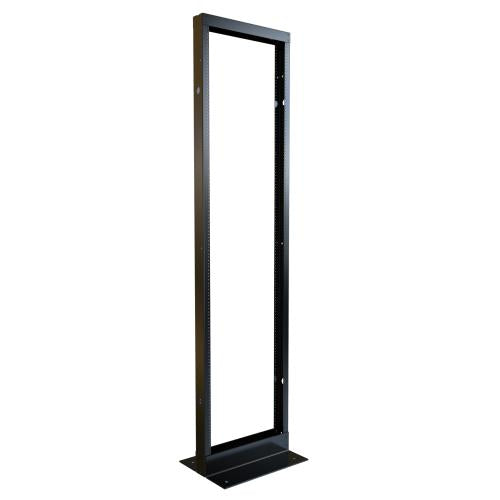

Hammond Manufacturing DNRR77HDKB | 44U 19" Rack Mount, 83.13" Overall Height, Knockdown
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing DNRR77HDKB | 44U 19" Rack Mount, 83.13&q...
Description
Description
The DNRR77HDKB 44U Knockdown Rack features Hammond’s 10-gauge steel frame—the thickest in the industry—for extreme durability. It includes welded 10-gauge rails, 1/4" base plates, and a self-squaring design for fast setup. Ships unassembled to reduce shipping cost and is EIA-compliant with double-tapped 10-32 front and rear rails.
When strength and reliability are the highest priority, be sure to choose the Data/Networking Robust Rack (DNRR) from Hammond Manufacturing. Designed to support your rack-mount infrastructure, regardless of the application, the DNRR includes premium features not found on most other racks.
Hammond Manufacturing - DNRR77HDKB - Features
- Weighing in at just over 75 lbs., the DNRR Heavy Duty Knockdown Series boasts a 10-gauge steel frame, which is the thickest steel rack on the market. Rack rails are constructed in 10-gauge welded steel. Base angles are constructed in 1/4" steel plates.
- Self-squaring design ships un-assembled (some assembly required).
- Our automated tapping process provides EIA-compliant tapped rails on both the front and back to ensure flexibility when mounting equipment.
- Includes marked rack unit dividers to aid in equipment mounting.
- When connecting multiple racks together, Hammond provided a 1.25” cable pass-thru. In addition, we added numerous tapped and non-tapped holes for mounting power distribution, cable management and other accessories.
- Includes two (2) pairs of integrated 10-32 ground studs, spaced 5/8” apart. Stud pairs are conveniently located across from each other inside the rail channel. For added convenience, a pair is located near the top of the rack, while the other pair is located at the lower side.
- To keep it looking great, the DNRR undergoes a three-stage paint process, which includes a coat of premium smooth black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- In order to prevent any damage that may occur during transportation, we cover the rails and base of the DNRR with a thick layer of cardboard.
- 1,200 lbs (544 kg) static load rating .
- TAA-compliant for GSA Schedule purchases.
- BAA/TAA-compliant documentation available upon request.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Specifications
Specifications
Hammond Manufacturing - DNRR77HDKB - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Open Frame Racks
- Assembly Required
Hammond Manufacturing - DNRR77HDKB - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | DNRR77HDKB |
| Item Description | 44U 19" Rack Mount, 83.13" Overall Height, Knockdown |
| Color | Black |
| Height | Greater Than 6’ To 7’ |
| Material | Steel |
| Mounting Width | 19" |
| Rack Units | 44U |
| Seismic Rating | No |
| Type | Two-Post |
| UNSPSC Code | 24102001 |
| Part Number | DNRR77HDKB |
| Series | 2-Post Open Frame Rack (DNRRHDKB Series) |
| Size H x W x D | 83.13 in x 20 in x 15 in (2,112 mm x 508 mm x 381 mm) |
| Shipping Weight | 82 lbs(37.19 kg) |
| UNSPSC | 43223308 |
| UPC | 623980475172 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 44 |
| Rack Type | Open Frame Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
