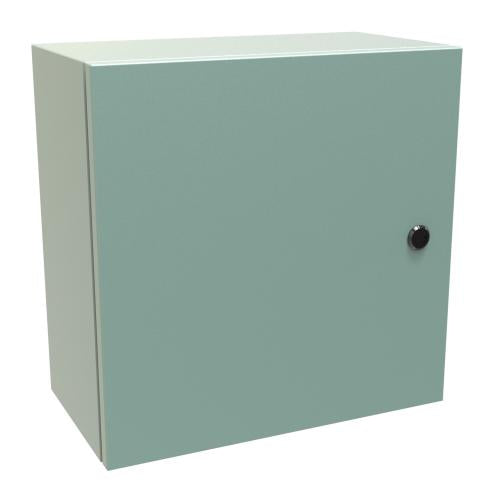

Hammond Manufacturing EN4SD16168GY | NEMA 4/12 Eclipse Enclosure, 16" x 16" x 8", Steel/Gray

Hammond Manufacturing - EN4SD16168GY - Features

• Standards
• UL 508A Type 3R, 4, and 12
• CSA Type 3R, 4, and 12
• Mounting foot kit required to maintain UL/CSA external mounting requirements.
• Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
• Complies with
• IEC 60529, IP66
• NEMA Type 3R, 4, and 12
• Construction
• Formed 14 (24x24" and larger) or 16 (24x20" and smaller) gauge steel.
• Smooth, continuously welded seams ground smooth.
• Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
• Please note that several smaller sizes of this series will no longer feature C channel stiffener/door brackets – see drawing for details. Removing this feature allows for more usable door space.
• Inventory will take some time to be converted to the new design.
• Note: If desired, the C channel door brackets can be added as a special order modification.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• Door latching: Type A has slotted quarter turns, Type B has handle with 3 point latching, Type C has handle with 3 point latching plus additional quarter turns top and bottom.
• Doors may be easily removed for modifications and are interchangeable.
• Seamless poured-in place gasket.
• Collar studs provided for mounting inner panel.
• Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
• Bonding stud provided on door and grounding stud installed in enclosure.
• Hinges are constructed from 304 stainless steel.
• Hinge pins are stainless steel.
• Quarter turn latch and multi-point handle (key lockable) are zinc diecast with black epoxy finish.
• Door alignment guide provided on 36" wide enclosures.
• Door swing can be reversed - requires ordering adapter kit EHLLSAK (for EN4SD72* enclosures, 2 adapter kits required).
• Finish
• Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
