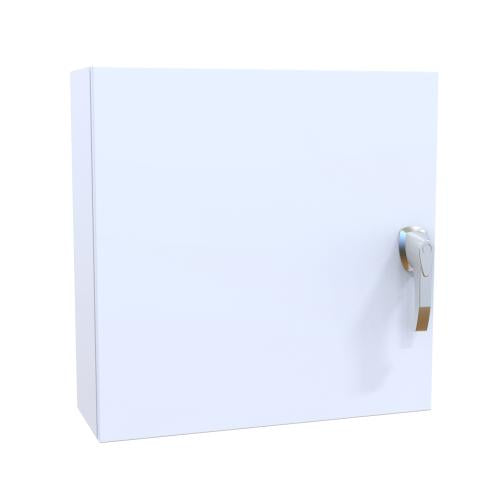

Hammond Manufacturing EN4SD24248SSWH | NEMA 4X Eclipse Enclosure, 24" x 24" x 8", 304 SS, Painted White
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing EN4SD24248SSWH | NEMA 4X Eclipse Enclosure, 2...
Description
Description
The Hammond EN4SD24248SSWH Eclipse Enclosure offers a secure and durable housing solution with a NEMA 4X rating for harsh environments. Constructed from 304 stainless steel and painted white, it measures 24" x 24" x 8". The enclosure meets UL 508A Type 3R, 4, 4X, and 12 standards, as well as CSA equivalents. Ideal for indoor or outdoor use, it ensures protection against dust, water, and corrosion. A seamless body design enhances strength and environmental resistance.
Hammond Manufacturing - EN4SD24248SSWH - Features
- Standards
- UL 508A Type 3R, 4, 4X and 12
- CSA Type 3R, 4, 4X and 12
- Complies with
- NEMA 3R, 4, 4X, 12 and 13
- IEC 60529, IP 66
- Construction
- Formed 14 gauge 304 stainless steel.
- Continuously welded seams ground smooth.
- Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- Doors are secured with a 3 point Handle in 316 stainless with pad lockable feature.
- Doors may be easily removed for modifications and are interchangeable.
- Seamless poured-in place gasket.
- Collar studs provided for mounting inner panel.
- Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- Bonding stud provided on door and grounding stud installed in enclosure.
- Stainless steel hinge pins and hinges.
- Finish
- Cover and enclosure are finished in recoatable smooth RAL 9003 White powder coating inside and out.
Specifications
Specifications
Hammond Manufacturing - EN4SD24248SSWH - Applications
- Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
- A wide range of sizes and practical accessories make this product line a complete package.
Hammond Manufacturing - EN4SD24248SSWH - Product Categories
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Enclosures
- Electrical
- Stainless Steel
- Wallmount Enclosures
Hammond Manufacturing - EN4SD24248SSWH - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | EN4SD24248SSWH |
| Item Description | NEMA 4X Eclipse Enclosure, 24" x 24" x 8", 304 SS, Painted White |
| UNSPSC Code | 43223337 |
| Part Number | EN4SD24248SSWH |
| Series | Type 4X Painted White Stainless Steel Wallmount Enclosure (Eclipse Series) |
| Size H x W x D | 24 in x 24 in x 8 in (610 mm x 610 mm x 203 mm) |
| Shipping Weight | 57 lbs(25.85 kg) |
| UNSPSC | 39121324 |
| UPC | 623980411293 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
