Hammond Manufacturing GRDBAR19 | 19" Rack Mount Ground Busbar
Regular price
$80.16
Unit price
Brand: Hammond Manufacturing
|
SKU:
1010912
Regular price
$80.16
Unit price
Description
Description

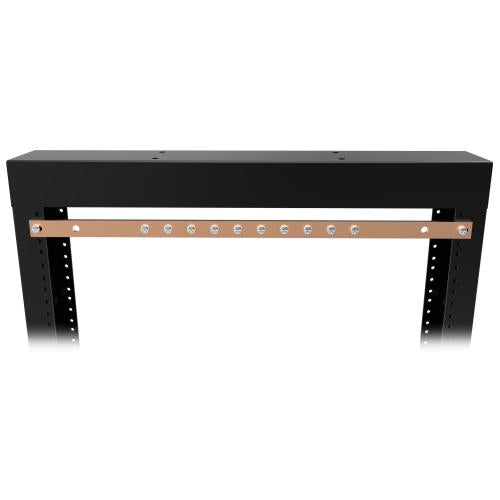

Hammond Manufacturing GRDBAR19 | 19" Rack Mount Ground Busbar
The GRDBAR19 is a 19" rack-mountable grounding busbar made from heavy-gauge copper and includes pre-drilled and tapped holes for #10-32 screws (included). It provides a central grounding point inside enclosures, open-frame racks, or cabinets. The horizontal mounting design fits standard EIA racks. Ensures safe, consolidated grounding for networking and electrical equipment.
Hammond Manufacturing - GRDBAR19 - Features
- The GRDBAR Series comes in vertical, horizontal mounting as well as horizontal rack mounting.
- The grounding bar is made from heavy-gauge copper that attaches to the inside of an enclosure, cabinet or open frame rack to provide consolidated equipment grounds.
- Ground points have been drilled and tapped to accommodate a #10-32 screw (included).
- Use with our Bonding Wire Kits to bond your equipment to the busbar.
- HME Busbar Specifications:
- Constructed of Solid 0.125” Copper with 10-32 drilled and tapped holes and
- 1-0.312 main ground point.
- Mounts directly to grid straps or frame mounting surface.
- Busbar kit includes (quantities depend on product)
- ?1x Copper
- Busbar
- 10-32 x 0.5 Screws
- Flat Washers
- ?
- Rack Mount Busbar Specifications:
- Available in both 19 and 23 inch rack mounting widths.
- Constructed of Solid 0.188” Copper Bar
- Includes ten (10) 10-32 drilled and tapped holes spaced at one (1) inch.
- Includes two (2)
- Ø 0.31 ground lug holes.
- Mounts directly to EIA mounting rails.
- Busbar kit includes:
- ?1x Copper
- Busbar
- 10x 10-32 x 0.375" Screws
- 2x 10-32 x 0.625" Screws
- 2x 12-24 x 0.625" Screws
- 2x 0.25" Flat Washers
- 12x #10 Flat Washers
- 1x Instruction bulletin
Specifications
Specifications
Hammond Manufacturing - GRDBAR19 - Product Categories
- Hardware
- Electrical Supplies
- Grounding and Bonding
- Electrical
- Modular
Hammond Manufacturing - GRDBAR19 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | GRDBAR19 |
| Item Description | 19" Rack Mount Ground Busbar |
| UNSPSC Code | 39121400 |
| Part Number | GRDBAR19 |
| Series | Copper Bonding Busbar (GRDBAR Series) |
| Shipping Weight | 1.1 lbs(0.50 kg) |
| UNSPSC | 39121117 |
| UPC | 623980935003 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
