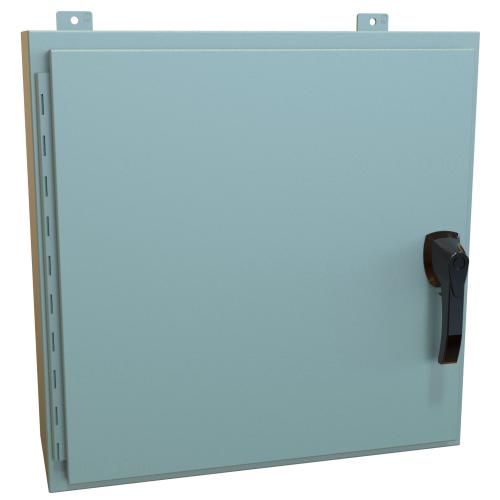

Hammond Manufacturing HW24248GYHK | NEMA 4/12 Wallmount Enclosure with Handle, Hinged, 24" x 24" x 8", Steel/Gray
The HW24248GYHK is a 24" x 24" x 8" wall-mount enclosure featuring a hinged door with handle for easy access. Made from steel with a gray finish, it is rated UL 508A and CSA Type 3R, 4, and 12. The design offers protection against rain, dust, and splashing liquids. Ideal for indoor or sheltered outdoor control and distribution applications. Provides both durability and accessibility.
Hammond Manufacturing - HW24248GYHK - Features
- Standards
- UL 508A Type 3R, 4 and 12
- CSA Type 3R, 4 and 12
- Complies with
- NEMA 3R, 4, 12 and 13
- IEC 60529, IP 66
- Construction
- Formed 14 gauge steel bodies and doors.
- Continuously welded seams ground smooth.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- Powder coated black zinc diecast pad lockable handle with 3 point roller latching system secures door.
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Seamless poured-in place gasket.
- Collar studs provided for mounting inner panel.
- Bonding stud provided on door and grounding stud installed in enclosure.
- Finish
- Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating interior and exterior.
Specifications
Specifications
Hammond Manufacturing - HW24248GYHK - Applications
- Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.
- Ideal for processing plants, utility, outdoor municipal or petro chemical locations where easy yet secure access is required.
Hammond Manufacturing - HW24248GYHK - Product Categories
- Security
- Intrusion Detection
- Intrusion Modules
- Electrical
- Mild Steel
- Wallmount Enclosures
Hammond Manufacturing - HW24248GYHK - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | HW24248GYHK |
| Item Description | NEMA 4/12 Wallmount Enclosure with Handle, Hinged, 24" x 24" x 8", Steel/Gray |
| Type | Enclosures |
| UNSPSC Code | 46171600 |
| Part Number | HW24248GYHK |
| Series | Type 4 Mild Steel Wallmount Enclosure (HWHK Series) |
| Size H x W x D | 24 in x 24 in x 8 in (610 mm x 610 mm x 203 mm) |
| Shipping Weight | 65 lbs(29.48 kg) |
| UNSPSC | 39121324 |
| UPC | 623980058054 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
