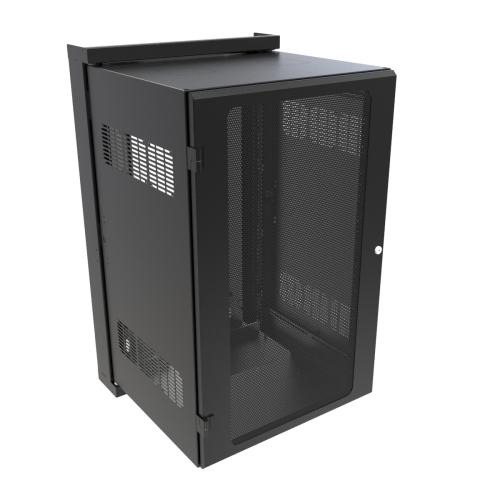

Hammond Manufacturing HWM2420U20BK | 20U 24"W x 25.7"D Swing-Out Wall Cabinet with Vented Door

Hammond Manufacturing - HWM2420U20BK - Features

• Available in two (2) depths and four (4) heights.
• Available with either a locking vented 63% perforated front door or a locking acrylic window front door.
• Heavy-duty spring-hinge pin for easy installation and removal.
• Body can be installed to swing from left to right or right to left.
• Each cabinet side includes six (6) fan grills allowing for active airflow as required.
• Rear section features:
• The side of the rear section includes 2.50” and 2.00” knockouts.
• The top and bottom of the rear section include 3.00", 2.00”, 1.38”, and 1.12” knockouts.
• Generous cable management lances are located on the rear section and mounting rails.
• Mounting points for outlet strips.
• Heavy-duty keyhole for wall mounting.
• Large opening in the rear for cable access. NOTE: Pole mounting requires a back plate (sold separately - see tables for part info).
• The front locking door and center section are keyed the same (optional secondary key available to provide additional security).
• Includes one (1) pair of 10-32 threaded rack rails with support for additional optional rails (see accessory table).
• Starter pack of SCREW1032-50 screws.
• 14-gauge welded rear section; 16-gauge center section and doors.
• EIA-compliant adjustable depth mounting rails.
• Grounding lugs are located on the top and bottom of the door, center, and rear sections.
• UL Listed 2416 load rated to 350 lbs (158 kg).
• Seismic rated up to 200 lbs (90.72 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, and ASCE 7-10.
• Finished in sand-textured RAL9005 black or textured RAL9003 white powder coat. Complies with the Greenguard guidelines for indoor air quality.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
• Are you pole-mounting the HWM?
• We offer rear-pan panel for post mounting, to fill the rear cutout.
