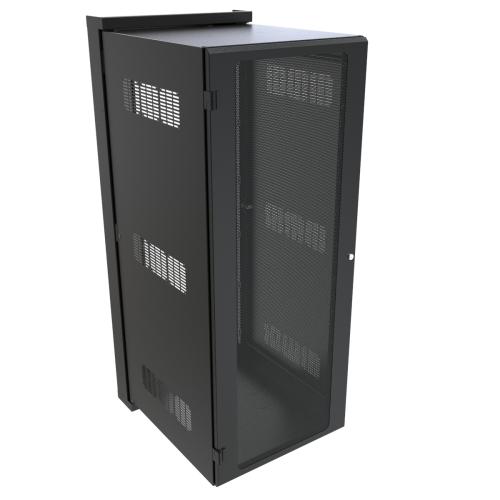

Hammond Manufacturing HWM2432U26BK | 32U Swing-Out Wall Cabinet with Vented Door, 24"W x 31.7"D
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing HWM2432U26BK | 32U Swing-Out Wall Cabinet wit...
Description
Description
The HWM2432U26BK is a 32U swing-out wall cabinet designed for secure network or AV equipment mounting. With a 24" width and 31.7" depth, it features a locking front door available in vented or acrylic options. Heavy-duty spring hinge pins allow quick and easy door removal and reinstallation. Designed for environments requiring easy rear access to cabling. A strong and flexible solution for IT infrastructure.
The HWM Wall-Mount Cabinet offers a secure, swing-out storage solution for ICT equipment that is easy to install. With its sleek design, security features, and optional fan kits, it is perfect for public spaces or equipment rooms with limited floor space.
Hammond Manufacturing - HWM2432U26BK - Features
- Available in two (2) depths and four (4) heights.
- Available with either a locking vented 63% perforated front door or a locking acrylic window front door.
- Heavy-duty spring-hinge pin for easy installation and removal.
- Body can be installed to swing from left to right or right to left.
- Each cabinet side includes six (6) fan grills allowing for active airflow as required.
- Rear section features:
- The side of the rear section includes 2.50” and 2.00” knockouts.
- The top and bottom of the rear section include 3.00", 2.00”, 1.38”, and 1.12” knockouts.
- Generous cable management lances are located on the rear section and mounting rails.
- Mounting points for outlet strips.
- Heavy-duty keyhole for wall mounting.
- Large opening in the rear for cable access. NOTE: Pole mounting requires a back plate (sold separately - see tables for part info).
- The front locking door and center section are keyed the same (optional secondary key available to provide additional security).
- Includes one (1) pair of 10-32 threaded rack rails with support for additional optional rails (see accessory table).
- Starter pack of SCREW1032-50 screws.
- 14-gauge welded rear section; 16-gauge center section and doors.
- EIA-compliant adjustable depth mounting rails.
- Grounding lugs are located on the top and bottom of the door, center, and rear sections.
- UL Listed 2416 load rated to 350 lbs (158 kg).
- Seismic rated up to 200 lbs (90.72 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, and ASCE 7-10.
- Finished in sand-textured RAL9005 black or textured RAL9003 white powder coat. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
- Are you pole-mounting the HWM?
- We offer rear-pan panel for post mounting, to fill the rear cutout.
Specifications
Specifications
Hammond Manufacturing - HWM2432U26BK - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Wall Mount Racks and Cabinets
- Wall Mount Server Rack Cabinets
Hammond Manufacturing - HWM2432U26BK - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | HWM2432U26BK |
| Item Description | 32U Swing-Out Wall Cabinet with Vented Door, 24"W x 31.7"D |
| UNSPSC Code | 24102001 |
| Part Number | HWM2432U26BK |
| Series | Heavy-Duty Swing-Out Wall Mount Cabinet (HWM Series) |
| Size H x W x D | 62.75 in x 24.68 in x 31.7 in (1,594 mm x 627 mm x 805 mm) |
| Shipping Weight | 196 lbs(88.90 kg) |
| UNSPSC | 43223306 |
| UPC | 623980777832 |
| UL File # | E474597 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 32 |
| Rack Type | Enclosed Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
