Hammond Manufacturing HWM2432U26WH | 32U Vented Swing-Out Wall Cabi...
Description
Description

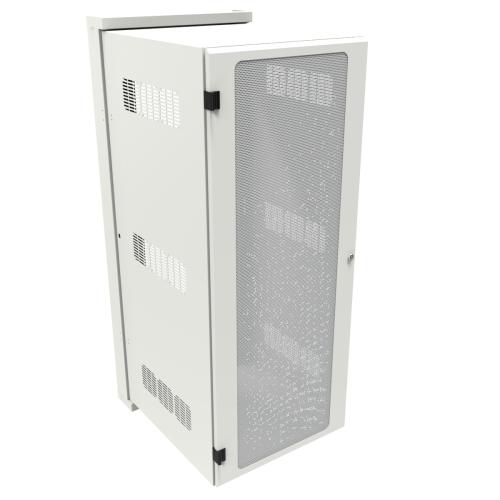

The HWM2432U26WH is a 32U swing-out wall cabinet featuring a 31" depth and strong steel construction. Available in multiple depths and heights, this enclosure includes either a locking 63% perforated vented front door or a locking acrylic window door. It offers excellent airflow and secure front access. A heavy-duty spring hinge pin system enables easy door installation and removal. Suitable for networking and AV equipment installations.
The HWM Wall-Mount Cabinet offers a secure, swing-out storage solution for ICT equipment that is easy to install. With its sleek design, security features, and optional fan kits, it is perfect for public spaces or equipment rooms with limited floor space.
Hammond Manufacturing - HWM2432U26WH - Features
- Available in two (2) depths and four (4) heights.
- Available with either a locking vented 63% perforated front door or a locking acrylic window front door.
- Heavy-duty spring-hinge pin for easy installation and removal.
- Body can be installed to swing from left to right or right to left.
- Each cabinet side includes six (6) fan grills allowing for active airflow as required.
- Rear section features:
- The side of the rear section includes 2.50” and 2.00” knockouts.
- The top and bottom of the rear section include 3.00", 2.00”, 1.38”, and 1.12” knockouts.
- Generous cable management lances are located on the rear section and mounting rails.
- Mounting points for outlet strips.
- Heavy-duty keyhole for wall mounting.
- Large opening in the rear for cable access. NOTE: Pole mounting requires a back plate (sold separately - see tables for part info).
- The front locking door and center section are keyed the same (optional secondary key available to provide additional security).
- Includes one (1) pair of 10-32 threaded rack rails with support for additional optional rails (see accessory table).
- Starter pack of SCREW1032-50 screws.
- 14-gauge welded rear section; 16-gauge center section and doors.
- EIA-compliant adjustable depth mounting rails.
- Grounding lugs are located on the top and bottom of the door, center, and rear sections.
- UL Listed 2416 load rated to 350 lbs (158 kg).
- Seismic rated up to 200 lbs (90.72 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, and ASCE 7-10.
- Finished in sand-textured RAL9005 black or textured RAL9003 white powder coat. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
- Are you pole-mounting the HWM?
- We offer rear-pan panel for post mounting, to fill the rear cutout.
Specifications
Specifications
Hammond Manufacturing - HWM2432U26WH - Product Categories
- Security
- Electrified Door Hardware
- Electrified Door Locks
- Wall Mount Racks and Cabinets
- Wall Mount Server Rack Cabinets
Hammond Manufacturing - HWM2432U26WH - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | HWM2432U26WH |
| Item Description | 32U Vented Swing-Out Wall Cabinet, 31"D |
| UNSPSC Code | 46171500 |
| Part Number | HWM2432U26WH |
| Series | Heavy-Duty Swing-Out Wall Mount Cabinet (HWM Series) |
| Size H x W x D | 62.81 in x 24.68 in x 31.67 in (1,595 mm x 627 mm x 804 mm) |
| Shipping Weight | 198 lbs(89.81 kg) |
| UNSPSC | 43223306 |
| UPC | 623980019505 |
| UL File # | E474597 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
