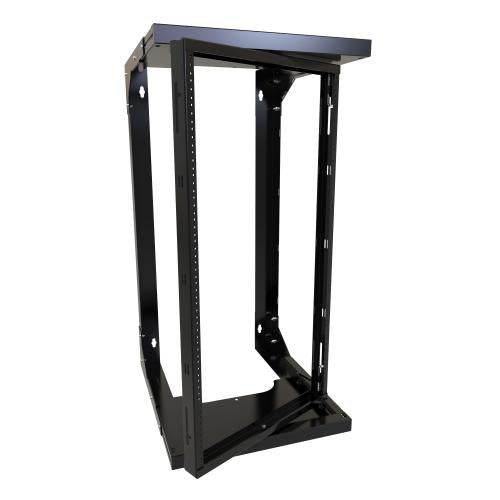

Hammond Manufacturing HWMR1920UBK | 20U Adjustable Depth Center Swing Wall Rack (18"-24")
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing HWMR1920UBK | 20U Adjustable Depth Center Swi...
Description
Description
The Hammond HWMR1920UBK 20U Center Swing Wall Rack is designed with 12-gauge steel braces and rack rails for strength, and 16-gauge steel for the rest of the body. The center-swing design allows the rack to pivot both left and right, providing full rear access without increasing the footprint. With adjustable depth from 18" to 24", EIA-compliant 10-32 tapped rails, and unit indicators, this rack supports flexible, high-capacity installations.
The Hammond Wall Mount Rack (HWMR) series was designed to easily mount network equipment in IT environments with limited floor space. Unlike similar racks, Hammond has integrated both depth adjustment and center swing capabilities in one rugged open rack system. Available in 12U, 20U, 24U and 32U rack unit options, the HWMR can easily adjust in depth from eighteen to twenty-four inches to accommodate a wide range of equipment sizes.
Hammond Manufacturing - HWMR1920UBK - Features
- Braces and rack rails are constructed of 12-gauge steel, while the other body components are constructed of 16-gauge steel.
- EIA compliant 10-32 tapped rails with 19” mounting and rack unit indicators.
- The rack frame swings (in both directions) at the center, providing convenient equipment access without exceeding the rack footprint.
- Adjustable depth using slots for easy set-up and adjusting.
- Overall depth from 18.0" to 24.0"
- Usable depth from 15.1" to 21.1"
- Top and Bottom rack units have a usable depth from 12.4" to 18.4" due to the angled rear bracket.
- Three (3) spring pin positions allow for simplified equipment maintenance.
- Side and rear cable access with multiple tie points for cable management.
- Finished in RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- Self-squaring design ships un-assembled (some assembly required).
- 220 lbs (100 kg) static load rating .
- TAA-compliant for GSA Schedule purchases.
- BAA/TAA-compliant documentation available upon request.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
- Included in the Box
- HWMR components and assembly hardware.
- Assembly bulletin.
- Wall mounting template for easy 16-inch center installation. (Wall mounting hardware not included)
- Starter pack of SCREW1032-50 screws.
- You might also like our RB-2PW Fixed Wall Rack .
- This product is not designed nor intended to be used for non-wall mounted applications.
Specifications
Specifications
Hammond Manufacturing - HWMR1920UBK - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Wall Mount Racks and Cabinets
- Wall Mount Racks
Hammond Manufacturing - HWMR1920UBK - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | HWMR1920UBK |
| Item Description | 20U Adjustable Depth Center Swing Wall Rack (18"-24") |
| Color | Black |
| Material | Steel |
| Mounting Width | 19" |
| Rack Units | 12U |
| Seismic Rating | No |
| Type | Wall-Mount |
| UNSPSC Code | 24102001 |
| Part Number | HWMR1920UBK |
| Series | Adjustable Depth Center Swing Wall Rack (HWMR Series) |
| Size H x W x D | 40.5 in x 20 in x 24 in (1,029 mm x 508 mm x 610 mm) |
| Shipping Weight | 52 lbs(23.59 kg) |
| UNSPSC | 43223308 |
| UPC | 623980522562 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 20 |
| Rack Type | Open Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
