Hammond Manufacturing N1A24247 | NEMA 1 Enclosure with Panel, 24" x 24" x 7", Steel/Gray
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing N1A24247 | NEMA 1 Enclosure with Panel, 24&qu...
Description
Description

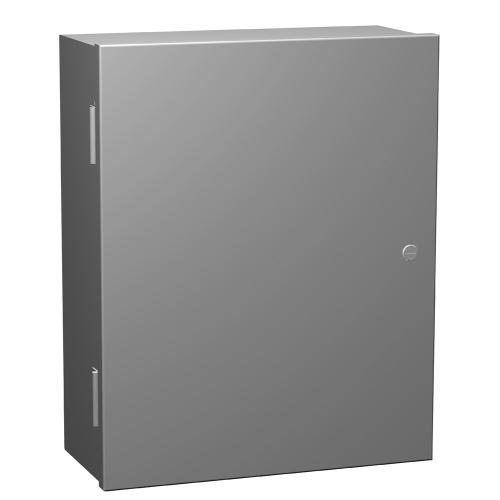

The Hammond N1A24247 NEMA 1 enclosure with panel measures 24" x 24" x 7" and is built from durable steel with a gray finish. Ideal for housing electrical and electronic controls, this enclosure is designed for indoor use where protection from dust, light, and indirect splashing is required. It complies with UL 50 and CSA Type 1 standards, ensuring dependable performance in light industrial environments. Includes a removable steel back panel for easy component mounting.
Hammond Manufacturing - N1A24247 - Features
- Standards
- UL 50 Type 1
- CSA Type 1
- Complies with
- NEMA Type 1
- IEC 60529, IP20
- Construction
- Enclosure is formed and spot welded from 12 or 14 gauge steel.
- Removable 12 or 14 gauge inner panel is mounted in the rear of the enclosure on collar studs.
- Removable door is mounted on slip hinges.
- Door is fastened with a slotted quarter turn latch; doors 30” and higher are provided with two latches.
- A bonding stud is provided on the door and a grounding stud is provided in the box.
- Mounting holes are provided in the rear of the enclosure.
- Piano hinge on 12 gauge units.
- Finish
- Enclosure and door are finished in ANSI 61 gray powder coating.
- Inner panel is finished in white powder coating.
Specifications
Specifications
Hammond Manufacturing - N1A24247 - Applications
- Designed for indoor use to house controls, instruments and components not requiring oil-tight or dust-tight protection.
Hammond Manufacturing - N1A24247 - Product Categories
- Industrial
- Electrical Enclosures
- Electrical Enclosures
- Electrical
- Commercial
- Panel Enclosures
Hammond Manufacturing - N1A24247 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | N1A24247 |
| Item Description | NEMA 1 Enclosure with Panel, 24" x 24" x 7", Steel/Gray |
| Cover Type | Hinged |
| Material | Steel (Mild) |
| Nema Rating | Type 1 |
| UNSPSC Code | 24102001 |
| Part Number | N1A24247 |
| Series | Type 1 Mild Steel Wallmount Enclosure (N1A Series) |
| Size H x W x D | 24 in x 24 in x 7 in (610 mm x 610 mm x 178 mm) |
| Shipping Weight | 56 lbs(25.40 kg) |
| UNSPSC | 39121324 |
| UPC | 623980280967 |
| UL File # | E71072 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
