Brand: Hammond Manufacturing
|
SKU:
889993

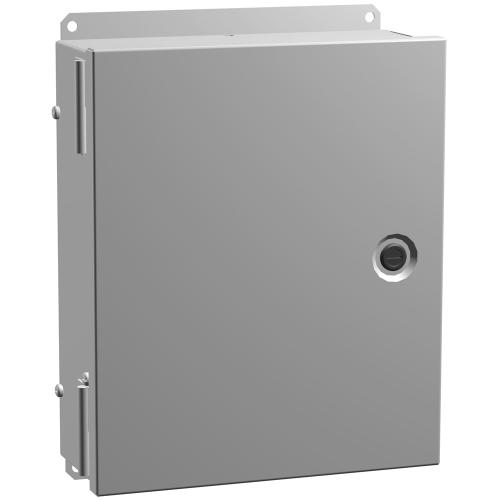

Hammond Manufacturing N1WS16124 | NEMA 1 Surface Mount Enclosure, 16" x 12" x 4", Steel, Gray
Regular price
$192.62
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing N1WS16124 | NEMA 1 Surface Mount Enclosure, 1...
Regular price
$192.62
Unit price
Brand: Hammond Manufacturing
|
SKU:
889993
Regular price
$192.62
Unit price
Shipping calculated at checkout.
Description
Description
Hammond Manufacturing N1WS16124 | NEMA 1 Surface Mount Enclosure, 16" x 12" x 4", Steel, Gray
The N1WS16124 surface-mount steel enclosure is designed for indoor use, protecting components from limited amounts of dust or debris. With dimensions of 16" x 12" x 4", it’s ideal for general-purpose control or terminal applications. Standards: UL 50 Type 1, CSA Type 1.
Hammond Manufacturing - N1WS16124 - Features
- Standards
- UL 50 Type 1
- CSA Type 1
- Complies with
- NEMA Type 1
- IEC 60529, IP20
- Construction
- Three piece assembly consisting of a base, wrapper, and door.
- Components are attached and secured with metal screws.
- 14 gauge reverse formed base acts as mounting surface (no separate inner panel) and provides clearance for mounting hardware.
- Wrapper is available in three depths: 4", 6", and 8".
- Wrapper is formed from 16 gauge steel, with no knock-outs in the sides.
- Door assembly formed from 16 gauge steel.
- Removable door is mounted on slip hinges.
- A bonding stud is provided on the door and a grounding screw is provided for the enclosure.
- Door is fastened with a slotted quarter turn latch.
- Finish
- Base, wrapper and door are finished in ANSI 61 gray powder coating.
Specifications
Specifications
Hammond Manufacturing - N1WS16124 - Applications
- Designed for indoor use to enclose controls, instruments, and components which do not require oil-tight or dust-tight protection.
- Ideal for applications where components may be easily mounted and wired prior to installation of wrapper and door.
Hammond Manufacturing - N1WS16124 - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Electrical
- Commercial
- Panel Enclosures
Hammond Manufacturing - N1WS16124 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | N1WS16124 |
| Item Description | NEMA 1 Surface Mount Enclosure, 16" x 12" x 4", Steel, Gray |
| UNSPSC Code | 24102001 |
| Part Number | N1WS16124 |
| Series | Type 1 Mild Steel 3 Piece Wallmount Enclosure (N1W S Series) |
| Size H x W x D | 16 in x 12 in x 4 in (406 mm x 305 mm x 102 mm) |
| Shipping Weight | 14 lbs(6.35 kg) |
| UNSPSC | 39121324 |
| UPC | 623980416526 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
