Brand: Hammond Manufacturing
|
SKU:
889994

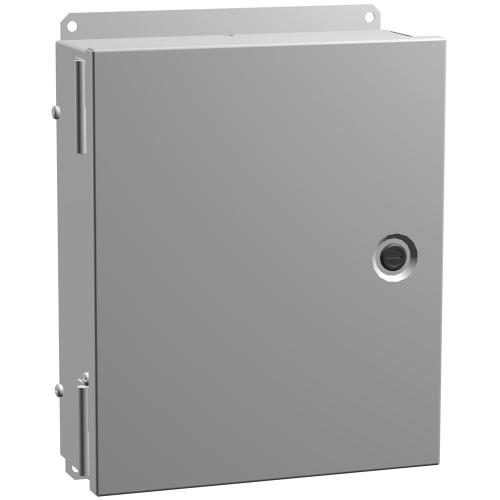

Hammond Manufacturing N1WS20164 | NEMA 1 Surface Mount Enclosure, 20" x 16" x 4", Steel/Gray
Regular price
$288.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing N1WS20164 | NEMA 1 Surface Mount Enclosure, 2...
Regular price
$288.83
Unit price
Brand: Hammond Manufacturing
|
SKU:
889994
Regular price
$288.83
Unit price
Shipping calculated at checkout.
Description
Description
Hammond Manufacturing N1WS20164 | NEMA 1 Surface Mount Enclosure, 20" x 16" x 4", Steel/Gray
The N1WS20164 wallmount enclosure is made of steel and finished in gray, measuring 20" x 16" x 4". Rated for NEMA Type 1, it complies with UL 50 and CSA Type 1 standards. Designed for indoor applications where basic protection against dust and contact is required. Ideal for utility, telecom, or light-duty control equipment.
Hammond Manufacturing - N1WS20164 - Features
- Standards
- UL 50 Type 1
- CSA Type 1
- Complies with
- NEMA Type 1
- IEC 60529, IP20
- Construction
- Three piece assembly consisting of a base, wrapper, and door.
- Components are attached and secured with metal screws.
- 14 gauge reverse formed base acts as mounting surface (no separate inner panel) and provides clearance for mounting hardware.
- Wrapper is available in three depths: 4", 6", and 8".
- Wrapper is formed from 16 gauge steel, with no knock-outs in the sides.
- Door assembly formed from 16 gauge steel.
- Removable door is mounted on slip hinges.
- A bonding stud is provided on the door and a grounding screw is provided for the enclosure.
- Door is fastened with a slotted quarter turn latch.
- Finish
- Base, wrapper and door are finished in ANSI 61 gray powder coating.
Specifications
Specifications
Hammond Manufacturing - N1WS20164 - Applications
- Designed for indoor use to enclose controls, instruments, and components which do not require oil-tight or dust-tight protection.
- Ideal for applications where components may be easily mounted and wired prior to installation of wrapper and door.
Hammond Manufacturing - N1WS20164 - Product Categories
- Security
- Intrusion Detection
- Contacts
- Electrical
- Commercial
- Panel Enclosures
Hammond Manufacturing - N1WS20164 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | N1WS20164 |
| Item Description | NEMA 1 Surface Mount Enclosure, 20" x 16" x 4", Steel/Gray |
| Mounting | Surface Mount |
| UNSPSC Code | 46171600 |
| Part Number | N1WS20164 |
| Series | Type 1 Mild Steel 3 Piece Wallmount Enclosure (N1W S Series) |
| Size H x W x D | 20 in x 16 in x 4 in (508 mm x 406 mm x 102 mm) |
| Shipping Weight | 20 lbs(9.07 kg) |
| UNSPSC | 39121324 |
| UPC | 623980416557 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | Box |
