Brand: Hammond Manufacturing
|
SKU:
983119

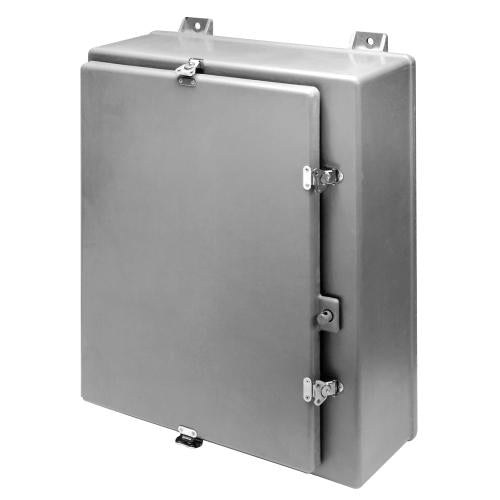

Hammond Manufacturing PHW30247 | NEMA 4X Wallmount Enclosure, 30" x 24" x 7", Fiberglass
Regular price
$2,467.25
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing PHW30247 | NEMA 4X Wallmount Enclosure, 30&qu...
Regular price
$2,467.25
Unit price
Brand: Hammond Manufacturing
|
SKU:
983119
Regular price
$2,467.25
Unit price
Shipping calculated at checkout.
Description
Description
Hammond Manufacturing PHW30247 | NEMA 4X Wallmount Enclosure, 30" x 24" x 7", Fiberglass
Designed for harsh environments, this NEMA 4X-rated enclosure offers protection from dust, water, and corrosion. Molded from fiberglass reinforced polyester for durability. UL 508A and CSA rated for multiple environmental conditions. Ideal for indoor or outdoor installations. Compatible with electrical and control components.
Hammond Manufacturing - PHW30247 - Features
- Standards
- UL 508A 1, 3, 3R, 4, 4X, 12
- CSA 1, 3, 3R, 4, 4X, 12
- Complies with
- NEMA 1, 3, 3R, 4, 4X, 12
- IEC 60529, IP 66
- Construction
- Compression molded, fiberglass reinforced polyester.
- Memory retaining, continuous door gasket standard.
- Molded in panel mounting inserts (except where noted).
- Integral mounting feet.
- Stainless steel hardware.
- Padlocking provision.
- Stainless steel butterfly type "twist latch" door fasteners.
- Ported with a continuous hinge.
- For corrosion resistance information, please refer to table in the Technical Information section.
- Finish
- Fiberglass reinforced material is finished in light gray.
Specifications
Specifications
Hammond Manufacturing - PHW30247 - Applications
- These enclosures are specially designed to accommodate electrical, electronic, instrumentation and mechanical controls indoors and outdoors.
- For use where corrosion resistant watertight enclosures are needed to provide protection against windblown dust and rain, splashing and hose directed water.
Hammond Manufacturing - PHW30247 - Product Categories
- Security
- Video Surveillance
- Video Accessories
- Electrical
- Non-Metallic
- Wallmount Enclosures
Hammond Manufacturing - PHW30247 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | PHW30247 |
| Item Description | NEMA 4X Wallmount Enclosure, 30" x 24" x 7", Fiberglass |
| UNSPSC Code | 31162308 |
| Part Number | PHW30247 |
| Series | Type 4X Polyester Wallmount Enclosure (PHW Series) |
| Size H x W x D | 33.41 in x 26.32 in x 8.81 in (849 mm x 669 mm x 224 mm) |
| Shipping Weight | 45 lbs(20.41 kg) |
| UNSPSC | 39121324 |
| UPC | 623980210544 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
