Brand: Hammond Manufacturing
|
SKU:
889998

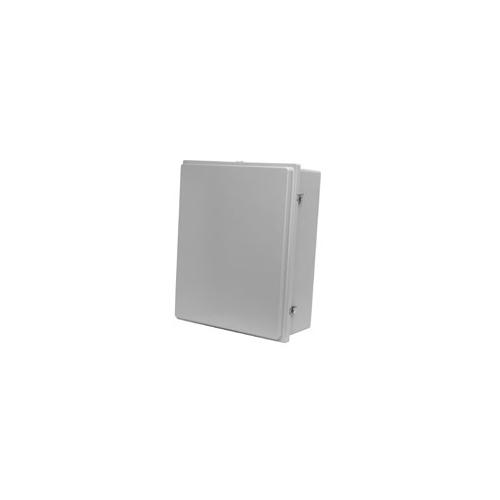

Hammond Manufacturing PJ24248RT | NEMA 4X Wallmount Enclosure, 24" x 24" x 8.13", Fiberglass
Regular price
$1,130.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing PJ24248RT | NEMA 4X Wallmount Enclosure, 24&q...
Regular price
$1,130.04
Unit price
Brand: Hammond Manufacturing
|
SKU:
889998
Regular price
$1,130.04
Unit price
Shipping calculated at checkout.
Description
Description
Hammond Manufacturing PJ24248RT | NEMA 4X Wallmount Enclosure, 24" x 24" x 8.13", Fiberglass
This fiberglass wallmount enclosure provides superior protection in corrosive and wet environments. Measures 24" x 24" x 8.13" and includes a solid, robust design. Standards: UL 508A Type 1, 2, 3, 4, 4X, 12, 13 and cUL per CSA 22.2 No. 94.
Hammond Manufacturing - PJ24248RT - Features
- Standards
- UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
- cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
- Complies with
- NEMA Type 1, 2, 3, 4, 4X, 12, & 13
- IEC 60529, IP66
- Construction
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
- Stainless steel draw type "twist latch" door fasteners.
- Door fasteners include a provision for padlocking.
- Enclosures are available with bonded polycarbonate viewing windows.
- Door is supported with a continuous stainless steel hinge.
- Captive oil resistant gasket provides a positive seal.
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
- Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
- For corrosion resistance information, please refer to table in the Technical Information section.
- Finish
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or fiberglass.
Specifications
Specifications
Hammond Manufacturing - PJ24248RT - Applications
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
Hammond Manufacturing - PJ24248RT - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Electrical
- Non-Metallic
- Junction Boxes
Hammond Manufacturing - PJ24248RT - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | PJ24248RT |
| Item Description | NEMA 4X Wallmount Enclosure, 24" x 24" x 8.13", Fiberglass |
| UNSPSC Code | 24102001 |
| Part Number | PJ24248RT |
| Series | Type 4X Polyester Junction Box w/ Raised Lid (Solid and Window) (PJ Series) |
| Size H x W x D | 24 in x 24 in x 8.13 in (610 mm x 610 mm x 207 mm) |
| Shipping Weight | 26 lbs(11.79 kg) |
| UNSPSC | 39121324 |
| UPC | 623980703459 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
