Brand: Hammond Manufacturing
|
SKU:
969407

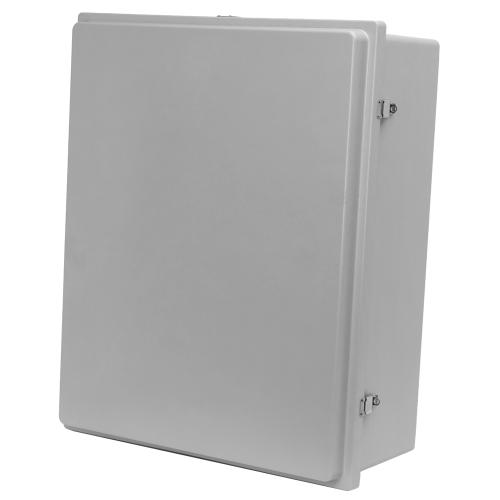

Hammond Manufacturing PJ30248RL | NEMA 4X Wallmount Enclosure, 30" x 24" x 8.13", Fiberglass
Regular price
$1,337.13
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing PJ30248RL | NEMA 4X Wallmount Enclosure, 30&q...
Regular price
$1,337.13
Unit price
Brand: Hammond Manufacturing
|
SKU:
969407
Regular price
$1,337.13
Unit price
Shipping calculated at checkout.
Description
Description
Hammond Manufacturing PJ30248RL | NEMA 4X Wallmount Enclosure, 30" x 24" x 8.13", Fiberglass
Hammond’s PJ30248RL is a 30" x 24" x 8.13" NEMA 4X wallmount enclosure made of fiberglass for corrosion resistance. It meets UL 508A and cUL standards for Types 1, 2, 3, 4, 4X, 12, and 13. Ideal for demanding environments where moisture, dust, or chemicals are present.
Hammond Manufacturing - PJ30248RL - Features
- Standards
- UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
- cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
- Complies with
- NEMA Type 1, 2, 3, 4, 4X, 12, & 13
- IEC 60529, IP66
- Construction
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- Standard JIC sizes under 18"x16".
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
- Stainless steel draw type "snap latch" door fasteners.
- Door fasteners include a provision for padlocking.
- Enclosures are available with bonded polycarbonate viewing windows.
- Door is supported with a continuous stainless steel hinge.
- Captive oil resistant gasket provides a positive seal.
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
- Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
- For corrosion resistance information, please refer to table in the Technical Information section.
- Finish
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or fiberglass.
Specifications
Specifications
Hammond Manufacturing - PJ30248RL - Applications
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
Hammond Manufacturing - PJ30248RL - Product Categories
- Security
- Video Surveillance
- Video Accessories
- Electrical
- Non-Metallic
- Junction Boxes
Hammond Manufacturing - PJ30248RL - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | PJ30248RL |
| Item Description | NEMA 4X Wallmount Enclosure, 30" x 24" x 8.13", Fiberglass |
| UNSPSC Code | 31162308 |
| Part Number | PJ30248RL |
| Series | Type 4X Polyester Junction Box w/ Raised Lid (Solid and Window) (PJ Series) |
| Size H x W x D | 30 in x 24 in x 8.13 in (762 mm x 610 mm x 207 mm) |
| Shipping Weight | 31 lbs(14.06 kg) |
| UNSPSC | 39121324 |
| UPC | 623980703220 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
