Brand: Hammond Manufacturing
|
SKU:
890001
Hammond Manufacturing PJU12106TF | NEMA 4X Solid Door Enclosure, Twist Latch with Flange, 12" x 10" x 6", Fiberglass
Regular price
$248.22
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing PJU12106TF | NEMA 4X Solid Door Enclosure, Tw...
Regular price
$248.22
Unit price
Brand: Hammond Manufacturing
|
SKU:
890001
Regular price
$248.22
Unit price
Shipping calculated at checkout.
Description
Description

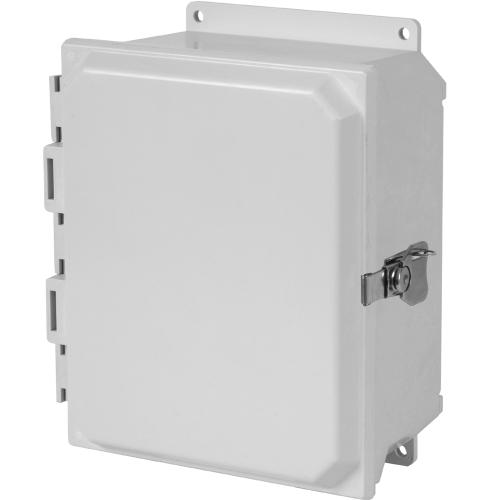

Hammond Manufacturing PJU12106TF | NEMA 4X Solid Door Enclosure, Twist Latch with Flange, 12" x 10" x 6", Fiberglass
Made from durable fiberglass with a solid door and twist latch for secure closure. Meets a wide range of industry standards including UL Type 1, 2, 3, 4, 4X, 12, 13 and CSA equivalents. Offers superior corrosion resistance for harsh environments.
Hammond Manufacturing - PJU12106TF - Features
- Standards
- UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
- cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
- Complies with
- NEMA Type 1, 2, 3, 4, 4X, 12 and 13
- IEC 60529, IP66
- Construction
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- Standard JIC sizes under 18" x 16".
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
- Stainless steel butterfly type "twist latch" door fasteners.
- Door fasteners include a provision for padlocking.
- Enclosure available with clear Polycarbonate cover to 16" x 14".
- Molded hinge with stainless steel pin.
- Captive oil resistant gasket provides a positive seal.
- Available with Polycarbonate flange or foot mount brackets for multi-directional mounting.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
- For corrosion resistance information, please refer to table in the Technical Information section.
- Finish
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.
Specifications
Specifications
Hammond Manufacturing - PJU12106TF - Applications
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
Hammond Manufacturing - PJU12106TF - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Electrical
- Non-Metallic
- Junction Boxes
Hammond Manufacturing - PJU12106TF - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | PJU12106TF |
| Item Description | NEMA 4X Solid Door Enclosure, Twist Latch with Flange, 12" x 10" x 6", Fiberglass |
| UNSPSC Code | 24102001 |
| Part Number | PJU12106TF |
| Series | Type 4X Polyester Junction Box (Solid and Clear Cover) (PJU Series) |
| Size H x W x D | 12.05 in x 10.27 in x 6.13 in (306 mm x 261 mm x 156 mm) |
| Shipping Weight | 7 lbs(3.18 kg) |
| UNSPSC | 39121324 |
| UPC | 623980020112 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
