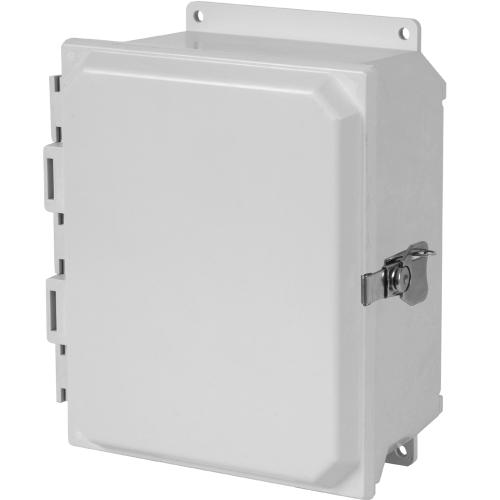

The PJU14126TF is a NEMA 4X solid door enclosure constructed from durable fiberglass, designed to withstand harsh industrial environments. It includes a twist latch and flange for secure closure and easy access. The enclosure meets UL 508A and cUL Type 1, 2, 3, 4, 4X, 12, and 13 standards, ensuring broad compliance across applications. With a size of 14" x 12" x 6", it is ideal for protecting electrical components from dust, water, and corrosion.
Hammond Manufacturing - PJU14126TF - Features
- Standards
- UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
- cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
- Complies with
- NEMA Type 1, 2, 3, 4, 4X, 12 and 13
- IEC 60529, IP66
- Construction
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- Standard JIC sizes under 18" x 16".
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
- Stainless steel butterfly type "twist latch" door fasteners.
- Door fasteners include a provision for padlocking.
- Enclosure available with clear Polycarbonate cover to 16" x 14".
- Molded hinge with stainless steel pin.
- Captive oil resistant gasket provides a positive seal.
- Available with Polycarbonate flange or foot mount brackets for multi-directional mounting.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
- For corrosion resistance information, please refer to table in the Technical Information section.
- Finish
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.
Specifications
Specifications
Hammond Manufacturing - PJU14126TF - Applications
- Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
Hammond Manufacturing - PJU14126TF - Product Categories
- Security
- Electrified Door Hardware
- Electric Strike
- Electrical
- Non-Metallic
- Junction Boxes
Hammond Manufacturing - PJU14126TF - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | PJU14126TF |
| Item Description | NEMA 4X Solid Door Enclosure with Twist Latch & Flange, 14" x 12" x 6", Fiberglass |
| Sales Category | Electric Strike Part |
| UNSPSC Code | 31162407 |
| Part Number | PJU14126TF |
| Series | Type 4X Polyester Junction Box (Solid and Clear Cover) (PJU Series) |
| Size H x W x D | 14.05 in x 12.27 in x 6.13 in (357 mm x 312 mm x 156 mm) |
| Shipping Weight | 9 lbs(4.08 kg) |
| UNSPSC | 39121324 |
| UPC | 623980020464 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
