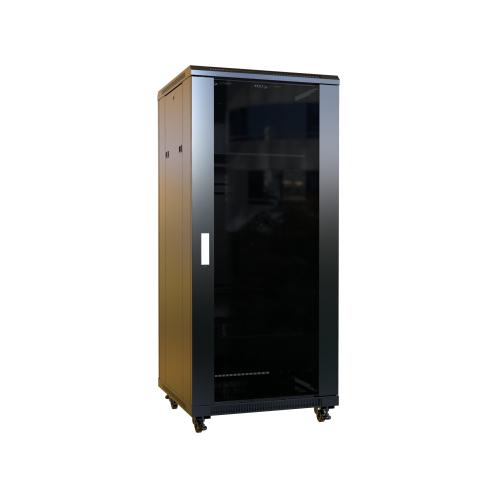

Hammond Manufacturing RB-AV27 | 27U AV Cabinet with Glass Door, 24"D
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing RB-AV27 | 27U AV Cabinet with Glass Door, 24&...
Description
Description
This 27U AV cabinet offers a secure, stylish solution for AV and IT gear. Constructed with passive cooling vents on all sides to promote airflow. Glass front door provides visibility while maintaining security. Available in matching 18U and 42U configurations. 24” depth supports a range of components.
The RB-AV Series is a cost-effective rack cabinet that is ideal for A/V and Security applications.
It features a welded steel frame, locking doors, locking removable panels, and pre-installed shelves. With adjustable leveling feet and casters, it supports both fixed and mobile installations. The cabinet includes ventilation options and the ability to add fans for cooling.
Hammond Manufacturing - RB-AV27 - Features
- Available in 18U, 27U, and 42U mounting heights.
- Available in 23.62" overall width and depth.
- Passive cooling vents are located on the top, bottom and sides.
- Includes top vents for up to two (2) optional fans on the top panel.
- Ships fully assembled and ready for installation on-site.
- Doors can be flipped to hinge from the opposite side.
- Constructed in 16-gauge steel.
- Drilled and 10-32 tapped flange 19" mounting rails are constructed in 13-gauge steel, and are powder coat finished.
- Rails easily adjust in-depth in 1/4" increments.
- 950 lbs (431 kg)
- Grounding studs bonded to frame, side panels and doors.
- Finished in smooth matte black powder paint.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- RoHS Compliant.
- Included Components
- Steel frame with factory-installed leveling feet recessed casters and grounding studs. Casters and leveling feet are removable.
- Two (2) pairs of adjustable depth EIA compliant 10-32 tapped mounting rails.
- Starter pack of (50) 10-32 screws included.
- One (1) lightly smoked tempered glass removable front door with a quarter-turn lock.
- One (1) solid removable steel rear door with a quarter-turn lock.
- Two (2) solid removable side panels with a quarter-turn lock.
- Two (2) 2U factory-installed vented rack shelves.
- Removable cable access panels on cabinet top and bottom.
- Part of the Rack Basics line of economy rack solutions.
Specifications
Specifications
Hammond Manufacturing - RB-AV27 - Product Categories
- Audio and Visual
- Furniture
- Credenzas
- Cabinets Server Racks
- Ships Assembled
Hammond Manufacturing - RB-AV27 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | RB-AV27 |
| Item Description | 27U AV Cabinet with Glass Door, 24"D |
| UNSPSC Code | 45110000 |
| Part Number | RB-AV27 |
| Series | Audio-Visual Cabinet (RB-AV Series) |
| Size H x W x D | 54.65 in x 23.63 in x 23.63 in (1,388 mm x 600 mm x 600 mm) |
| Shipping Weight | 174 lbs(78.93 kg) |
| UNSPSC | 43223306 |
| UPC | 623980810096 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 27 |
| Rack Type | Cabinet |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
