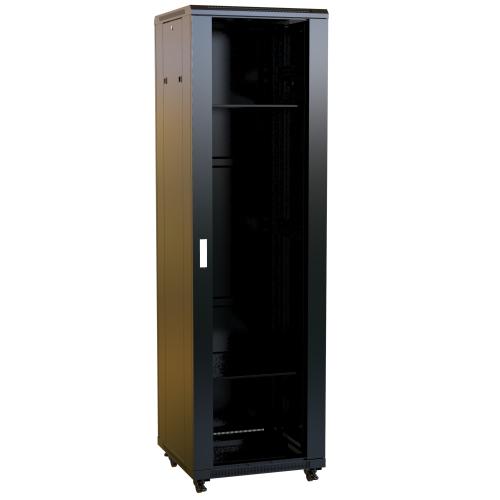

Hammond Manufacturing RB-AV42 | 42U AV Cabinet with Glass Door, 24&...
Description
Description
The RB-AV42 cabinet accommodates 42U of equipment with passive cooling vents for thermal management. Features a glass front door for visibility and access control. 23.62” wide by 24” deep for compatibility with most AV gear. Durable black finish. Optional accessories available.
The RB-AV Series is a cost-effective rack cabinet that is ideal for A/V and Security applications.
It features a welded steel frame, locking doors, locking removable panels, and pre-installed shelves. With adjustable leveling feet and casters, it supports both fixed and mobile installations. The cabinet includes ventilation options and the ability to add fans for cooling.
Hammond Manufacturing - RB-AV42 - Features
- Available in 18U, 27U, and 42U mounting heights.
- Available in 23.62" overall width and depth.
- Passive cooling vents are located on the top, bottom and sides.
- Includes top vents for up to two (2) optional fans on the top panel.
- Ships fully assembled and ready for installation on-site.
- Doors can be flipped to hinge from the opposite side.
- Constructed in 16-gauge steel.
- Drilled and 10-32 tapped flange 19" mounting rails are constructed in 13-gauge steel, and are powder coat finished.
- Rails easily adjust in-depth in 1/4" increments.
- 950 lbs (431 kg)
- Grounding studs bonded to frame, side panels and doors.
- Finished in smooth matte black powder paint.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- RoHS Compliant.
- Included Components
- Steel frame with factory-installed leveling feet recessed casters and grounding studs. Casters and leveling feet are removable.
- Two (2) pairs of adjustable depth EIA compliant 10-32 tapped mounting rails.
- Starter pack of (50) 10-32 screws included.
- One (1) lightly smoked tempered glass removable front door with a quarter-turn lock.
- One (1) solid removable steel rear door with a quarter-turn lock.
- Two (2) solid removable side panels with a quarter-turn lock.
- Two (2) 2U factory-installed vented rack shelves.
- Removable cable access panels on cabinet top and bottom.
- Part of the Rack Basics line of economy rack solutions.
Specifications
Specifications
Hammond Manufacturing - RB-AV42 - Product Categories
- Audio and Visual
- Furniture
- Credenzas
- Cabinets Server Racks
- Ships Assembled
Hammond Manufacturing - RB-AV42 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | RB-AV42 |
| Item Description | 42U AV Cabinet with Glass Door, 24"D |
| UNSPSC Code | 45110000 |
| Part Number | RB-AV42 |
| Series | Audio-Visual Cabinet (RB-AV Series) |
| Size H x W x D | 80.91 in x 23.63 in x 23.63 in (2,055 mm x 600 mm x 600 mm) |
| Shipping Weight | 282 lbs(127.91 kg) |
| UNSPSC | 43223306 |
| UPC | 623980810102 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 42 |
| Rack Type | Cabinet |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
