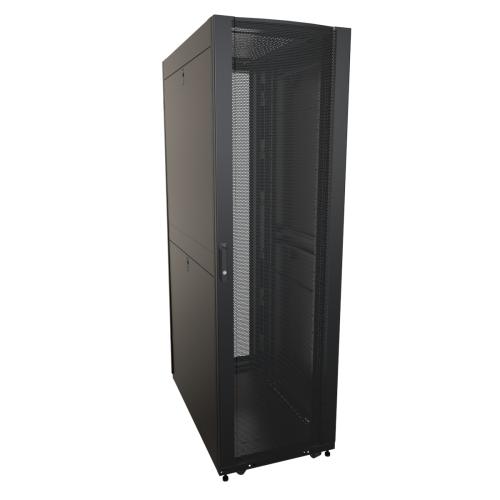

Hammond Manufacturing RB-DC4242 | 42U 24"W x 42"D Rack Basics Server Cabinet

Hammond Manufacturing - RB-DC4242 - Features

• Available in 24U and 42U mounting heights.
• Available in 42.74" overall depth.
• Surface-mounted doors allow full mounting depth utilization and include a locking swing handle.
• Included PDU cable trays for cable management and industry-standard vertical PDU installation.
• The top panel is easily removable for cable installation.
• Includes generous cable access with brushed cable entry.
• Includes fan venting compatible with FK fan kits.
• Includes three (3) 2U Rack panel cover panels.
• Ships with doors and rails fully assembled and ready for installation on-site. Side panels come packaged inside the cabinet for on-site installation.
• Front door swings open 165-degrees.
• The built-in joining kit speeds up the baying of multiple RB-DC cabinets within a row.
• Constructed in 16-gauge mild steel.
• Square hole mounting rails are constructed in 13-gauge mild steel, includes rack unit indicators, and are finished with a powder coat.
• Rails easily adjust in-depth in 1/4" increments.
• Tested to 2,200 lbs (1,000 kg) of equipment load. Rated for up to 300 lbs (136 kg) rolling caster load rating (including the weight of cabinet frame).
• Grounding studs bonded to the frame, side panels, and doors.
• Finished in textured black powder paint.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• RoHS Compliant.
• Included Components
• Steel frame with factory-installed leveling feet, recessed casters, and grounding studs.
• Two (2) pairs of adjustable depth EIA-compliant square hole punched mounting rails.
• Starter pack of (50) M6 screws, cage nuts, and washers included.
• One (1) perforated front door (63% open area vented) with a locking swing handle.
• One (1) perforated split/barn rear door (63% open area vented) with locking swing handle.
• Two (2) pairs of solid, split, locking, and removable side panels.
• One (1) removable vented top panel.
• Two (2) PDU cable trays are mounted in the rear.
• The bottom of the cabinet is open.
• Part of the Rack Basics line of value rack solutions.
• Inside Rear of Cabinet Includes (2) Tool less PDU Cable Trays for Cable Management and Industry Standard Vertical PDU Installation
• Cabinet Doors Feature a Minimum 65 Percent Airflow Perforation Pattern that Meets or Exceeds Equipment Manufacturer Requi rements
• Top Panel is Easily Removable for Cable Installation
• The Generous Cable Access Panels Make it Easy to Install Top Panel without Affecting Installed Cabling
• Built-In Joining Kit Speeds up Baying of Multiple RB-DC Cabinets within a Row
• RoHS Comiant
