Hammond Manufacturing RB-FW12 | 12U Fixed Wall Mount Cabinet
Regular price
$534.46
Unit price
Brand: Hammond Manufacturing
|
SKU:
630809
Regular price
$534.46
Unit price
Description
Description

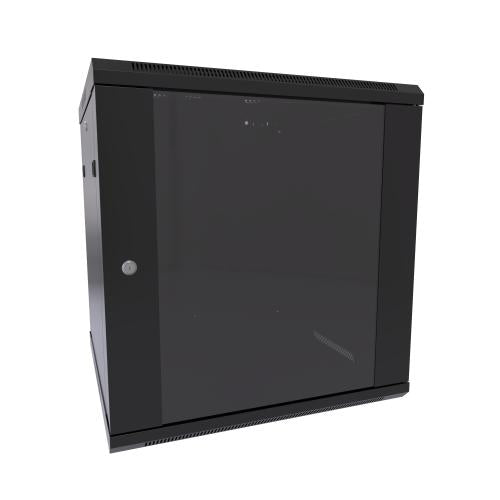

Hammond Manufacturing RB-FW12 | 12U Fixed Wall Mount Cabinet
The Hammond RB-FW12 is a 12U fixed wall mount cabinet constructed from light-duty 16-gauge steel, designed for secure and space-saving equipment installations. It includes two pairs of EIA-compliant 19" square-hole mounting rails for versatile gear compatibility. Ideal for small network or AV setups, it comes with a starter pack of 25 M6 screws, cage nuts, and washers. Its compact design is perfect for offices, telecom rooms, or confined environments.
Hammond Manufacturing - RB-FW12 - Features
- Constructed in light-duty 16-gauge steel.
- Includes two (2) pairs of EIA compliant 19-inch square hole mounting rails.
- Starter pack of (25) M6 screws, cage nuts and washers included.
- For 10-32 hardware, please see our CAGKIT Series .
- Rails are adjustable.
- Includes one (1) locking tempered glass reversible front door.
- Includes one (1) pair of locking removable side panels.
- The front and side of the frame include venting for airflow.
- Rear cable access.
- Provision for optional fans on the top panel.
- Ships unassembled - some assembly is required.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- Finished in black powder paint.
- 130 lbs (59 kg) of equipment load capacity.
- RoHS Compliant.
- Part of the Rack Basics line of value rack solutions.
Specifications
Specifications
Hammond Manufacturing - RB-FW12 - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Wall Mount Racks and Cabinets
- Wall Mount Server Rack Cabinets
Hammond Manufacturing - RB-FW12 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | RB-FW12 |
| Item Description | 12U Fixed Wall Mount Cabinet |
| Color | Black |
| Seismic Rating | No |
| Model | Mixed Use |
| Type | Wall-Mount |
| Material | Steel |
| Mounting Width | 19" |
| Rack Units | 12U |
| Multi-Compartment | No |
| Nema Rating | No Nema Rating |
| Overall Height | Greater Than 2’ To 3’ |
| Overall Width | Greater Than 1’ To 2’ |
| Rail Style | Tapped |
| UNSPSC Code | 24102001 |
| Part Number | RB-FW12 |
| Series | Fixed Wall Mount Cabinet (RB-FW Series) |
| Size H x W x D | 25 in x 23.63 in x 23.63 in (635 mm x 600 mm x 600 mm) |
| Shipping Weight | 63.93 lbs(29.00 kg) |
| UNSPSC | 43223306 |
| UPC | 623980046327 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 12 |
| Rack Type | Enclosed Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Square Hole with M5 Cage Nuts |
