Brand: Hammond Manufacturing
|
SKU:
670863
Hammond Manufacturing RB-SW12 | 12U Swing-Out Wall Mount Cabinet
Regular price
$534.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hammond Manufacturing RB-SW12 | 12U Swing-Out Wall Mount Cabinet
Regular price
$534.46
Unit price
Brand: Hammond Manufacturing
|
SKU:
670863
Regular price
$534.46
Unit price
Shipping calculated at checkout.
Description
Description

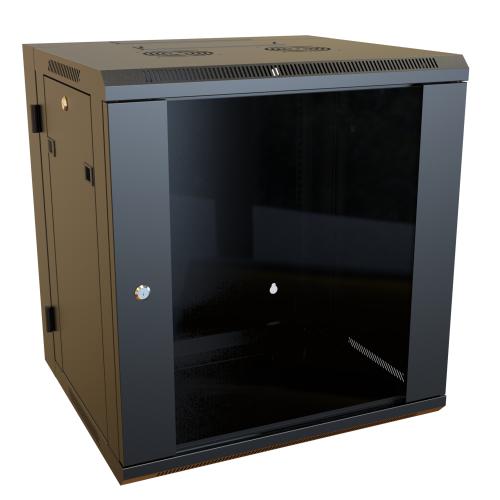

Hammond Manufacturing RB-SW12 | 12U Swing-Out Wall Mount Cabinet
Hammond’s RB-SW12 is a 12U swing-out wall mount cabinet constructed of 16-gauge steel, ideal for lightweight networking gear. Its double-hinged body swings open to 120°, offering full rear access for maintenance and cabling. Includes two pairs of square-hole punched EIA rails for 19" mounting. A compact and efficient solution for installations in tight or wall-mounted locations.
Hammond Manufacturing - RB-SW12 - Features
- Double-hinged for easy rear access (body swings open to 120°).
- Constructed in light-duty 16-gauge steel.
- Includes two (2) pairs of EIA compliant square hole punched rails with 19” mounting.
- Starter pack of (25) M6 screws and cage nuts included.
- For 10-32 hardware, see our CAGKIT Series .
- Rails are adjustable.
- Includes one (1) locking tempered glass reversible front door (hinged on the right side as standard).
- Includes one (1) pair of locking removable side panels.
- The front and side of the frame include venting for airflow.
- Top, bottom and rear cable access.
- Provision for optional fans on the top panel.
- The middle body section is not reversible and hinges on the left side.
- Ships assembled - ready to install.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- Finished in black powder paint.
- 130 lbs (59 kg) of equipment load capacity.
- RoHS Compliant.
- Part of the Rack Basics line of value rack solutions.
Specifications
Specifications
Hammond Manufacturing - RB-SW12 - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Wall Mount Racks and Cabinets
- Wall Mount Server Rack Cabinets
Hammond Manufacturing - RB-SW12 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | RB-SW12 |
| Item Description | 12U Swing-Out Wall Mount Cabinet |
| Airflow | Front-To-Rear |
| Color | Black |
| Seismic Rating | No |
| Type | Wall-Mount |
| Material | Steel |
| Overall Depth | Greater Than 1’ To 2’ |
| Mounting Width | 19" |
| Rack Units | 12U |
| Multi-Compartment | No |
| Nema Rating | No Nema Rating |
| Overall Width | Greater Than 1’ To 2’ |
| UNSPSC Code | 24102001 |
| Part Number | RB-SW12 |
| Series | Swing-Out Wall Mount Cabinet (RB-SW Series) |
| Size H x W x D | 25 in x 23.63 in x 21.65 in (635 mm x 600 mm x 550 mm) |
| Shipping Weight | 70 lbs(31.75 kg) |
| UNSPSC | 43223306 |
| UPC | 623980046358 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 12 |
| Rack Type | Enclosed Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Square Hole with M5 Cage Nuts |
