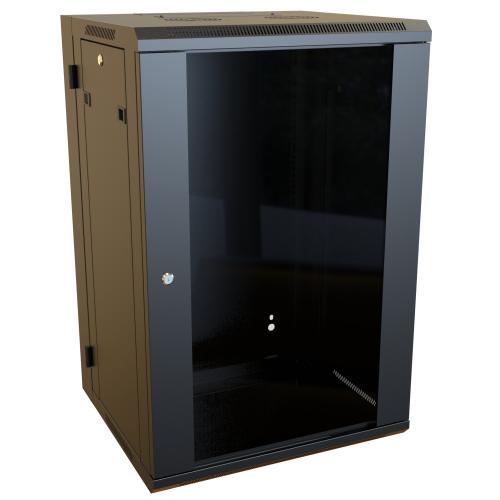

Hammond Manufacturing RB-SW18 | 18U Swing-Out Wall Mount Cabinet
The RB-SW18 is an 18U swing-out wall mount cabinet from Hammond designed for light-duty applications. Constructed from 16-gauge steel, it features a double-hinged design allowing the body to swing open 120° for easy rear access. It includes two pairs of EIA-compliant square hole rails for 19" equipment mounting. Ideal for telecommunications, networking, and small data center applications.
Hammond Manufacturing - RB-SW18 - Features
- Double-hinged for easy rear access (body swings open to 120°).
- Constructed in light-duty 16-gauge steel.
- Includes two (2) pairs of EIA compliant square hole punched rails with 19” mounting.
- Starter pack of (25) M6 screws and cage nuts included.
- For 10-32 hardware, see our CAGKIT Series .
- Rails are adjustable.
- Includes one (1) locking tempered glass reversible front door (hinged on the right side as standard).
- Includes one (1) pair of locking removable side panels.
- The front and side of the frame include venting for airflow.
- Top, bottom and rear cable access.
- Provision for optional fans on the top panel.
- The middle body section is not reversible and hinges on the left side.
- Ships assembled - ready to install.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- Finished in black powder paint.
- 130 lbs (59 kg) of equipment load capacity.
- RoHS Compliant.
- Part of the Rack Basics line of value rack solutions.
Specifications
Specifications
Hammond Manufacturing - RB-SW18 - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Wall Mount Racks and Cabinets
- Wall Mount Server Rack Cabinets
Hammond Manufacturing - RB-SW18 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | RB-SW18 |
| Item Description | 18U Swing-Out Wall Mount Cabinet |
| Airflow | Front-To-Rear |
| Color | Black |
| Seismic Rating | No |
| Type | Wall-Mount |
| Material | Steel |
| Overall Depth | Greater Than 1’ To 2’ |
| Mounting Width | 19" |
| Rack Units | 19U |
| Multi-Compartment | No |
| Nema Rating | No Nema Rating |
| Overall Width | Greater Than 1’ To 2’ |
| UNSPSC Code | 24102001 |
| Part Number | RB-SW18 |
| Series | Swing-Out Wall Mount Cabinet (RB-SW Series) |
| Size H x W x D | 35.43 in x 23.63 in x 21.65 in (900 mm x 600 mm x 550 mm) |
| Shipping Weight | 88 lbs(39.92 kg) |
| UNSPSC | 43223306 |
| UPC | 623980046372 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 18 |
| Rack Type | Enclosed Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Square Hole with M5 Cage Nuts |
