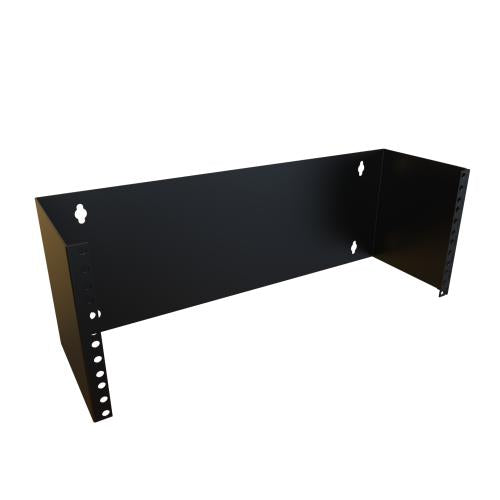

Hammond Manufacturing RB-WR4 | 4U Fixed Depth Wall Bracket, 6" Depth
The RB-WR4 is a 4U fixed-depth wall bracket from Hammond, offering a compact 6" depth and hinged access for convenience. Constructed for light-duty use, it's available in 1U, 2U, and 4U sizes to suit varying installation needs. The hinged feature enables easy maintenance and cabling from the rear without removing the equipment. Perfect for small equipment installations in confined spaces.
Hammond Manufacturing - RB-WR4 - Features
- Available in 1U, 2U, and 4U mounting heights.
- It is hinged for easy rear access to devices.
- Fixed depth of 6 inches.
- Constructed in 16-gauge steel.
- Round hole 19" mounting rails are constructed in 16-gauge steel.
- Includes ten CLPKIT10-32-10 black rack screws with washers and clip nuts.
- Up to 50 lbs (22 kg) static load rating .
- Finished in RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for GSA Schedule purchases.
- BAA/TAA-compliant documentation available upon request.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
- Part of the Rack Basics line of economy rack solutions
Specifications
Specifications
Hammond Manufacturing - RB-WR4 - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Wall Mount Racks and Cabinets
- Wall Mount Racks
Hammond Manufacturing - RB-WR4 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | RB-WR4 |
| Item Description | 4U Fixed Depth Wall Bracket, 6" Depth |
| Color | Black |
| Material | Steel |
| Mounting Width | 19" |
| Seismic Rating | No |
| Type | Wall-Mount |
| UNSPSC Code | 24102001 |
| Part Number | RB-WR4 |
| Series | Economy Fixed Depth Wall Rack (RB-WR Series) |
| Size H x W x D | 7.12 in x 19.36 in x 6 in (181 mm x 492 mm x 152 mm) |
| Shipping Weight | 5.1 lbs(2.31 kg) |
| UNSPSC | 43223308 |
| UPC | 623980777993 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 4 |
| Rack Type | Open Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Tapped 10-32 |
