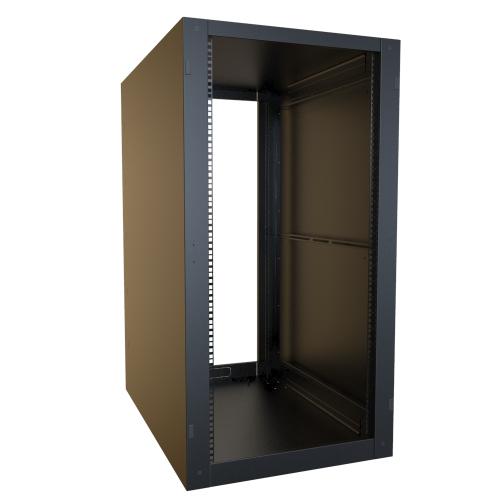

Hammond Manufacturing RCSC1904236BK1 | 24U Knockdown Server Cabinet...
Description
Description
Constructed from 16-gauge steel with tool-less assembly. Includes two pairs of adjustable square-hole rails and RU markings. Ships with starter pack of screws and cage nuts.
The RCSC Rack Cabinet is ideal for AV, IT, and Homelab setups, offering a stacking design to expand up to three cabinets. It includes adjustable sliding rails, punch-outs for cables and cooling, and comes in various sizes. The stacking feature accommodates configurations of up to three (3) 12U or two (2) 24U cabinets. The RCSC is a solid choice for small to medium-sized businesses, with the ability to scale as your space and needs grow.
Hammond Manufacturing - RCSC1904236BK1 - Features
- Constructed in 16-gauge steel.
- Includes two (2) pairs of infinitely adjustable 19” EIA compliant square-hole mounting rails with rack unit markings.
- Starter pack of CAGKIT1032-25 screws and cage nuts included with 12U units.
- Starter pack of CAGKIT1032-50 screws and cage nuts included with 24U units.
- Four (4) embosses are included with support for optional levelling feet or casters.
- Grounding studs are provided on the body.
- The top and bottom of the RCSC include two (2) laser knockouts (per side) for cable-entry or fans (includes gasket strip material).
- Includes a laser knockout rear gland plate for floor-level cable entry.
- Self-squaring design ships un-assembled (some assembly required).
- Mounting rails are infinitely adjustable in-depth and are fabricated of heavy-duty 14-gauge steel, painted smooth black.
- Optional doors are available in solid, tinted acrylic with venting (see above-left) and high airflow vented.
- Snap-in hinges can be mounted without having to bolt on from inside the cabinet. In addition, the hinges can be mounted on the left or right.
- High airflow perforated doors for both the front and rear of the cabinet are suggested for most server applications.
- Perforated doors meet server manufacturer Free-Air-Ratio (FAR) requirements at 63%.
- For 36” depth cabinet side panels include cable entry knockouts.
- 1,500 lbs (680 kg) static load rating .
- Finished in textured RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for GSA Schedule purchases. BAA/TAA-compliant documentation available upon request.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Specifications
Specifications
Hammond Manufacturing - RCSC1904236BK1 - Product Categories
- Security
- Access Control
- Power Supplies
- Cabinets Server Racks
- Assembly Required
Hammond Manufacturing - RCSC1904236BK1 - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | RCSC1904236BK1 |
| Item Description | 24U Knockdown Server Cabinet, 36" Deep |
| UNSPSC Code | 43211700 |
| Part Number | RCSC1904236BK1 |
| Series | Server Rack Cabinet (RCSC Series) |
| Size H x W x D | 46 in x 24 in x 36 in (1,168 mm x 610 mm x 914 mm) |
| Shipping Weight | 158 lbs(71.67 kg) |
| UNSPSC | 43223306 |
| UPC | 623980041094 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 24 |
| Rack Type | Cabinet |
| Paint Color | RAL9005 Black |
| Rail Type | Square Hole with 10-32 Cage Nu |
