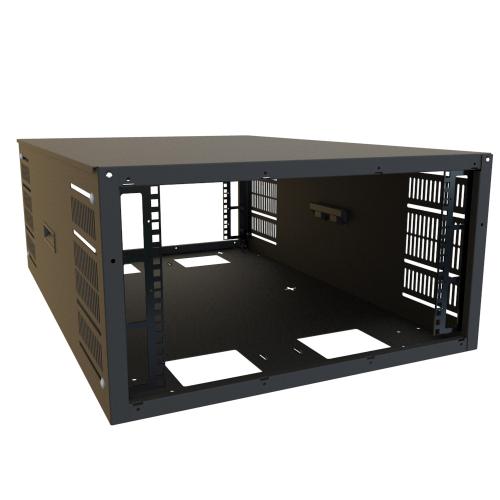

Hammond Manufacturing SDC246U36BK | 6U Multi-Use Cabinet, 24"W...
Description
Description
The SDC246U36BK multi-use cabinet supports 6U of rackmount equipment and measures 24"W x 36"D. Available in multiple heights and depths, it offers flexible installation for varied space needs. Adjustable 19" mounting rail slots allow customizable rail positioning or fan installation. Ideal for small IT rooms, AV closets, or utility spaces. Combines storage, ventilation, and cable management in one compact design.
The SDC Series is a multi-purpose rack with a variety of mounting options for equipment racks. It's perfect for securing rack-mount equipment in areas where space for a standard rack or cabinet is restricted or non-existent. The modular design features a body with a variety of attachment options to fit your specific needs.
Hammond Manufacturing - SDC246U36BK - Features
- Available in 3U, 6U and 9U mounting heights.
- Available in 17.5", 24.5", 31.5" and 36" overall depths.
- 19" Mounting rail slots allow for adjustable depth rails and/or optional fan installation.
- Mounting rails are easily removed for non-rack mounting equipment.
- Starter pack of CAGKIT1032-10 screws and cage nuts included with 3U units or CAGKIT1032-50 screws and cage nuts included with 6U & 9U units.
- Removable cover panel for ease of equipment installation.
- Four (4) cutouts are included, which are ideal for mounting above an electrical receptacle and/or cable entry.
- Interior cable management lances.
- Removable plastic handles for side mounting storage.
- Optional surface mounted doors with quarter-turn lock and end cap available.
- Cabinet frame, removable cover and doors constructed in 16-gauge steel.
- Square hole 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are finished in smooth black powder paint.
- Suggest static load rating .
- Wall Mount (Rack Mounted) up to 150 lbs (68 kg).
- Wall Mount (Rails removed) up to 50 lbs (22 kg).
- Ceiling/ Under Desk Mount up to 150 lbs (68 kg).
- Freestanding (with or without casters) up to 800 lbs (362 kg).
- Grounding studs are provided on the frame as well as side panels and doors.
- Finished in sand textured RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
- Optional Accessory Features
- Locking Vented Door
- includes a quarter turn-key lock. The 63% perforation provides airflow for either the front and/or rear of the frame.
- Locking Solid Door
- includes a quarter turn-key lock.
- Locking Cable/Fan Door
- includes two openings for rear cable entry that maintain security while allowing cables to enter the cabinet. The door also includes laser knockouts for optional fan kits .
- Conduit/Fan Panel
- mounts directly to either end of the cabinet providing secure mounting of 2.5”, 2.0”, 13/18”, 13/4”, 11/8” and/or 7/8” conduit knockouts. Also includes laser knockouts for optional fan kits
Specifications
Specifications
Hammond Manufacturing - SDC246U36BK - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Wall Mount Racks and Cabinets
- Wall Mount Racks
Hammond Manufacturing - SDC246U36BK - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | SDC246U36BK |
| Item Description | 6U Multi-Use Cabinet, 24"W x 36"D |
| UNSPSC Code | 24102001 |
| Part Number | SDC246U36BK |
| Series | Wall or Floor Rack Cabinet (SDC Series) |
| Size H x W x D | 12.72 in x 24 in x 36 in (323 mm x 610 mm x 914 mm) |
| Shipping Weight | 56 lbs(25.40 kg) |
| UNSPSC | 43223306 |
| UPC | 623980955728 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 6 |
| Rack Type | Enclosed Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Square Hole with 10-32 Cage Nu |
