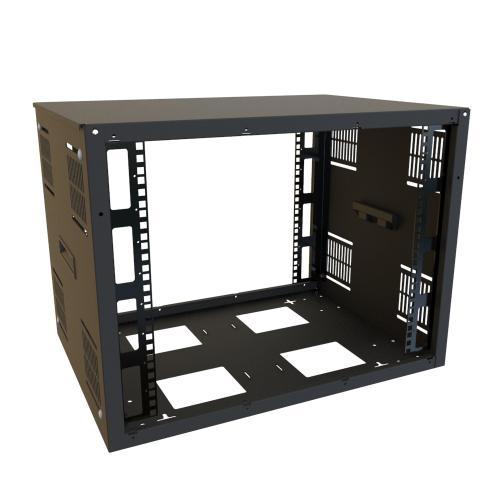

Hammond Manufacturing SDC249U17BK | 9U Multi-Use Cabinet, 24"W...
Description
Description
Versatile 9U cabinet for housing various IT or AV equipment. Adjustable-depth 19” mounting rails allow customization to your installation needs. Optional fans can be added to enhance airflow. Compact footprint fits in space-limited areas. Available in multiple depths up to 36".
The SDC Series is a multi-purpose rack with a variety of mounting options for equipment racks. It's perfect for securing rack-mount equipment in areas where space for a standard rack or cabinet is restricted or non-existent. The modular design features a body with a variety of attachment options to fit your specific needs.
Hammond Manufacturing - SDC249U17BK - Features
- Available in 3U, 6U and 9U mounting heights.
- Available in 17.5", 24.5", 31.5" and 36" overall depths.
- 19" Mounting rail slots allow for adjustable depth rails and/or optional fan installation.
- Mounting rails are easily removed for non-rack mounting equipment.
- Starter pack of CAGKIT1032-10 screws and cage nuts included with 3U units or CAGKIT1032-50 screws and cage nuts included with 6U & 9U units.
- Removable cover panel for ease of equipment installation.
- Four (4) cutouts are included, which are ideal for mounting above an electrical receptacle and/or cable entry.
- Interior cable management lances.
- Removable plastic handles for side mounting storage.
- Optional surface mounted doors with quarter-turn lock and end cap available.
- Cabinet frame, removable cover and doors constructed in 16-gauge steel.
- Square hole 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are finished in smooth black powder paint.
- Suggest static load rating .
- Wall Mount (Rack Mounted) up to 150 lbs (68 kg).
- Wall Mount (Rails removed) up to 50 lbs (22 kg).
- Ceiling/ Under Desk Mount up to 150 lbs (68 kg).
- Freestanding (with or without casters) up to 800 lbs (362 kg).
- Grounding studs are provided on the frame as well as side panels and doors.
- Finished in sand textured RAL9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for GSA Schedule purchases.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
- Optional Accessory Features
- Locking Vented Door
- includes a quarter turn-key lock. The 63% perforation provides airflow for either the front and/or rear of the frame.
- Locking Solid Door
- includes a quarter turn-key lock.
- Locking Cable/Fan Door
- includes two openings for rear cable entry that maintain security while allowing cables to enter the cabinet. The door also includes laser knockouts for optional fan kits .
- Conduit/Fan Panel
- mounts directly to either end of the cabinet providing secure mounting of 2.5”, 2.0”, 13/18”, 13/4”, 11/8” and/or 7/8” conduit knockouts. Also includes laser knockouts for optional fan kits
Specifications
Specifications
Hammond Manufacturing - SDC249U17BK - Product Categories
- Hardware
- Racks And Cabinets
- Racks, Cabinets, Frames and Enclosures
- Wall Mount Racks and Cabinets
- Wall Mount Racks
Hammond Manufacturing - SDC249U17BK - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | SDC249U17BK |
| Item Description | 9U Multi-Use Cabinet, 24"W x 17.5"D |
| UNSPSC Code | 24102001 |
| Part Number | SDC249U17BK |
| Series | Wall or Floor Rack Cabinet (SDC Series) |
| Size H x W x D | 17.97 in x 24 in x 17.5 in (456 mm x 610 mm x 445 mm) |
| Shipping Weight | 42 lbs(19.05 kg) |
| UNSPSC | 43223306 |
| UPC | 623980955742 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Rack Units | 9 |
| Rack Type | Enclosed Wall Rack |
| Paint Color | RAL9005 Black |
| Rail Type | Square Hole with 10-32 Cage Nu |
