Hammond Manufacturing SDC9UVD | 9U SDC Vented Door
Regular price
$112.74
Unit price
Brand: Hammond Manufacturing
|
SKU:
890016
Regular price
$112.74
Unit price
Description
Description

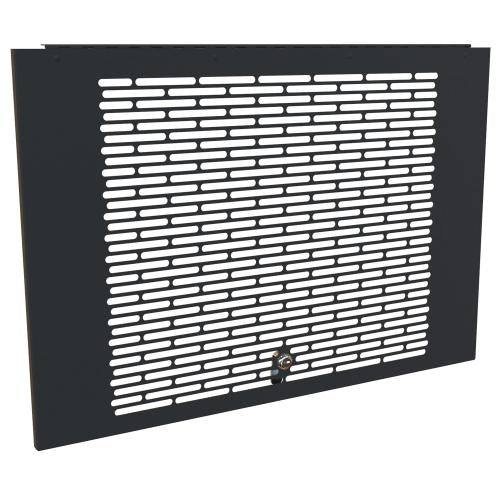

Hammond Manufacturing SDC9UVD | 9U SDC Vented Door
The Hammond SDC9UVD is a 9U vented door designed for use with SDC Series cabinets. Constructed from 16-gauge steel, it includes a quarter-turn lock and hinge set for secure, easy access. Installation hardware is included, allowing for quick upgrades to improve ventilation and protection for installed equipment.
Hammond Manufacturing - SDC9UVD - Features
- Constructed in 16-gauge steel.
- Easily installs into SDC Series using the included hardware.
- Includes quarter-turn lock and hinges to mount on the cabinet.
- Door Options solid door, 63% Vented Door, cable Entry/Fan Door.
- An additional non-door option is the conduit/fan Panel that mounts directly to either end of the cabinet.
- Conduit knockouts include 2.5”, 2.0”, 13/18”, 13/4”, 11/8” and/or 7/8”.
- Also includes laser knockouts for optional fan kits .
- Finished in textured RAL9005 black powder paint coat.
- Complies with the Greenguard guidelines for indoor air quality.
- TAA-compliant for GSA Schedule purchases.
- RoHS and REACH compliant.
- Manufactured in North America.
Specifications
Specifications
Hammond Manufacturing - SDC9UVD - Product Categories
- Security
- Intrusion Detection
- Contacts
- Rack Accessories
- Rack Cabinet Doors and Door Accessories
Hammond Manufacturing - SDC9UVD - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | SDC9UVD |
| Item Description | 9U SDC Vented Door |
| Mounting | Overhead Door |
| UNSPSC Code | 46171600 |
| Part Number | SDC9UVD |
| Series | SDC Doors (SDCD Series) |
| Size H x W x D | 17 in x 24.59 in x 0.5 in (432 mm x 625 mm x 13 mm) |
| Shipping Weight | 6 lbs(2.72 kg) |
| UNSPSC | 43201618 |
| UPC | 623980955575 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
