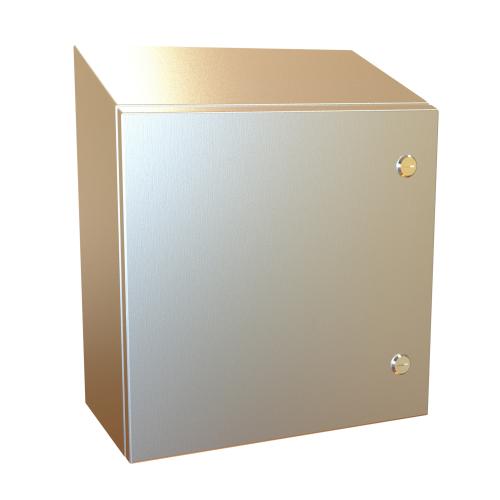

Hammond Manufacturing ST161608SS | NEMA 4X Eclipse Slope Top Enclosure, 16" x 16" x 8", 304 Stainless Steel

Hammond Manufacturing - ST161608SS - Features

• Standards
• UL 508A Type 3R, 4, 4X and 12
• CSA Type 3R, 4, 4X and 12
• Mounting foot kit required to maintain UL/CSA external mounting requirements.
• Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
• Complies with
• NEMA 3R, 4, 4X, 12 and 13
• IEC 60529, IP 66
• Construction
• Formed 14 gauge 304 stainless steel.
• Continuously welded seams ground smooth.
• Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
• Please note that several smaller sizes of this series will no longer feature C channel stiffener/door brackets – see drawing for details. Removing this feature allows for more usable door space.
• Inventory will take some time to be converted to the new design.
• Note: If desired, the C channel door brackets can be added as a special order modification.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
• Doors may be easily removed for modifications and are interchangeable.
• Seamless poured-in place gasket.
• Collar studs provided for mounting inner panel.
• Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
• Bonding stud provided on door and grounding stud installed in enclosure.
• Hinges are 304 stainless.
• Stainless steel hinge pins and quarter turns.
• Door alignment guide provided on 36" wide enclosures.
• Finish
• Cover and enclosure are natural stainless steel with a smooth brushed finish.
