Hammond Manufacturing VFMMD6BK | 6"W x 24"D Vertical Fing...
Description
Description

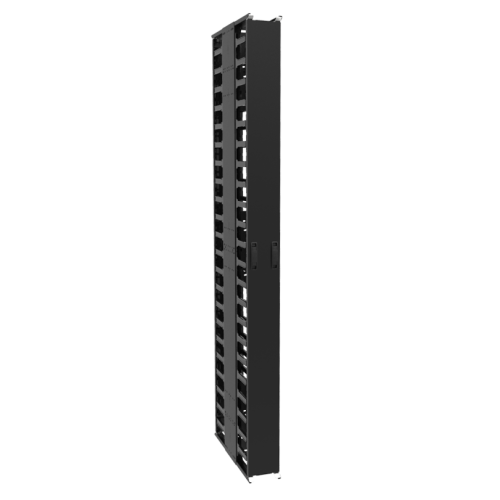

The VFMMD6BK vertical finger cable manager measures 6” wide by 24.5” deep, optimized for high-density cabling in network and server racks. Includes a reversible slam-latch door with a pinch-trigger handle for secure yet easy access. Designed for vertical installations, it maintains cable integrity and improves airflow. Available in multiple widths including 6", 8", 10", and 12" to accommodate various cabling needs. Perfect for managing structured cabling in data centers and IT closets.
Hammond Manufacturing - VFMMD6BK - Features
- Sturdy, reversible steel slam-latch door/cover with pinch-trigger handle included.
- Available in 6”, 8”, 10” or 12” widths.
- All versions are 24.5" in depth for maximum fill rates.
- The VFM is unique that it features a metal finger spaced at 2RU with clip-on plastic finger guards (shipped loose) for a cable 1.25” bend radius.
- Provides support for high-density cable bundles and heavy gauge cables.
- Each manager comes with two openings for cable pass-thru.
- Includes cable mounting lances for hook and loop cable organization.
- Compatible with DNRRHDW, DC4R, DRZ4, RB-2P and RB-2PA Series of open frame racks. See the compatibility chart below.
- Use the optional riser base VFMB2BK and VFMB3BK for easier installation and manager support.
- We strongly recommend you use our rack bolt-down kit when mounting large cable managers.
- Hardware included for securing to rack.
- Optional inner and side panel, spool, and cable divider accessories are available.
- Finished in a textured black powder paint finish.
- TAA-compliant for GSA Schedule purchases.
- RoHS and REACH compliant.
- Manufactured in North America.
Specifications
Specifications
Hammond Manufacturing - VFMMD6BK - Product Categories
- Industrial
- Electrical Enclosures
- Electrical Enclosures
- Rack Accessories
- Cable Managers
Hammond Manufacturing - VFMMD6BK - Specifications
| Brand Name | Hammond Manufacturing Co |
|---|---|
| Manufacturer Number | VFMMD6BK |
| Item Description | 6"W x 24"D Vertical Finger Cable Manager |
| UNSPSC Code | 24102001 |
| Part Number | VFMMD6BK |
| Series | Server Rack Finger Double-Sided Cable Manager (VFM Series) |
| Size H x W x D | 81 in x 6 in x 24.5 in (2,057 mm x 152 mm x 622 mm) |
| Shipping Weight | 82 lbs(37.19 kg) |
| UNSPSC | 43223305 |
| UPC | 623980660578 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
