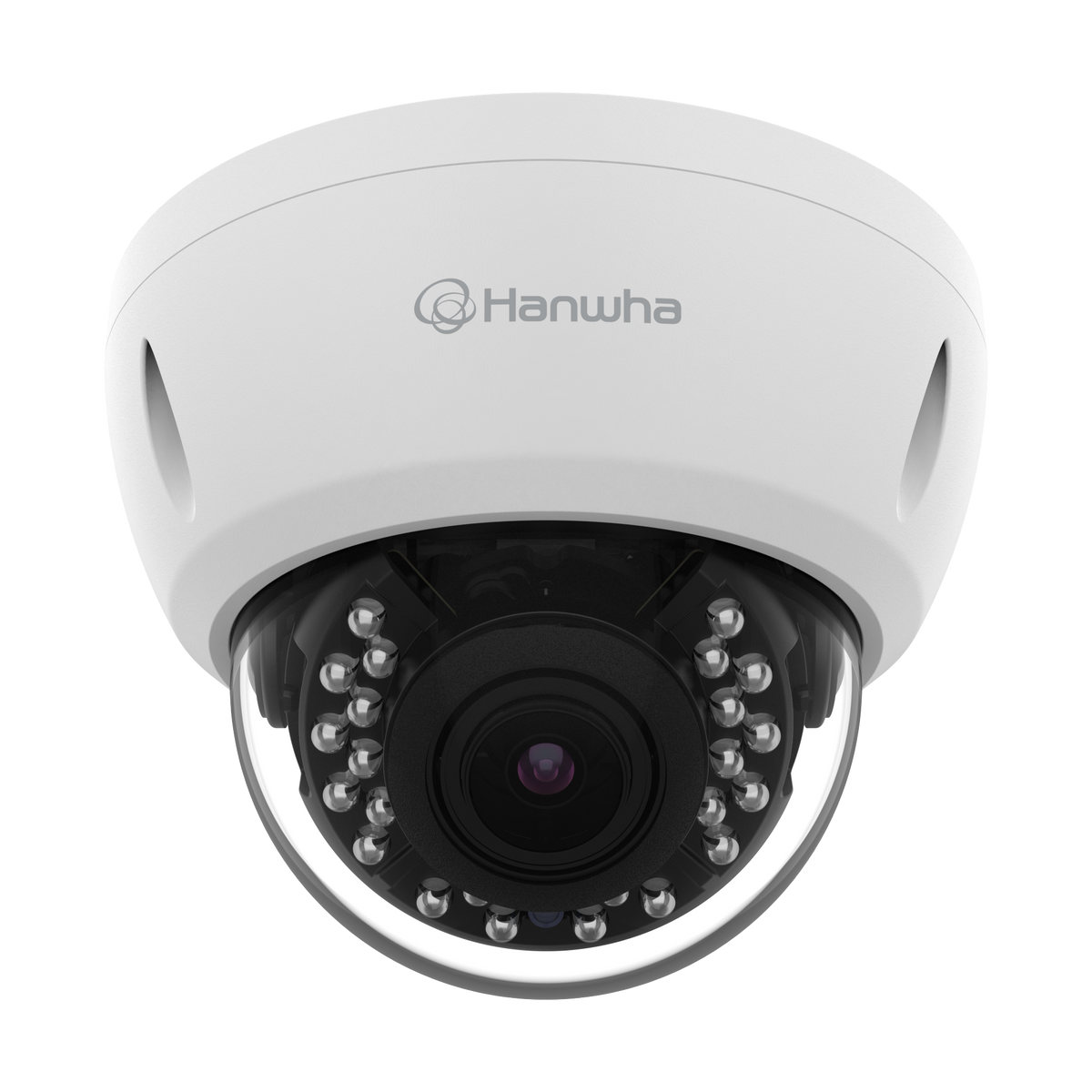

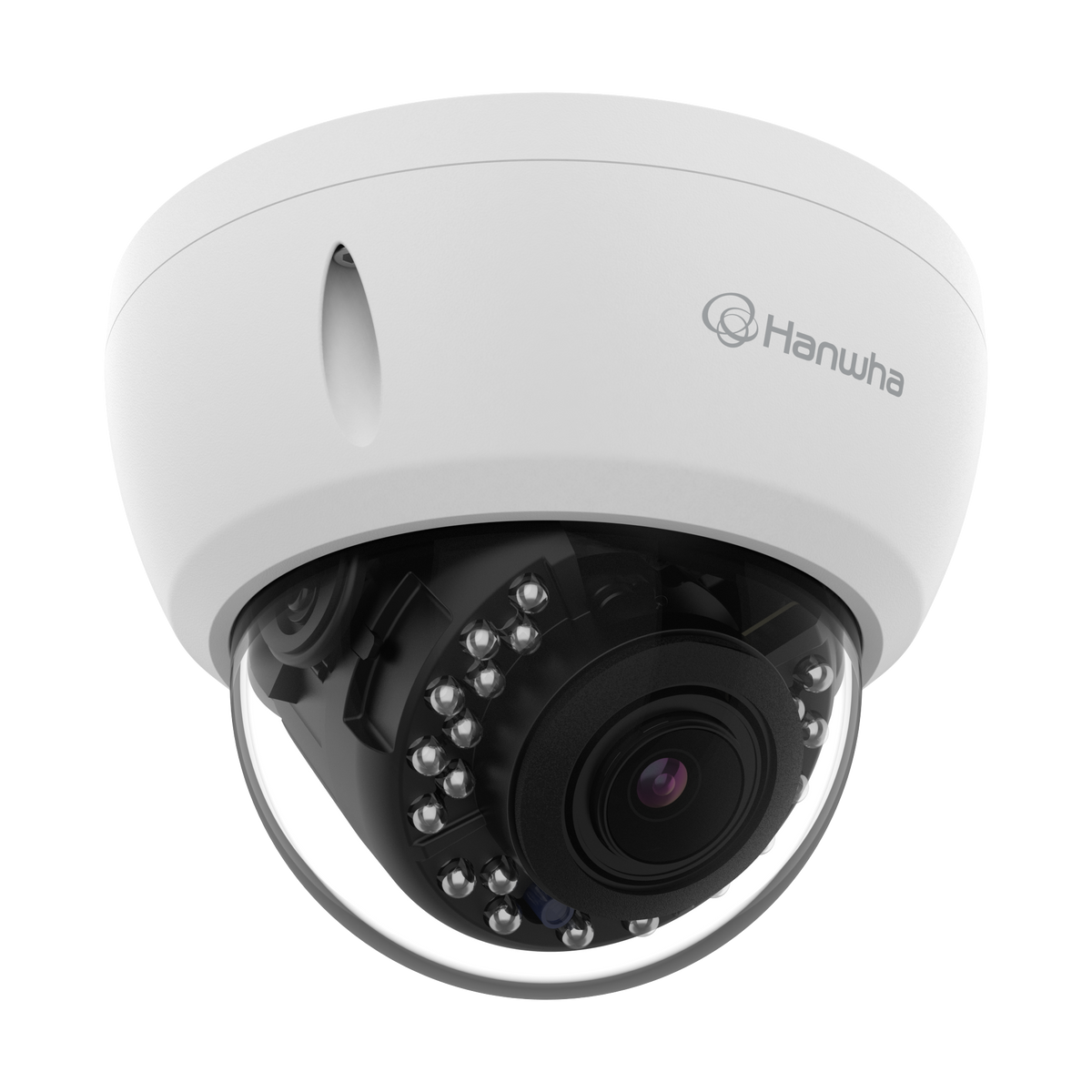

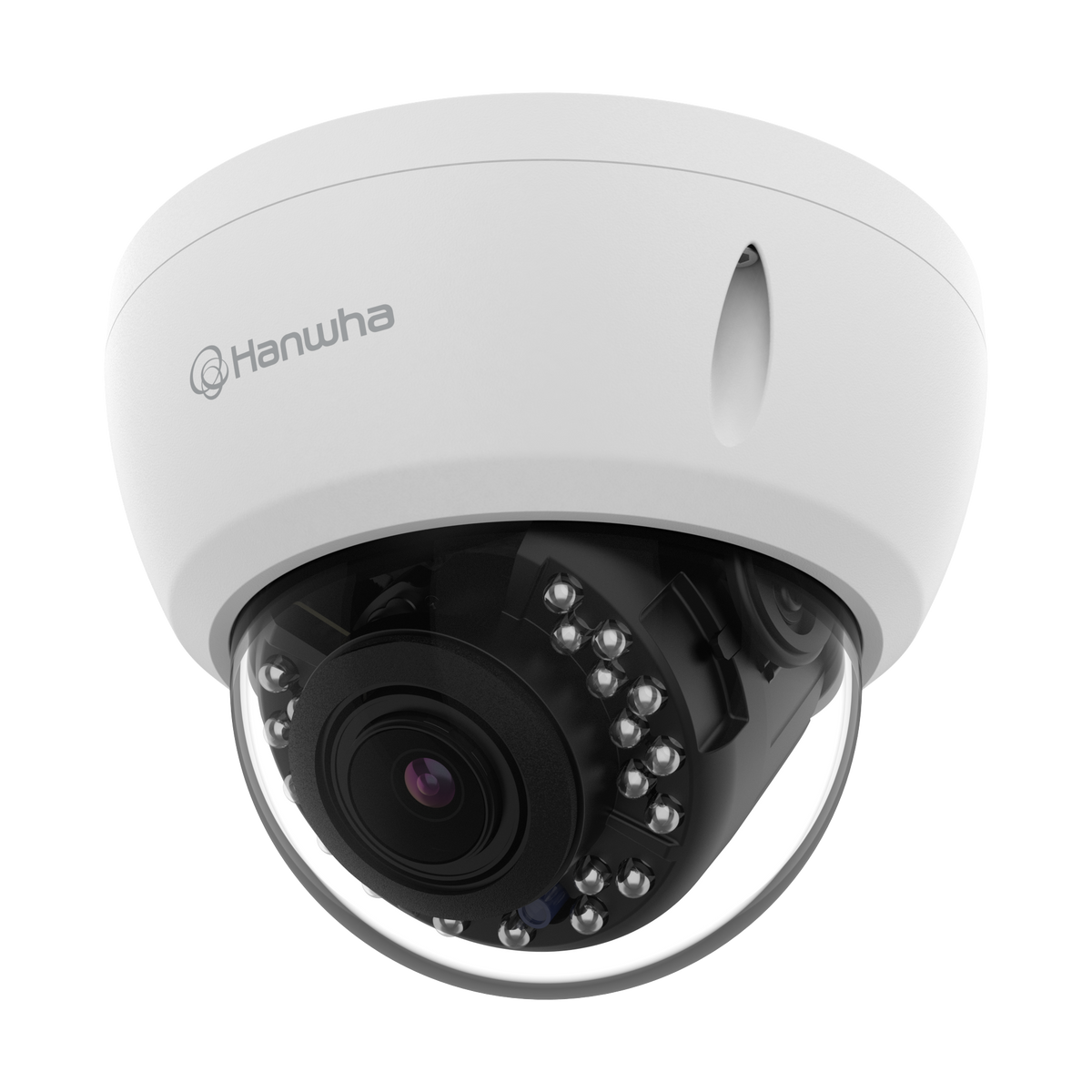

Hanwha ACV-8081R | 5MP Analog HD Vandal Dome Camera
Regular price
$293.23
Unit price
Brand: Hanwha Tec
|
SKU:
10395858
Regular price
$293.23
Unit price
Description
Description
Hanwha ACV-8081R | 5MP Analog HD Vandal Dome Camera
Overview
- Wisenet A Series 5MP IR Vandal Dome Camera
- 5MP resolution @ 30FPS, 4MP @ CVI
- 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
- 3.6mm fixed focal lens FoV H: 94° / V: 54°
- Day & Night (ICR), WDR
- IR distance 20m(65.6 ft)
- IP67, IK10
- 12v DC power
- Transmission distance Max.500m
- Easy installation (Plug & play), Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
Specifications
Specifications
Hanwha - ACV-8081R - Overview
- Wisenet A Series 5MP IR Vandal Dome Camera
- 5MP resolution @ 30FPS, 4MP @ CVI
- 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
- 3.6mm fixed focal lens FoV H: 94° / V: 54°
- Day & Night (ICR), WDR
- IR distance 20m(65.6 ft)
- IP67, IK10
- 12v DC power
- Transmission distance Max.500m
- Easy installation (Plug & play), Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
Hanwha - ACV-8081R - Specifications
| Brand Name | Hanwha |
|---|---|
| Manufacturer part Number | ACV-8081R |
| Item Description | 5MP Analog HD Vandal Dome Camera |
| Imaging Device | 1/2.8" CMOS |
| Resolution | - |
| Max. Framerate | Max. 30fps (@5MP Max. 20fps) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color : 0.06Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED on) |
| Video Out | - |
| Video Transmission Distance | 300m(5C2V Coaxial Cable) |
| Lens | - |
| Focal Length (Zoom Ratio) | 3.5mm~10.5mm (3x) motorized varifocal |
| Angular Field of View | H: 82°(Wide)~27°(Tele) V: 60°(Wide)~20°(Tele) D: 105°(Wide)~33°(Tele) |
| Min. Object Distance | 0.8m(2.62ft) |
