Brand: Hanwha Tec
|
SKU:
10395859

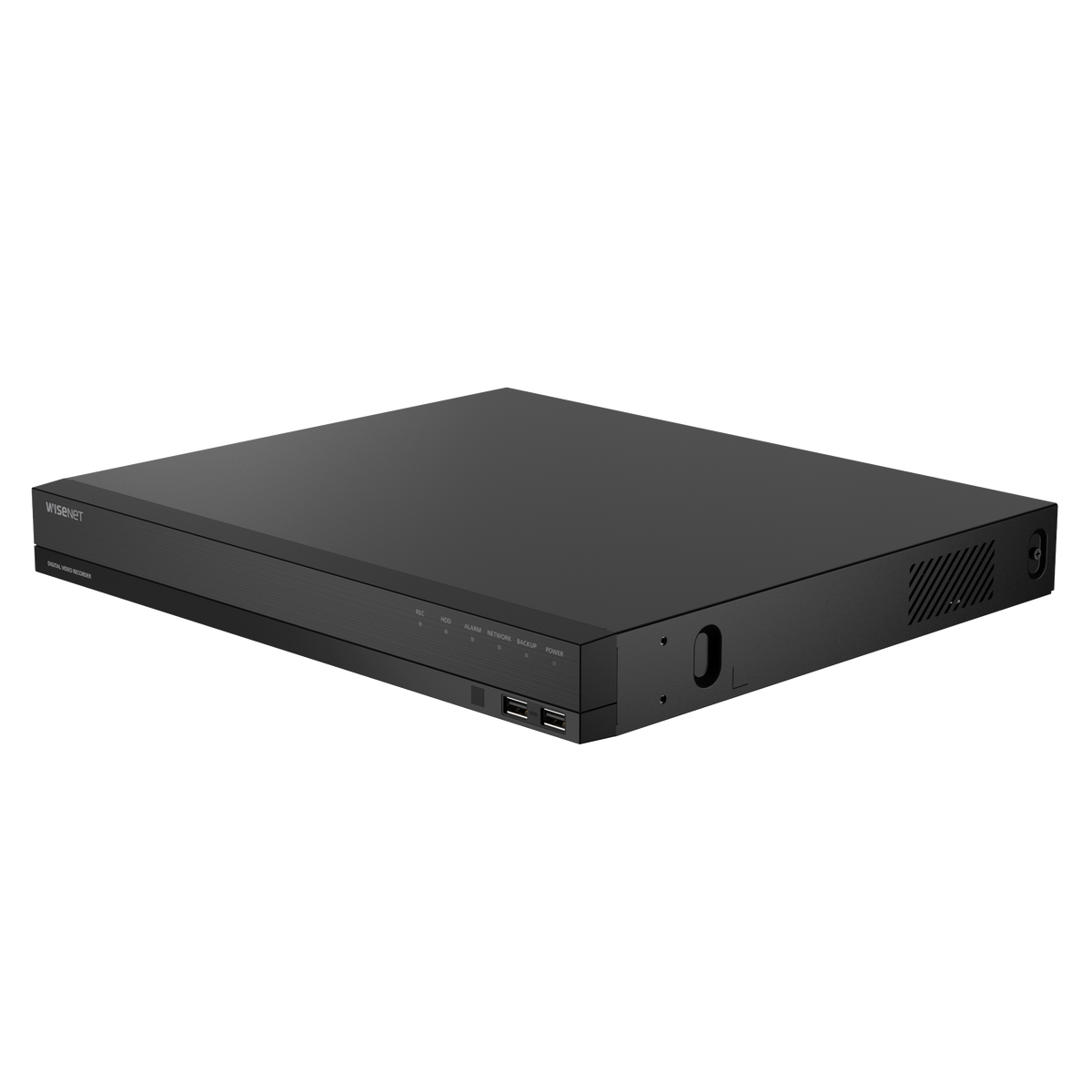

Hanwha ARD-1610 | 16-Channel AHD, TVI, CVI, CVBS, IP Recorder
Regular price
$633.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hanwha ARD-1610 | 16-Channel AHD, TVI, CVI, CVBS, IP Recorder
Regular price
$633.19
Unit price
Description
Description

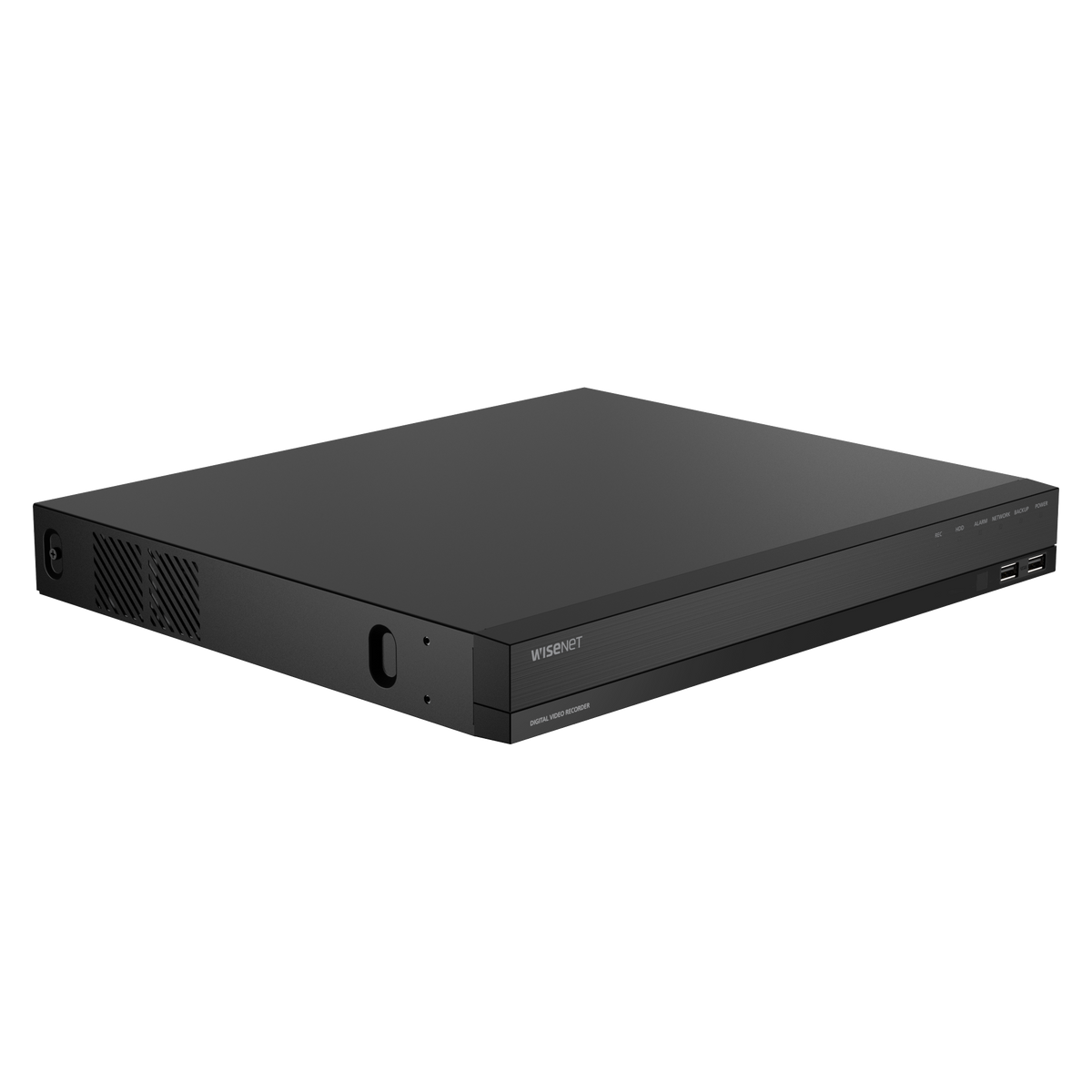

Hanwha ARD-1610 | 16-Channel AHD, TVI, CVI, CVBS, IP Recorder
Overview
- 5-in-1 16CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 18-Channels available (16-Channel Analog Maximum + 2 additional Channel Network, Network Maximum 18 Channel supported, depending on number of analog channels), up to 5MP. 1 IP channel can be utilized for each analog channel not being used.
- H.265, H.264, MJPEG codec
- 12fps@5MP (Half resolution recording), 15fps@4MP (Half resolution recording), 15fps@2MP recording, per channel
- Recording Bandwidth Max. 100Mbps.
- 4CH audio input/ 1CH audio output, 4 alarm input and 1 relay output, coaxial control
- Up to 2 SATA HDDs (6TB/HDD)
- HDMI/VGA video output, 1 X spot monitor output
- P2P service (QR code connect) for easy Wisenet Viewer / Wisenet Mobile app connection
- NDAA & FCC Compliant
Specifications
Specifications
Hanwha - ARD-1610 - Overview
- 5-in-1 16CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 18-Channels available (16-Channel Analog Maximum + 2 additional Channel Network, Network Maximum 18 Channel supported, depending on number of analog channels), up to 5MP. 1 IP channel can be utilized for each analog channel not being used.
- H.265, H.264, MJPEG codec
- 12fps@5MP (Half resolution recording), 15fps@4MP (Half resolution recording), 15fps@2MP recording, per channel
- Recording Bandwidth Max. 100Mbps.
- 4CH audio input/ 1CH audio output, 4 alarm input and 1 relay output, coaxial control
- Up to 2 SATA HDDs (6TB/HDD)
- HDMI/VGA video output, 1 X spot monitor output
- P2P service (QR code connect) for easy Wisenet Viewer / Wisenet Mobile app connection
- NDAA & FCC Compliant
Hanwha - ARD-1610 - Specifications
| Brand Name | Hanwha |
|---|---|
| Manufacturer part Number | ARD-1610 |
| Item Description | 16-Channel AHD, TVI, CVI, CVBS, IP Recorder |
| Analog camera > Inputs | 16CH(1Vp-p 75ohm, BNC) |
| Analog camera > Signal Type | - |
| Network camera > Inputs | Additional 2CH (Max. 18CH) |
| Network camera > Resolution | 5MP ~ CIF |
| Network camera > Protocols | SUNAPI(Wisenet), ONVIF |
| Decoding > Local Display | None |
| Decoding > Multi Screen Display | - |
| Decoding > Resolution | None |
| Live > Local Display | - |
| Live > Multi Screen Display | [Local monitor] - Dynamic layout, Virtual channel view - up to 20 division [Web] 1 / 2 / 3 / 4 / 6 / 1+5 / 1+ 7 / 9 |
| Performance | - |
| Operating System > Embedded | Linux |
