Brand: Hanwha Tec
|
SKU:
10395861

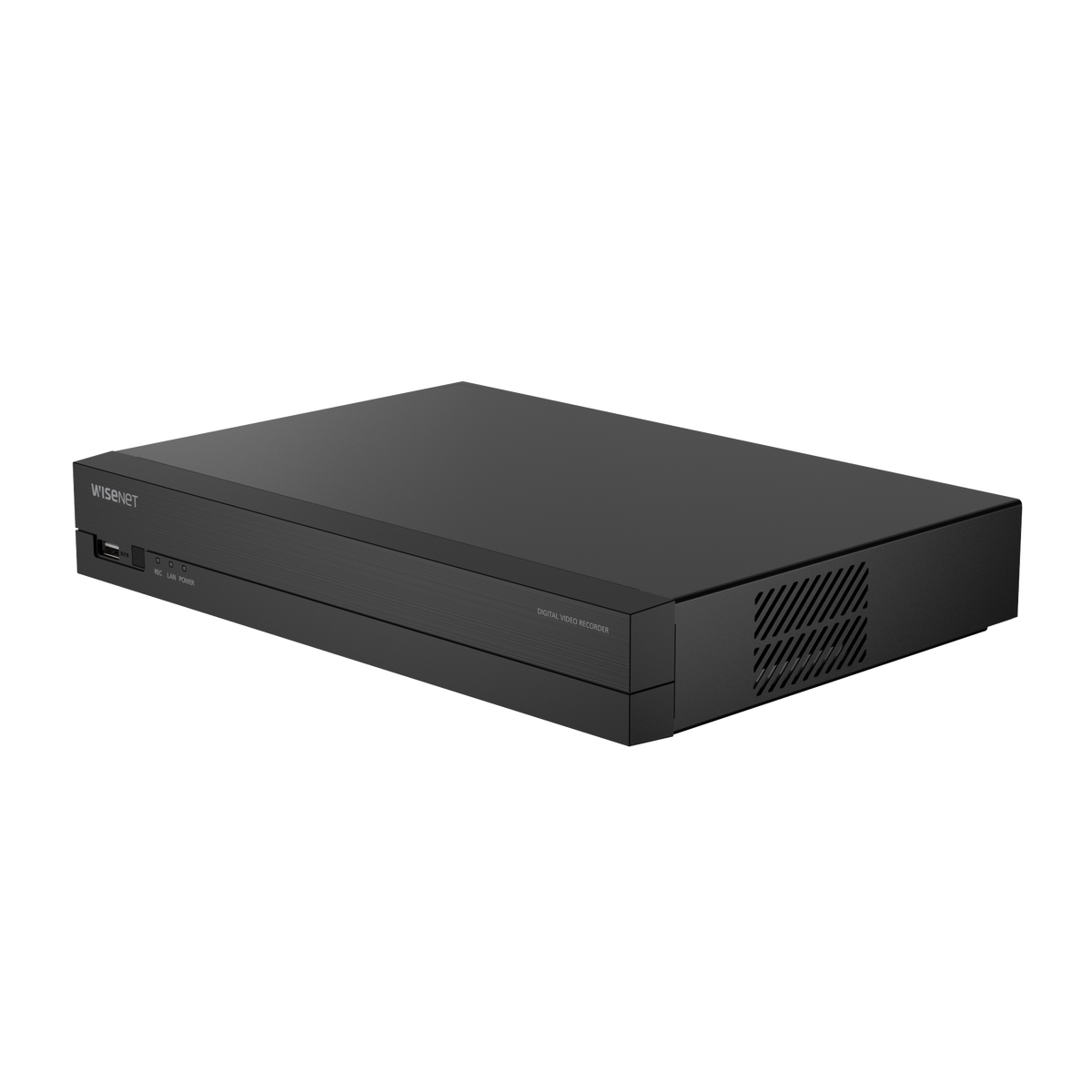

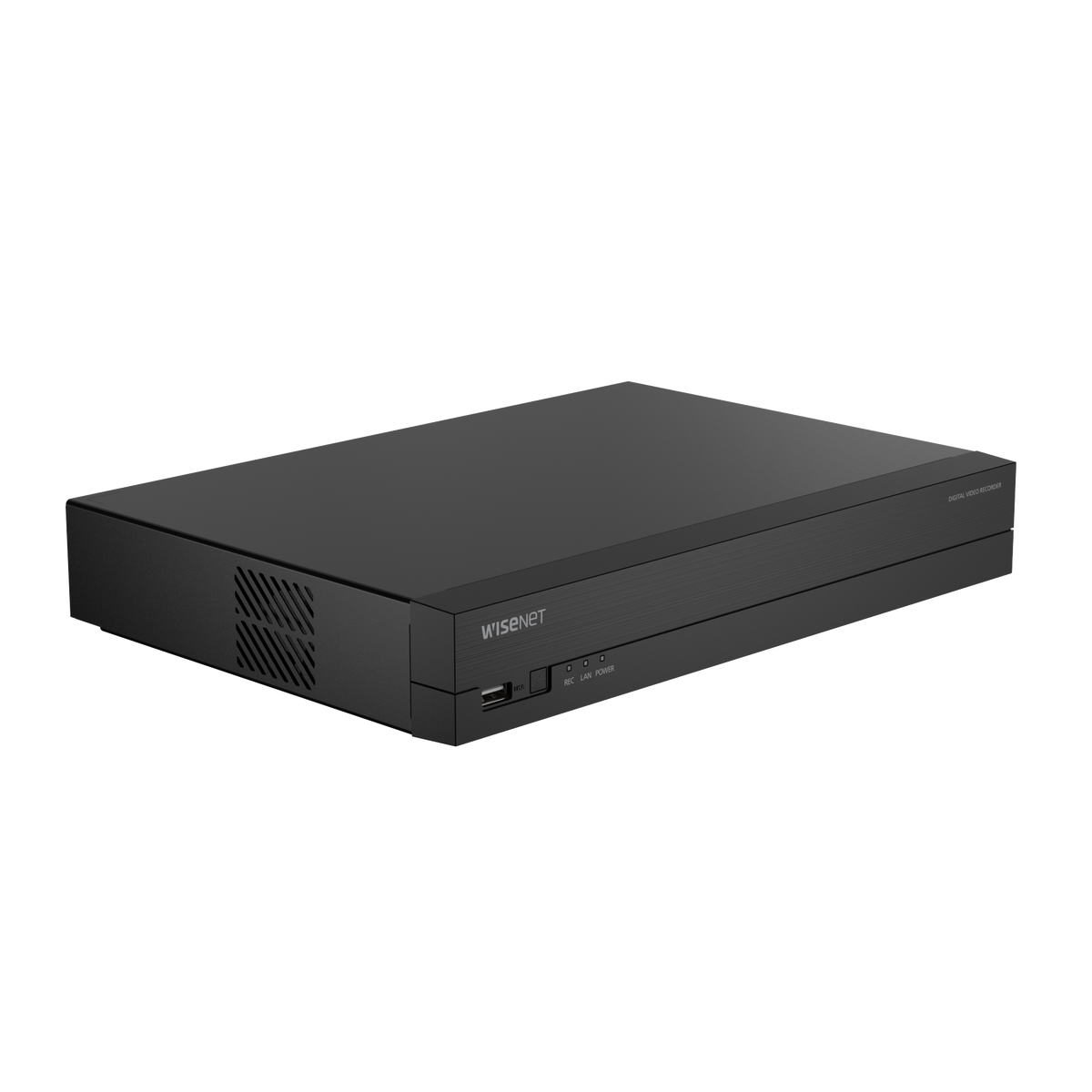

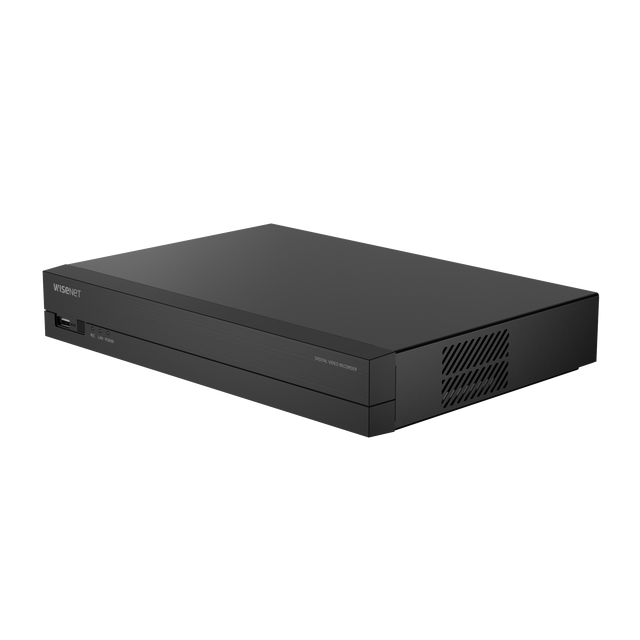

Hanwha ARD-410 | 4-Channel AHD, TVI, CVI, CVBS, IP Recorder
Regular price
$238.96
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hanwha ARD-410 | 4-Channel AHD, TVI, CVI, CVBS, IP Recorder
Regular price
$238.96
Unit price
Description
Description
Hanwha ARD-410 | 4-Channel AHD, TVI, CVI, CVBS, IP Recorder
Overview
- 5-in-1 4-Channel Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS up to 5MP Half Resolution/IP inputs
- Total 6-Channels available (4 Channel analog maximum + 2 additional network camera channels supported, depending on number of analog channels), up to 5MP. 1 IP channel can be utilized for each analog channel not being used.
- H.265, H.264, MJPEG codecs supported
- 12fps@5MP (Half resolution recording), 15fps@4MP (Half resolution recording), 15fps@2MP recording
- Recording Bandwidth Maximum 30Mbps.
- 4 alarm input and 1 relay output, coaxial control
- 1 SATA HDD (up to 6TB)
- HDMI/VGA dual monitor output, 1 x spot monitor output
- P2P service (QR code connect) for easy mobile app use
- NDAA & FCC Compliant
Specifications
Specifications
Hanwha - ARD-410 - Overview
- 5-in-1 4-Channel Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS up to 5MP Half Resolution/IP inputs
- Total 6-Channels available (4 Channel analog maximum + 2 additional network camera channels supported, depending on number of analog channels), up to 5MP. 1 IP channel can be utilized for each analog channel not being used.
- H.265, H.264, MJPEG codecs supported
- 12fps@5MP (Half resolution recording), 15fps@4MP (Half resolution recording), 15fps@2MP recording
- Recording Bandwidth Maximum 30Mbps.
- 4 alarm input and 1 relay output, coaxial control
- 1 SATA HDD (up to 6TB)
- HDMI/VGA dual monitor output, 1 x spot monitor output
- P2P service (QR code connect) for easy mobile app use
- NDAA & FCC Compliant
Hanwha - ARD-410 - Specifications
| Brand Name | Hanwha |
|---|---|
| Manufacturer part Number | ARD-410 |
| Item Description | 4-Channel AHD, TVI, CVI, CVBS, IP Recorder |
| Analog camera > Inputs | 4CH(1Vp-p 75ohm, BNC) |
| Analog camera > Signal Type | - |
| Network camera > Inputs | Additional 2CH (Max. 6CH) |
| Network camera > Resolution | 5MP ~ CIF |
| Network camera > Protocols | SUNAPI(Wisenet), ONVIF |
| Decoding > Local Display | None |
| Decoding > Multi Screen Display | - |
| Decoding > Resolution | None |
| Live > Local Display | - |
| Live > Multi Screen Display | [Local monitor] - Dynamic layout, Virtual channel view - up to 6 division [Web] 1 / 2 / 3 / 4 / 6 / 1+5 / 1+ 7 / 9 |
| Performance | - |
| Operating System > Embedded | Linux |
