Brand: Hanwha Tec
|
SKU:
10381278

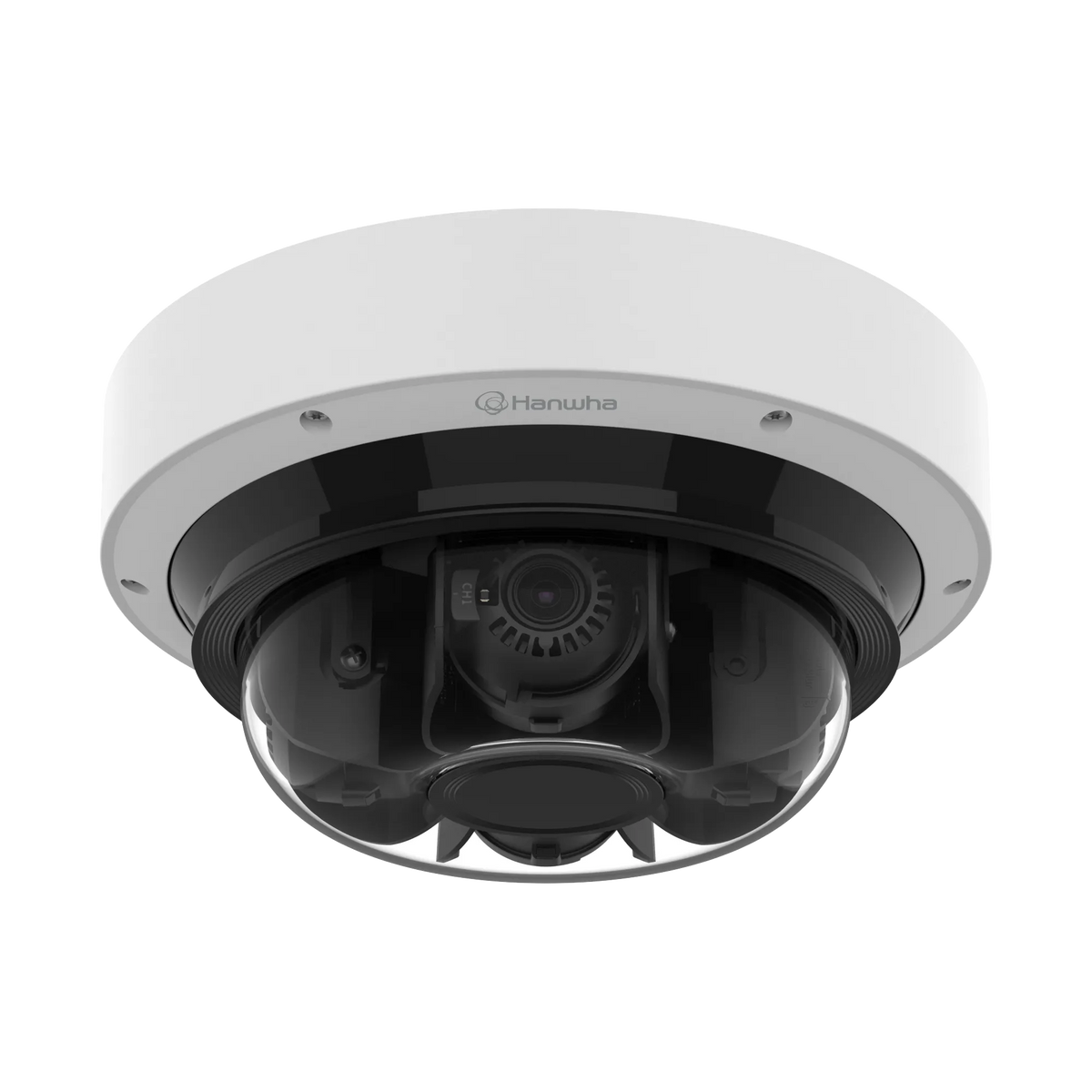

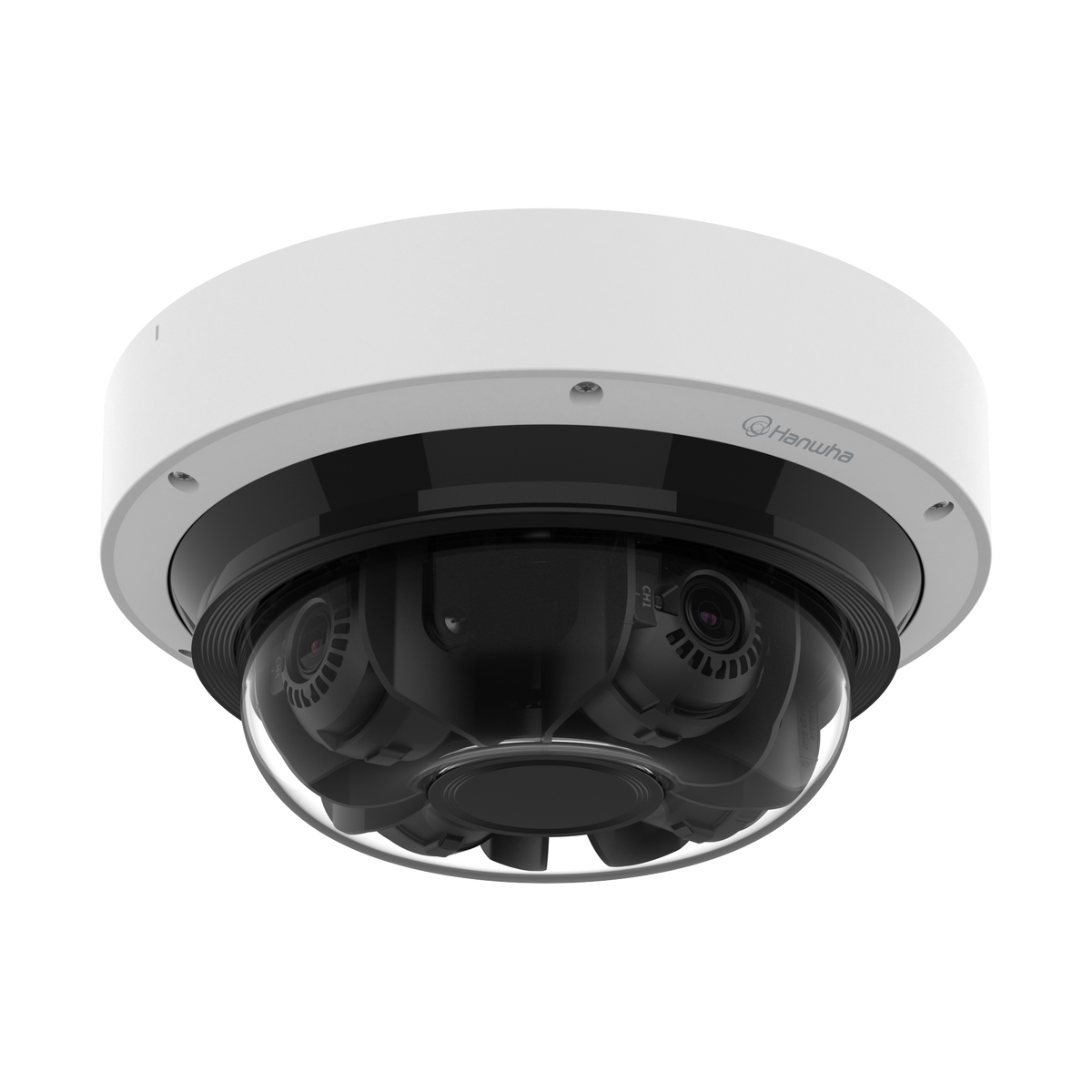

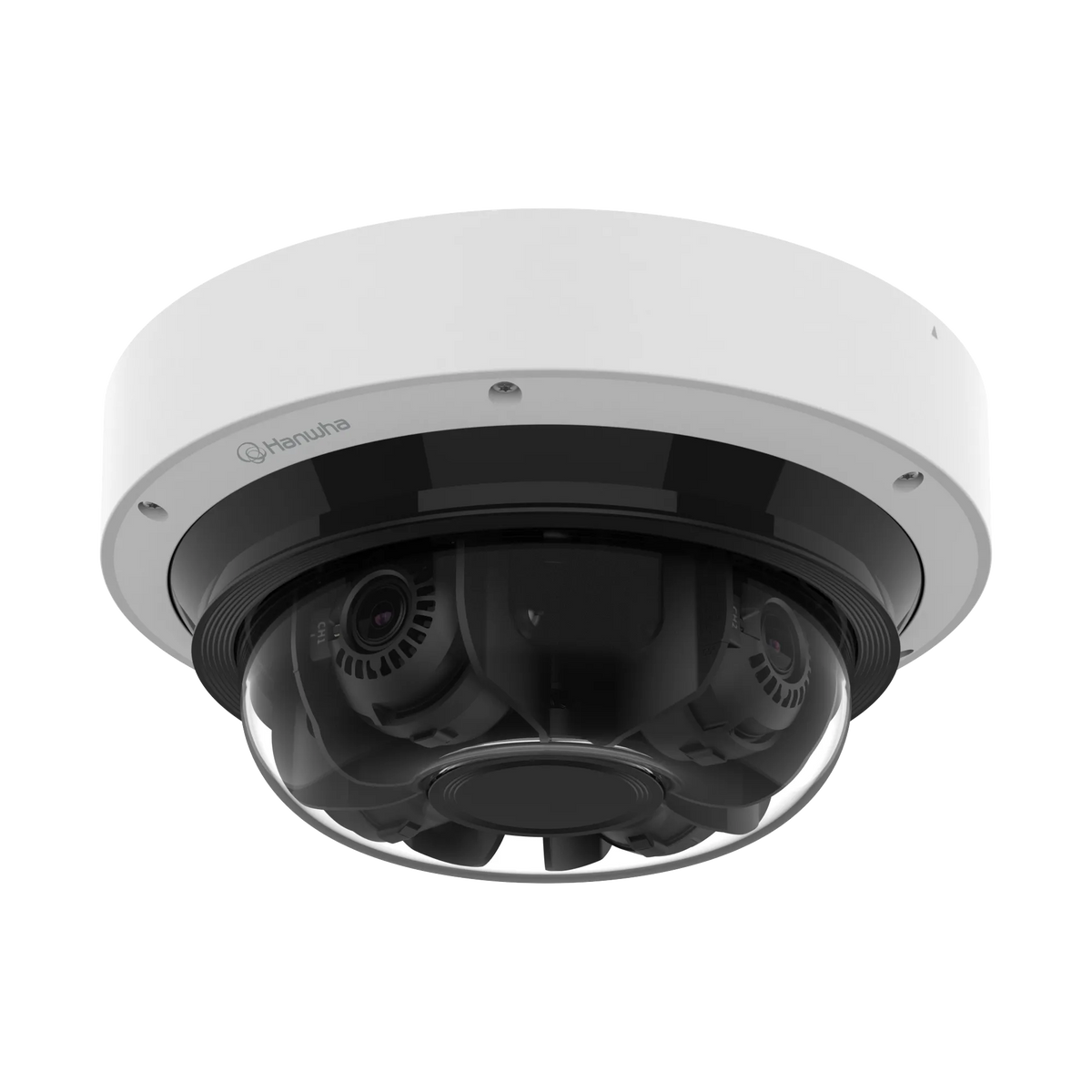

Hanwha PNM-C16083RVQ | 16MP 4MP x 4, AI, IR Multi-directional outdoor camera
Regular price
$3,005.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hanwha PNM-C16083RVQ | 16MP 4MP x 4, AI, IR Multi-directional outdo...
Regular price
$3,005.81
Unit price
Brand: Hanwha Tec
|
SKU:
10381278
Regular price
$3,005.81
Unit price
Shipping calculated at checkout.
Description
Description
Hanwha PNM-C16083RVQ | 16MP 4MP x 4, AI, IR Multi-directional outdoor camera
Overview
- The PNM-C16083RVQ is a unique, high-resolution multi-sensor multi-directional camera capable of providing 4MP on each of its' 4 sensors. Each sensor can be manually adjusted for pan along the track, tilt & rotation, along with motorized zoom, & focus control. The powerful AI capabilities enhance the license-free video analytics to reduce false alarms and provide quick and accurate forensic search with a compatible VMS.
- 4MP x 4ch multi-directional camera, using one IP address
- 30fps@4MP (H.265, H.264)
- 3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°) motorized varifocal lens
- Integrated IR that rotates with camera head, IR viewable length WiseIR 15m (49.21ft)
- H.265, H.264, MJPEG codec, Multi streaming
- 120dB WDR
- USB port for easy installation
- Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear
- WiseNR ?(using AI engine), WiseStream?(Based on AI engine)
- I/O Box compatibility for audio & alarm I/O
- TPM with FIPS 140-2 level 2
- micro SD card 512GB x2
- Operating Temperature: -40°C~+55°C(-40°F~+131°F)
- PoE+ powered
- Hard-coated dome bubble
- IP66, IK10, NEMA4X
- Easy Gangbox mounting installation
Specifications
Specifications
Hanwha - PNM-C16083RVQ - Overview
- The PNM-C16083RVQ is a unique, high-resolution multi-sensor multi-directional camera capable of providing 4MP on each of its' 4 sensors. Each sensor can be manually adjusted for pan along the track, tilt & rotation, along with motorized zoom, & focus control. The powerful AI capabilities enhance the license-free video analytics to reduce false alarms and provide quick and accurate forensic search with a compatible VMS.
- 4MP x 4ch multi-directional camera, using one IP address
- 30fps@4MP (H.265, H.264)
- 3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°) motorized varifocal lens
- Integrated IR that rotates with camera head, IR viewable length WiseIR 15m (49.21ft)
- H.265, H.264, MJPEG codec, Multi streaming
- 120dB WDR
- USB port for easy installation
- Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear
- WiseNR ?(using AI engine), WiseStream?(Based on AI engine)
- I/O Box compatibility for audio & alarm I/O
- TPM with FIPS 140-2 level 2
- micro SD card 512GB x2
- Operating Temperature: -40°C~+55°C(-40°F~+131°F)
- PoE+ powered
- Hard-coated dome bubble
- IP66, IK10, NEMA4X
- Easy Gangbox mounting installation
Hanwha - PNM-C16083RVQ - Specifications
| Brand Name | Hanwha |
|---|---|
| Manufacturer part Number | PNM-C16083RVQ |
| Item Description | 16MP 4MP x 4, AI, IR Multi-directional outdoor camera |
| Imaging Device | 1/2.8" CMOS x 4CH |
| Resolution | - |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(@4MP Max. 5fps) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.075Lux(F1.5, 1/30sec, 30IRE) BW: 0.0075Lux(F1.5, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | - |
| Video Transmission Distance | None |
| Lens | - |
| Focal Length (Zoom Ratio) | 3.3~5.7mm(1.7x) motorized varifocal |
| Angular Field of View | H: 100°(Wide)~53°(Tele) V: 54°(Wide)~30°(Tele) D: 125°(Wide)~61°(Tele) |
| Min. Object Distance | 1.3m(4.27ft) |
