Brand: Hanwha Tec
|
SKU:
10213138

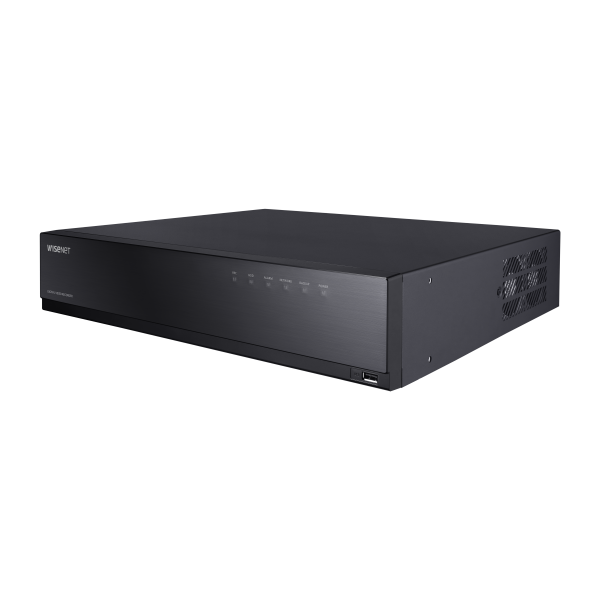

Hanwha Tec HRX-1632-8TB | | Wisenet HD+ Pentabrid DVR AHD Up To 4MP, 8TB Raw Storage
Regular price
$2,305.11
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hanwha Tec HRX-1632-8TB | | Wisenet HD+ Pentabrid DVR AHD Up To 4MP...
Regular price
$2,305.11
Unit price
Brand: Hanwha Tec
|
SKU:
10213138
Regular price
$2,305.11
Unit price
Shipping calculated at checkout.
Description
Description
Hanwha Tec HRX-1632-8TB | | Wisenet HD+ Pentabrid DVR AHD Up To 4MP, 8TB Raw Storage
Hanwha Tec - HRX-1632-8TB - Features
- 5-in-1 16CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 16CH (Analog Max. 16CH and up to network Max. 8 CH supported, depending on number of analog channels), up to 4MP
- H.265, H.264, MJPEG codec
- 15fps@4MP half, 15@2MP recording
- Coaxial control
- Up to 4 SATA HDDs (6TB/HDD)
- HDMI/VGA Dual monitor output
- P2P service (QR code connect) for easy mobile app connection
Specifications
Specifications
Hanwha Tec - HRX-1632-8TB - Specifications
| Analog camera - Inputs | 16CH(1Vp-p 75ohm, BNC) |
|---|---|
| Analog camera - Signal Type | AHD(4MP, 1080p, 720p) HDTVI(4MP, 1080p, 720p) HDCVI(4MP, 1080p, 720p) CVBS(NTSC/PAL) |
| Network camera - Resolution | 8MP ~ CIF |
| Network camera - Protocols | SUNAPI(Wisenet), ONVIF |
| Live - Resolution | [Analog Camera(NTSC/PAL)] - 4MP(4M Half 1280*1440, 30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - Typ. 2MP(480fps) |
| Record - Compression | H.265, H.264, MJPEG |
| Record - Record Rate(Analog) | Analog Camera(NTSC/PAL) (Main Stream)4M(4M Half 1280*1440) 15/12fps, 2M 15/12fps, 720p 30/25fps, 960H 30/25fps (NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF 15/12 fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. |
| Record - Recording Bandwidth | Max. 80Mbps |
| Record - Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track |
| Record - Event Trigger | Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event, Dynamic camera event |
| Record - Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
| Search & Play - User | Max. 4 users (Set 1, Remote 3) |
| Search & Play - Simultaneous playback | 16CH(Local Monitor, CMS), 4CH(Wisenet Mobile) 1Ch(Web) |
| Storage - Supported HDD | Up to 6TB |
| Backup - File backup | BU, EXE(Include Player), AVI(Webviewer only) |
| PTZ - Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Power inlet | 1EA AC |
| Operating Humidity | 20% ~ 85% RH |
| Certification | UL, CE, FCC, KC |
| Power Input | 100~240 VAC±10%, 50/60 Hz |
| Power Consumption | Max. 120W (6T HDD 4ea) |
| Dimension (WxHxD) | 440 x 88 x 384.8mm(17.32” x 3.46” x 15.15”) |
| Weight | Approx. 4.6Kg ( 10.14 lb, 4TB HDD 1ea) |
