Hanwha Tec PWR-DR12033 | Accessory
Regular price
$176.21
Unit price
Brand: Hanwha Tec
|
SKU:
10061860
Regular price
$176.21
Unit price
Description
Description

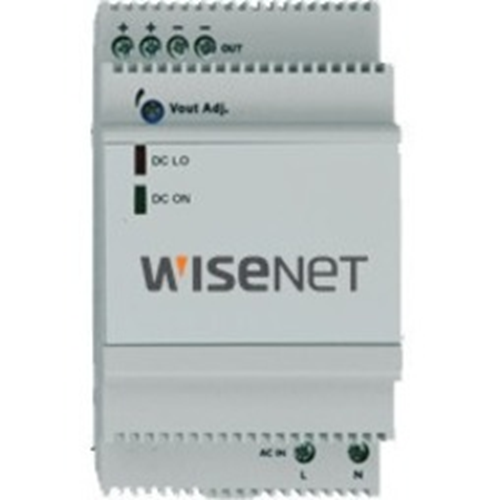

The PWR-1233DR is a high quality, low noise switching mode power supply ideally suited to the entire industrial product range that require 12 VDC power input. These rugged units are DIN rail mountable, providing an ideal mounting configuration to a mating industrial switch or any product using our range of DIN rail mounting adapters. The wide ambient operating temperature range permits installation in most out of plant and unconditioned environments, such as those found in intelligent transportation systems or factory automation/industrial control applications. Unconditional line and load protection is provided.
Key Features
- Universal AC input: 90 to 264 VAC, 47-63Hz
- Mounts on standard 7.5 or 15 mm DIN-rail
- Adjustable output voltage range support
- High operating efficiency; up to 80%
- Small package for limited space installations
- Natural convection cooling; no troublesome fans
- Wide operating temperature range: -40º to +71º C
Specifications
Specifications
Specifications
| Manufacturer | Hanwha Group |
|---|---|
| Manufacturer Part Number | PWR-DR12033 |
| Product Model | PWR-DR12033 |
| Product Name | DIN Rail Mounting 33W Hardened Power Supply |
| Product Type | Power Supply |
| Efficiency | 0.8 |
| Input Voltage | 120 V AC, 230 V AC |
| Output Current | 2.75 A |
| Output Power,Output Voltage | 33 W,12 VDC |
| Output Power | 33 W |
| Output Voltage | 12 VDC |
| Depth | 2.2" |
| Height | 3.6" |
| Width | 2.1" |
| Form Factor | DIN Rail |
| Weight (Approximate) | 6.70 oz |
| Compatibility | Industrial Products |
