Brand: Hanwha Tec
|
SKU:
10060192

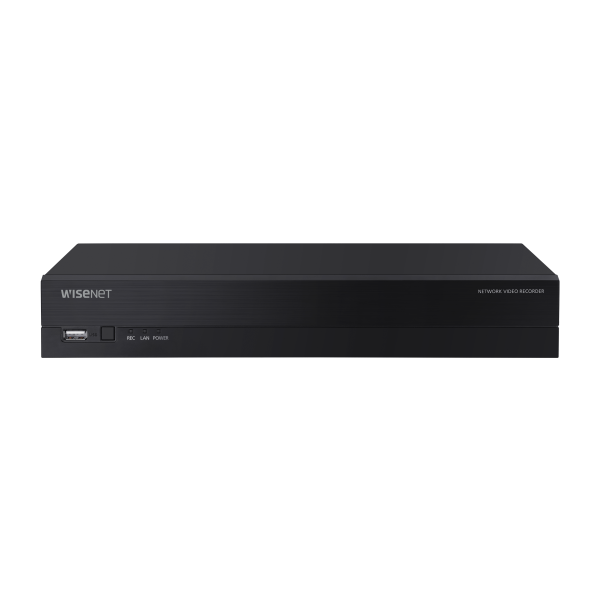

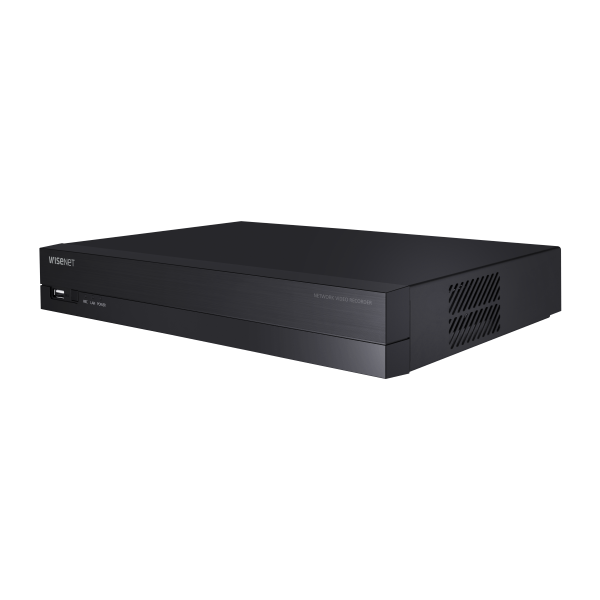

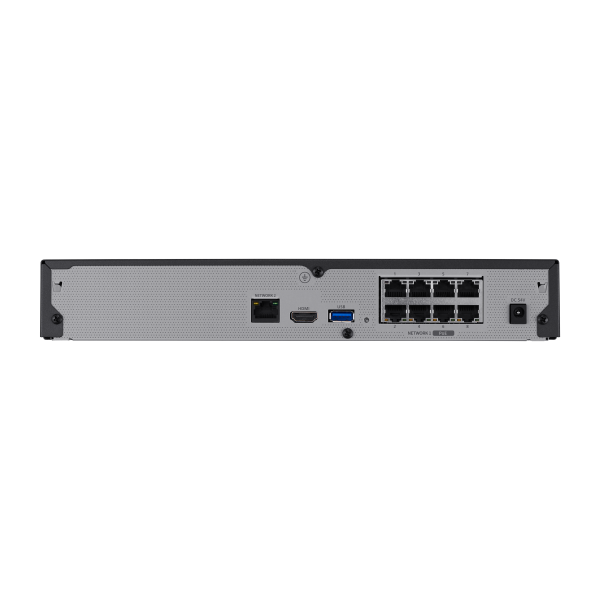

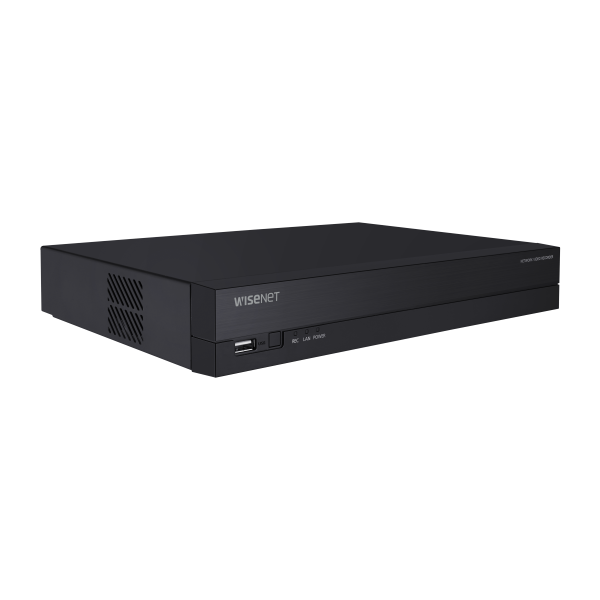

Hanwha Tec QRN-820S-4TB | | 4K NVR, 4TB Raw, Supports 8 Channels with 8 PoE Ports
Regular price
$1,343.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hanwha Tec QRN-820S-4TB | | 4K NVR, 4TB Raw, Supports 8 Channels wi...
Regular price
$1,343.40
Unit price
Brand: Hanwha Tec
|
SKU:
10060192
Regular price
$1,343.40
Unit price
Shipping calculated at checkout.
Description
Description
Hanwha Tec QRN-820S-4TB | | 4K NVR, 4TB Raw, Supports 8 Channels with 8 PoE Ports
Hanwha Tec - QRN-820S-4TB - Features
- Up to 8 channels, 8 megapixel supported
- H.265, H.264, MJPEG codec supported
- 80Mbps network camera recording
- Plug & play with 8 PoE+ ports, 65W budget
- Maximum 1 HDD (up tp 6Tb) supported
- HDMI local monitor
- P2P service (QR code connect) support
- Dual track recording, 4K HDMI monitor out
Specifications
Specifications
Hanwha Tec - QRN-820S-4TB - Specifications
| Network camera - Inputs | Max. 8CH |
|---|---|
| Network camera - Resolution | 8MP ~ CIF |
| Network camera - Protocols | Wisenet, ONVIF |
| Decoding - Local Display | HDMI: 3840 x 2160, 1920x1080, 1280x720 |
| Decoding - Resolution | 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps) |
| Record - Compression | H.265, H.264, MJPEG |
| Record - Recording Bandwidth | Max. 80Mbps |
| Record - Resolution | 8MP ~ CIF |
| Record - Mode | Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording |
| Record - Event Trigger | Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) |
| Record - Event Action | e-Mail, PTZ Preset, Buzzer, Monitor Out |
| Search & Play - Playback Bandwidth | Max. 32Mbps(8CH simultaneously) |
| Search & Play - User | Max. 4 Users (Local 1, Remote 3) |
| Search & Play - Simultaneous playback | Max. 8CH(Local Monitor, Network) |
| Search & Play - Fisheye Dewarping | WEB / CMS / Mobile |
| Storage - Supported HDD | Up to 6TB |
| Storage - HDD Slot | SATA 1ea(Max. 6TB) |
| Backup - File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Backup - Function | Multi channel(Upto 8CH) Play, Date-Time/Title display |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Wisenet DDNS |
| Audio - GUI | 8CH(network) |
| Audio - Web | G.711, G.726, AAC(16/48KHz) |
| Audio - Audio Communication | 2-Way |
| Ethernet | RJ-45(10/100/1000BASE-T) x 1 RJ-45(PoE+) x 8 |
| USB | 2EA(Front 1, Rear 1) |
| Operating Temperature | 0°C to +40°C(32? to 104?) |
| Operating Humidity | 20% ~ 85% RH |
| Power Input | 54VDC / 1.67A |
| Power Consumption | Max. 76.2W(1HDD, PoE on) Max. 8.1W(1HDD, PoE off) |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | W300.0 x H47.1 x D208.4 mm (11.8" x 1.85" x 8.2") (1U) |
| Weight | 1.01Kg (2.23lb) |
