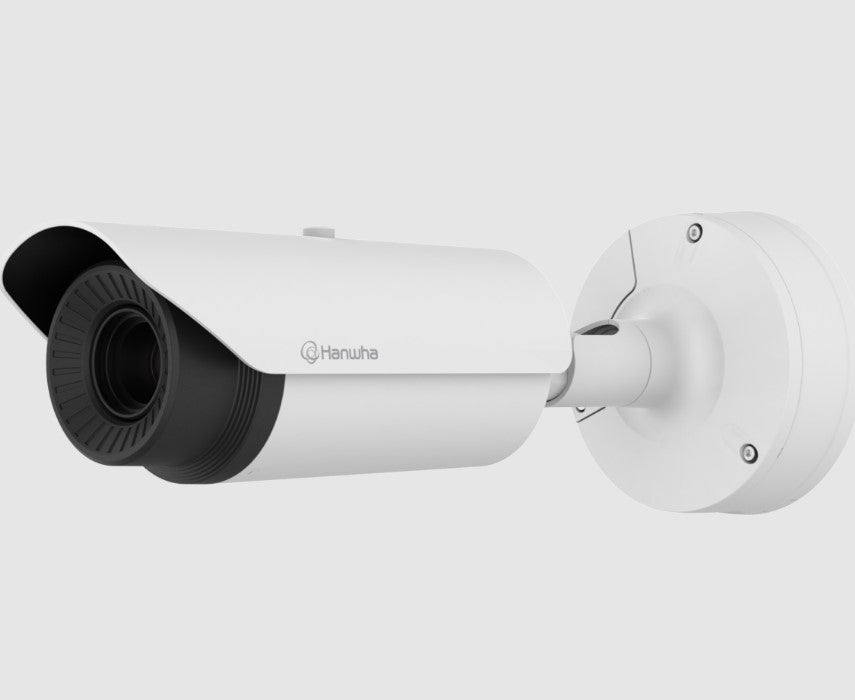

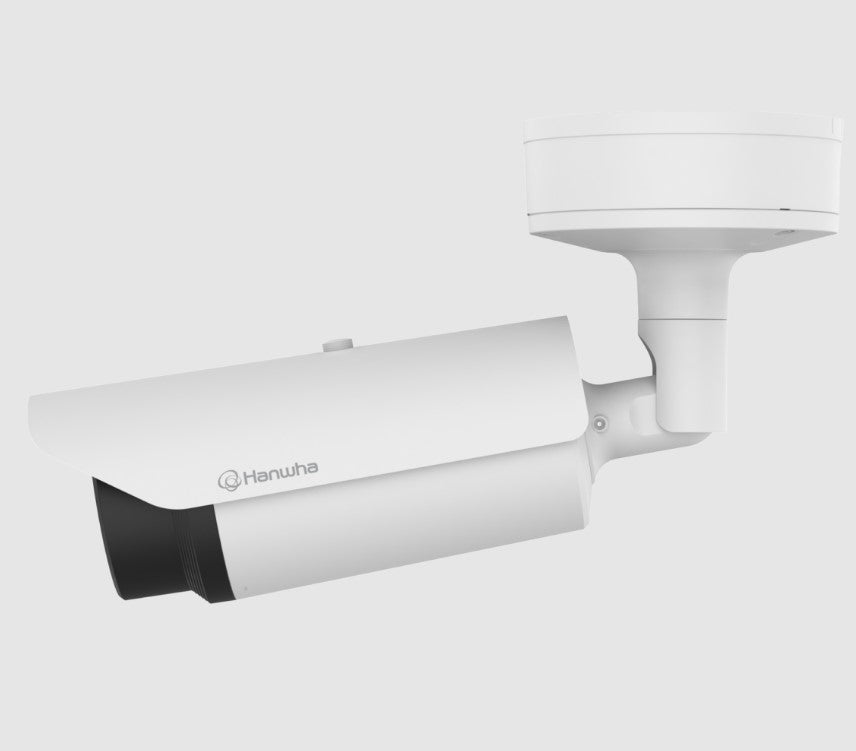

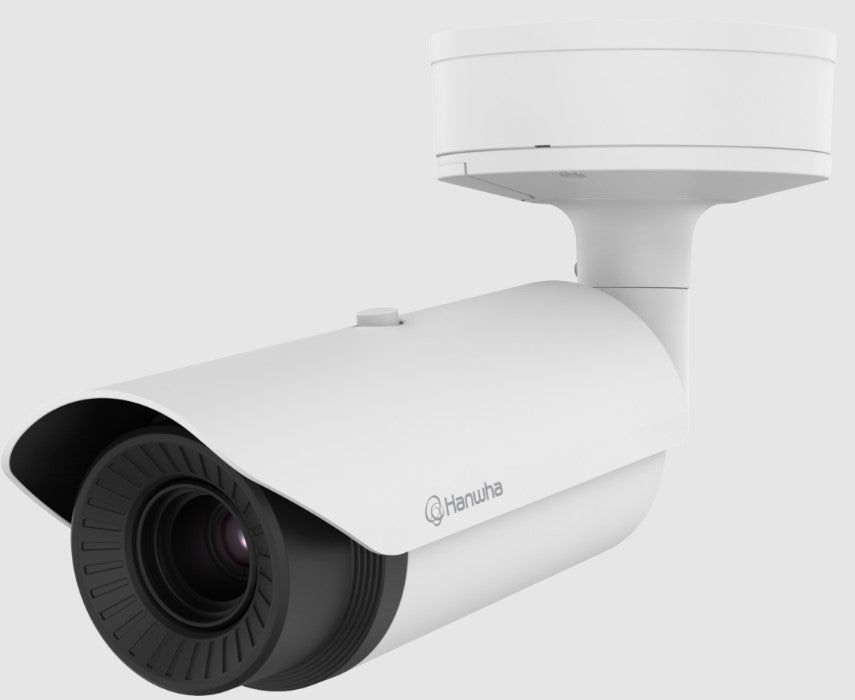

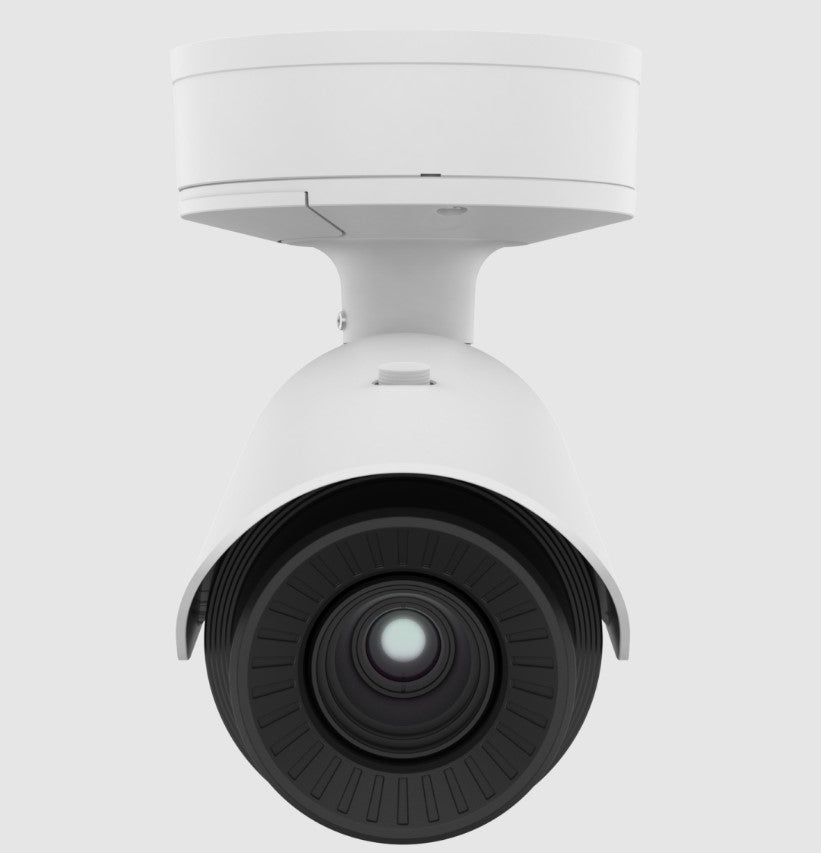

Hanwha Tec TNO-L4040TR | VGA Thermal Camera
Description
Description
TNO-L4030TR can detect temperature ranging from -20?C to +130?C (C (-4°F~266°F). The system generates and sends alarms to users in case the temperature of any of six designated quadrangle areas on the monitoring screen exceeds or falls below predefined values, or when temperatures rapidly increases or decreases beyond established limits.
By employing a hybrid color palette, the selected temperature range within the current monitored image can be displayed in vivid colors, enhancing user observation of monitored areas.
With new firmware, users can define 3 to 6 temperature ROIs, each with a custom name. Each ROI can be configured as a free quadrilateral shape. When a predefined temperature event is triggered, an MJPEG image displays all the ROIs with assigned names and colors, all temperature readings and a marker for the ROI that triggered the event.
Hanwha Tec - TNO-L4040TR - Features
- Max. 640x480 resolution support
- Built-in 19mm fixed focal lens
- H.265, H.264, MJPEG codec
- Max. 8fps@all resolutions (H.265, H.264, MJPEG)
- Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature detection, Sound classification, Shock detection
- Micro SD / SDHC / SDXC memory 1-slot (Max. 256GB)
- Hallway View, WiseStreamII support
- Temperature Detect Range '-20°C~130°C(-4°F~266°F)
- Additional Hybrid palettes, Spot temperature reading
- PoE, 24VAC, 12VDC / IP66, IK10, NEMA4X
Specifications
Specifications
Hanwha Tec - TNO-L4040TR - Specifications
| Temperature Detect Range | -20°C~130°C(-4°F~266°F) |
|---|---|
| Temperature Accuracy | ±5°C(?100°C), ±20%(>100°C) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Memory | 1024MB RAM, 256MB Flash |
| Operating Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3), 24VAC, 12VDC |
| Color | White |
| Material | Aluminum |
