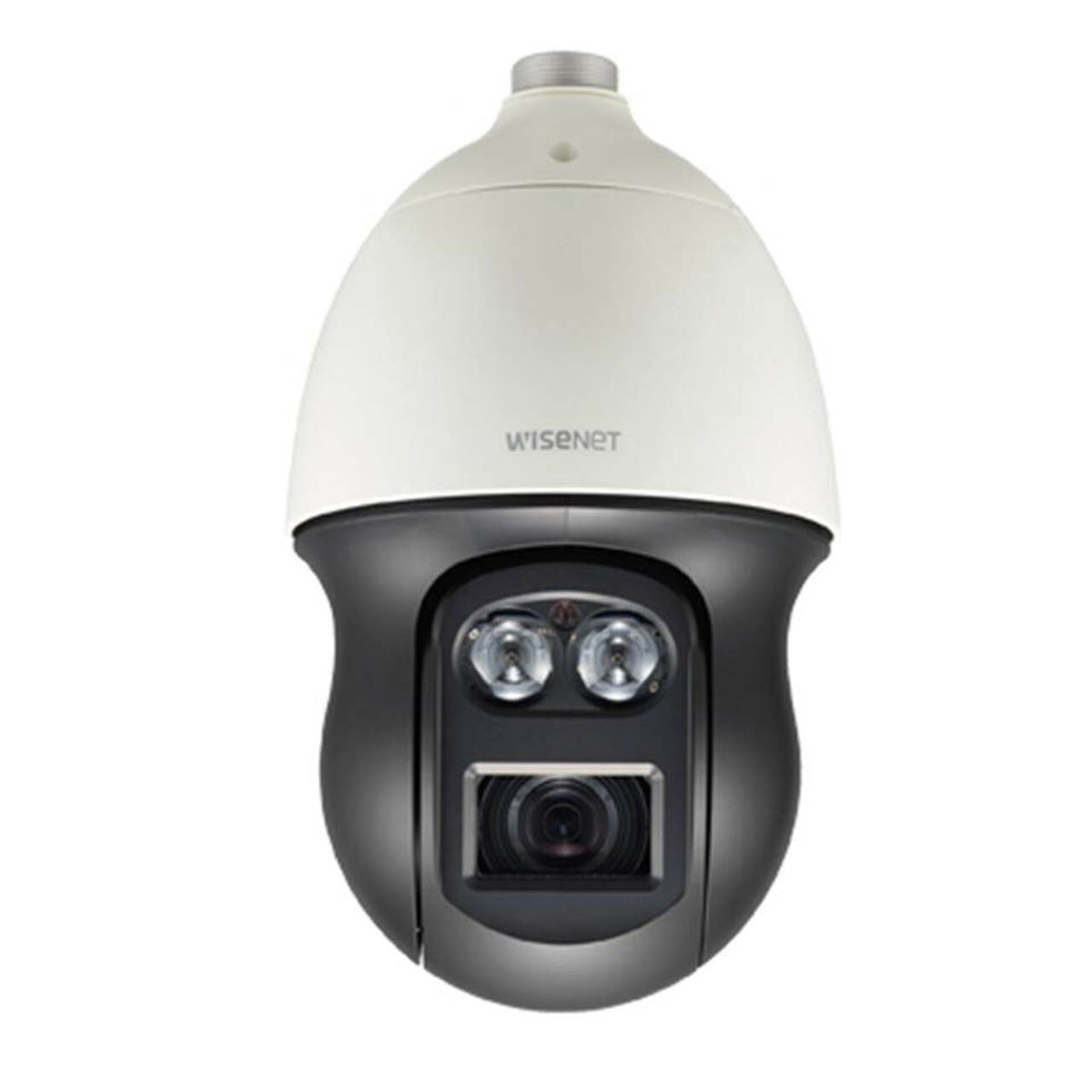

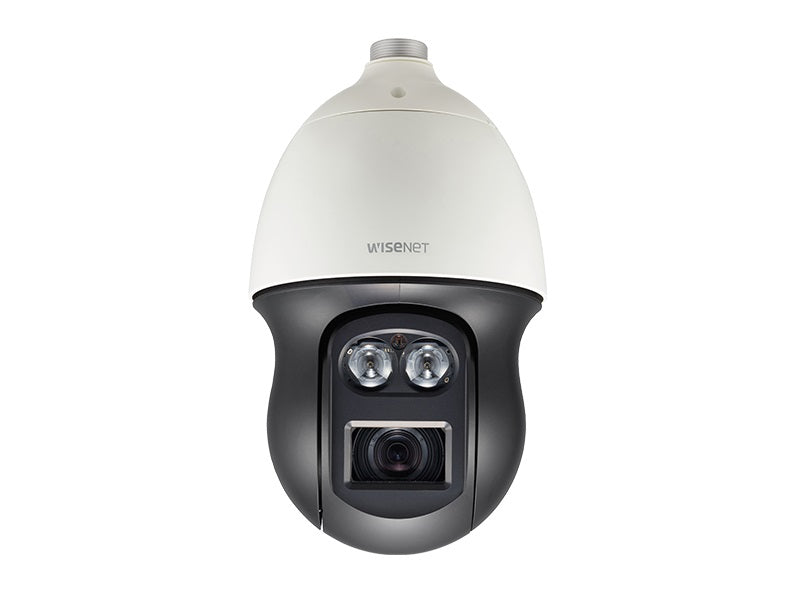

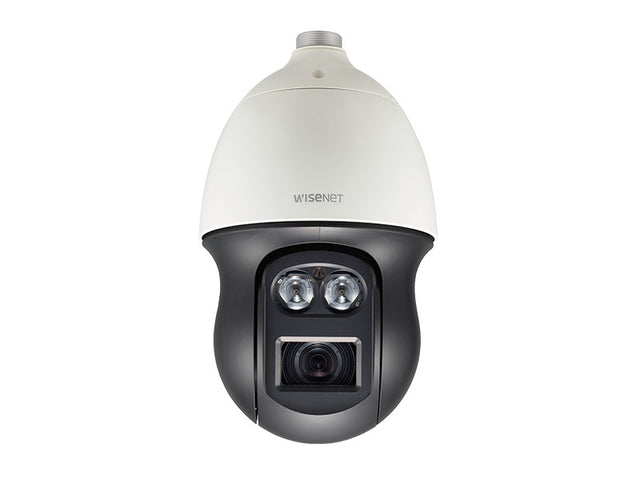

Hanwha Tec XNP-6370RH | 2MP IR 37x PTZ Camera Day/Night IP66
Regular price
$3,836.16
Unit price
Brand: Hanwha Tec
|
SKU:
883968-DEMO
Regular price
$3,836.16
Unit price
Description
Description
Hanwha Tec XNP-6370RH | 2MP IR 37x PTZ Camera Day/Night IP66.
Hanwha Tec - XNP-6370RH - Features
- 16 : 9 Full HD (1080p) resolution support
- 6 ~ 222mm (37x)- 16x digital zoom
- H.265- H.264- MJPEG codec
- Multiple streaming- WiseStream support
- Max. IR viewable length : 350m
- Day & Night (ICR)- WDR (120dB)
- Auto tracking- Intelligent video analytics
- SD/SDHC/SDXC memory slot
- IP66- IK10
Specifications
Specifications
Hanwha Tec - XNP-6370RH - Specifications
| Imaging Device | 1/1.9" 2.42M CMOS |
|---|---|
| Total/ E_x001F_ective Pixels | 1-952(H) x 1-241(V) approx - 2.42M pixels/ 1-937(H) x 1-097(V) approx- 2.12M pixels |
| Scanning System | Progressive scan |
| Min. Illumination | Color : 0.05Lux (1/30sec- F1.5) B/W : 0Lux (IR LED on) |
| S / N Ratio | 50dB |
| Focal Length (Zoom Ratio) | 6 ~ 222mm (37x) |
| Min. Object Distance | 1.5m (4.92ft) |
| Lens/ Mount Type | DC auto iris/ Board-in type |
| Pan / Tilt Range | 360? Endless/ 190? (-5? ~185? ) |
| AutoTracking | Off_x001D_ / On |
| Viewable Length | 350m (1-148.29ft) |
| Day & Night | Auto (ICR)/ Color/ B/W |
| Backlight Compensation | Off_x001D_ / BLC / WDR |
| Wide Dynamic Range | 120dB |
| Motion Detection | Off_x001D_ / On (4ea- Polygonal zones) |
| Privacy Masking | Off_x001D_ / On (16ea- Rectanglular zones) - Color : Grey / Green / Red / Blue / Black / White- - Zoom ratio option for mask mode |
| Gain Control | Off_x001D_ / Low / Medium / High |
| White Balance | ATW / AWC / Manual/Indoor / Outdoor / Mercury / Sodium |
| Digital Zoom | 16x- area zoom funtion support digital zoom 2x |
| Rotate Image | Flip : On/O_x001D_ / Mirror : On/O_x001D_ |
| Pixel Counter | Support (Plug-in viewer only |
| Ethernet | RJ-45 (10/100BASE-T)- SFP (* Only using SBP-302HF) |
| Resolution | 1-920 x 1-080- 1-280 x 1-024- 1-280 x 960- 1-280 x 720- 1-024 x 768- 800 x 600- 800 x 448- 720 x 576- 720 x 480- 640 x 480- 640 x 360- 320 x 240 |
| Protocol | TCP/IP-UDP/IP-RTP(UDP)-RTP(TCP)-RTCP-RTSP-NTP-HTTP-HTTPS-SSL/TLS-DHCP-PPPoE-FTP- SMTP- ICMP- IGMP- SNMPv1/v2c/v3(MIB-2)- ARP-DNS-DDNS-QoS- PIM-SM- UPnP- Bonjour |
| Security | HTTPS(SSL) login authentication- Digest login authentication IP address _x001C_ltering- User accesslog- 802.1x authentication (EAP-TLS- EAP-LEAP) |
| Ingress Protection /Vandal Resistance | IP66 / IK10 |
