Brand: Hanwha Tec
|
SKU:
10182246

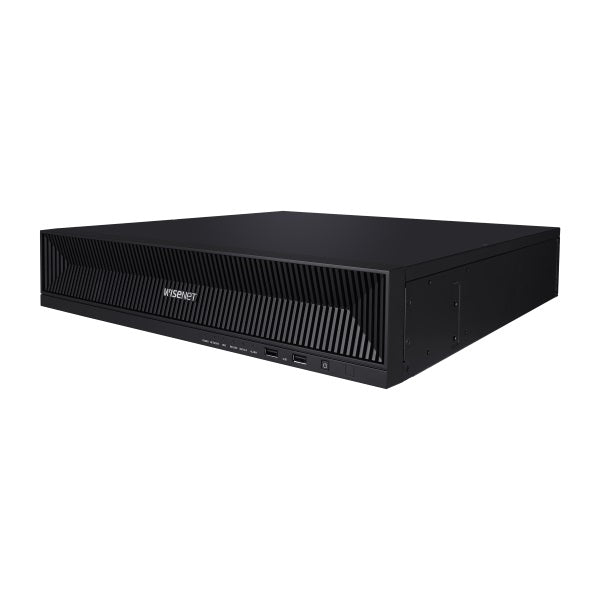

Hanwha Tec XRN-1620B1-4TB | 16CH 4K 140Mbps H.265 PoE+ NVR
Regular price
$2,058.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hanwha Tec XRN-1620B1-4TB | 16CH 4K 140Mbps H.265 PoE+ NVR
Regular price
$2,058.37
Unit price
Brand: Hanwha Tec
|
SKU:
10182246
Regular price
$2,058.37
Unit price
Shipping calculated at checkout.
Description
Description
Hanwha Tec XRN-1620B1-4TB | 16CH 4K 140Mbps H.265 PoE+ NVR.
Hanwha Tec - XRN-1620B1-4TB - Features
- Up to 16 channels- Supports up to 32 megapixel camera resolution
- 140Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor HDMI/VGA video out
- H.265- H.264- MJPEG compression
- WiseStream support
- Maximum 4 internal HDDs (24TB)
- ARB & failover (N+1)- dynamic event- Wisenet AI metadata search support
Specifications
Specifications
Hanwha Tec - XRN-1620B1-4TB - Specifications
| Inputs | Max. 16CH |
|---|---|
| Resolution | 32MP ~ CIF |
| Protocols | SUNAPI- ONVIF |
| Local Display | FHD : HDMI & VGA Dual monitor UHD : HDMI Single monitor |
| Multi Screen Display | [Local Monitor] - Dynamic layout- Virtual channel view - Clone mode : Up to 16 Division - Expand mode : Up to 9 Division [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
| Resolution | [Local Monitior] FHD Clone mode : 32M(15fps- H.265 Only)- 12M(30fps- H.265 Only)- 8.3M(50fps)- 1080p(240fps)- D1(480fps) UHD Single mode : 32M(15fps- H.265 Only)- 12M(30fps- H.265 Only)- 8.3M(50fps)- 1080p(240fps)- D1(270fps) FHD Expand mode: 32M(12fps- H.265 Only)- 12M(25fps- H.265 Only)- 8.3M(30fps)- 1080p(90fps)- D1(200fps) Clone/Single mode : Up to 25fps when displaying more than 10CH |
| Object Attribute | Compatible for Wisenet AI Camera |
| Embedded | Linux |
| Compression | H.265- H.264- MJPEG |
| Recording Bandwidth | Max. 140Mbps |
| Resolution | 32MP ~ CIF |
| Mode | Normal- Dual Stream- Schedule(Continuous/Event)- Event (Pre/Post)- Bookmark |
| Resolution | CIF ~ 32MP (Up to H.264 8.3MP- H.265 32MP) |
| Playback Control | Fast/Slow Forward / Backward- Move one step Up / Down |
| Protocol | IPv4- IPv6- TCP/IP- UDP/IP- RTP (UDP)- RTP (TCP)- RTSP- NTP- HTTP- DHCP (Server- Client)- SMTP- ICMP- IGMP- ARP- DNS- DDNS- uPnP- HTTPS- SNMP- ONVIF (Profile-S)- SUNAPI(Server- Client) |
| DDNS | Hanwha DDNS |
| Security | IP address filtering- User access Log- 802.1x- Encryption Device certificate(Hanwha Techwin Root CA)- Signed firmware |
| Front | Indicator |
| Storage | OK |
| HDMI | 1EA 3840x2160 30Hz |
| Ethernet | PoE+ RJ-45 16EA (LAN- 10/100)- RJ-45 2ea (LAN/WAN 1Gbps) |
| Alarm | In 4EA- Out 2EA |
| USB | 3EA(Front 2 x USB 2.0- Rear 1 x USB 3.0) |
| Power inlet | AC 1EA |
