Brand: Hanwha Tec
|
SKU:
10202572

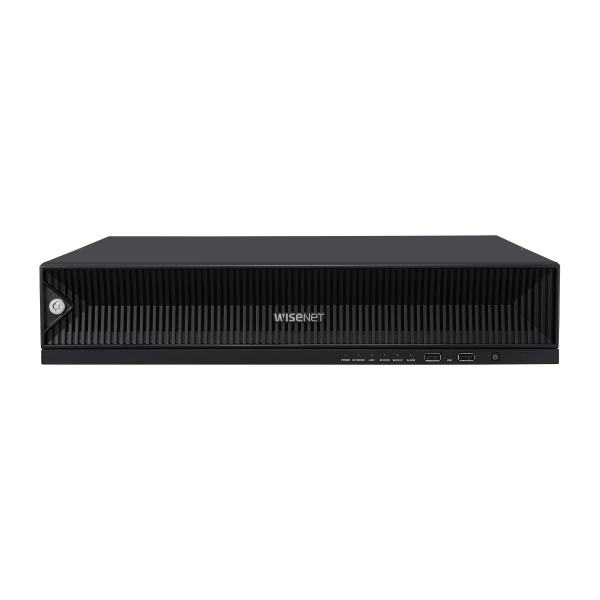

Hanwha Tec XRN-3210RB2-64TB | 8K NVR (Intel Based), 64Tb Raw, 32 Channels, H265,H264, Mjpeg
Regular price
$10,980.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hanwha Tec XRN-3210RB2-64TB | 8K NVR (Intel Based), 64Tb Raw, 32 Ch...
Regular price
$10,980.83
Unit price
Brand: Hanwha Tec
|
SKU:
10202572
Regular price
$10,980.83
Unit price
Shipping calculated at checkout.
Description
Description
Hanwha Tec XRN-3210RB2-64TB | 8K NVR (Intel Based), 64Tb Raw, 32 Channels, H265,H264, Mjpeg
8K NVR (Intel based), 64TB RAW, 32 channels, H265,H264, MJPEG, 8 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6, ARB (Automatic Recovery Backup), 400 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/V GA.
Hanwha Tec - XRN3210RB264TB - Features
- Up to 32 channels, Supports up to 32 megapixel camera resolution
- 400Mbps network camera recording
- Support 4K video out
- Support dual monitor video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 8 internal HDDs
- Support RAID 5/6
- Plugin-free web UI
- ARB & failover(N+1), dynamic event, Wisenet AI metadata search support
Specifications
Specifications
Hanwha Tec - XRN3210RB264TB - Specifications
| Audio | No |
|---|---|
| Type | NVR |
| UNSPSC Code | 46171621 |
| Network camera - Inputs | Max. 32CH |
| Network camera - Resolution | 32MP ~ CIF |
| Network camera - Protocols | SUNAPI, ONVIF |
| Decoding - Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz) |
| Decoding - Multi Screen Display | [Local Monitor] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ 25/ 36/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
| Operating System - Embedded | Linux |
| Record - Compression | H.265, H.264, MJPEG |
| Record - Recording Bandwidth | Max. 400Mbps |
| Record - Resolution | 32MP ~ CIF |
| Record - Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event |
| Record - Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
| Search & Play - Playback Bandwidth | RAID Mode : Max. 64Mbps(64CH simultaneously) Non-RAID Mode : Max. 32Mbps |
| Search & Play - Simultaneous playback | Max. 80CH(Local 32CH, Remote 16CH per user) |
| Search & Play - Fisheye Dewarping | CMS |
| Search & Play - Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) |
| Search & Play - Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage - Supported HDD | Up to 10TB |
| Storage - HDD Slot | SATA 8ea(Max. 80TB, Non-RAID mode) |
| Storage - RAID | RAID-5/6(Single, 1 Array) |
| Backup - File backup | BU/Exe(GUI), JPG/AVI(Network) |
| Camera Setup - Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| Smart phone - Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
| Smart phone - Control | Live 16CH(Multi-Profile Support), Playback 4CH |
| Redundancy - Failover | N+1 |
| Front - Indicator | HDD, Alarm, Power, Record, Backup, Network |
