HellermannTyton 111-12301 | Wide Strap Cable Tie, 12.1"L, 0.375"–3.25" Bndl Dia, 120Lb Tens Stngth, Pa66Hirhsuv, Black, 300/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

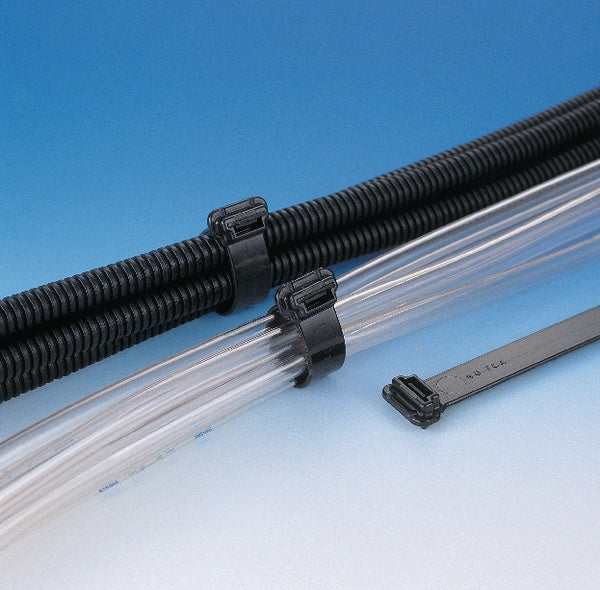

The Heavy Duty Wide-Strap Cable Tie was designed to minimize the pinching of soft bundles and the potential of lateral movement along the bundle. The low-profile head and underside clamping rails increase the grip around the bundle and provide a better fit than traditional cable ties. These are used primarily in the trucking and heavy equipment industries, but can be used in a wide variety of applications where strength is needed.
The Heavy Duty Wide-Strap Cable Tie was designed to minimize the pinching of soft bundles and the potential of lateral movement along the bundle. The low-profile head and underside clamping rails increase the grip around the bundle and provide a better fit than traditional cable ties. These are used primarily in the trucking and heavy equipment industries, but can be used in a wide variety of applications where strength is needed.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 111-12301 - Features
- Wide strap is designed to minimize pinching of soft hoses and convoluted tubing.

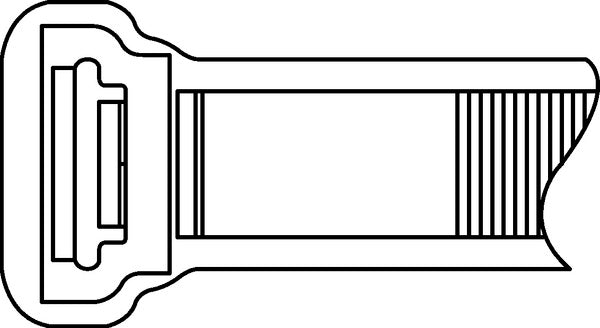

- Low-profile head with clamping rails provide compact bundling with a full circumferential compression around bundles.
- Wider and thinner strap design increases flexibility, provides low insertion and minimizes pinching of bundles.
- Bent tail allows for quick insertion into head or mounts.
- Strong fingers prevent unwanted breaking.
- Fingers are easily deflected outward, allowing ready positioning of the wires within the slotted wall duct.
- Restricted opening design in the finger of the duct helps keep wires in place.
- Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection.
- Supplied with mounting holes to streamline installation.
- Optional covers enhance protection and appearance.
Specifications
Specifications
HellermannTyton - 111-12301 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Cable Ties
- Wide Strap Cable Ties
HellermannTyton - 111-12301 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Cable Tie Diameter | 12" |
| Size | 12" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 111-12301 - Base Data
| Article Number | 111-12301 |
|---|---|
| Type | WSI |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Wide Strap Cable Tie, 12.1"L, 0.375"–3.25" Bndl Dia, 120lb Tens Stngth, PA66HIRHSUV, Black, 300/pkg |
| Global Part Name | WSI-PA66HIRHSUV-BK |
HellermannTyton - 111-12301 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 120 |
|---|---|
| Minimum Tensile Strength (Metric) | 535 |
| Length L (Imperial) | 12.1 |
| Length L (Metric) | 307 |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.5 |
| Width W (Metric) | 12.7 |
| Bundle Diameter Min (Imperial) | 0.38 |
| Bundle Diameter Min (Metric) | 9.5 |
| Bundle Diameter Max (Imperial) | 3.25 |
| Bundle Diameter Max (Metric) | 82.5 |
| Thickness T (Imperial) | 0.055 |
| Thickness T (Metric) | 1.4 |
| Cable Tie Head Length (Imperial) | 0.393 |
| Cable Tie Head Width (Imperial) | 0.78 |
HellermannTyton - 111-12301 - Logistic & Packaging
| Package Quantity (Imperial) | 300 |
|---|---|
| Package Quantity (Metric) | 300 |
| Customs Number | 3.93E+09 |
HellermannTyton - 111-12301 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
