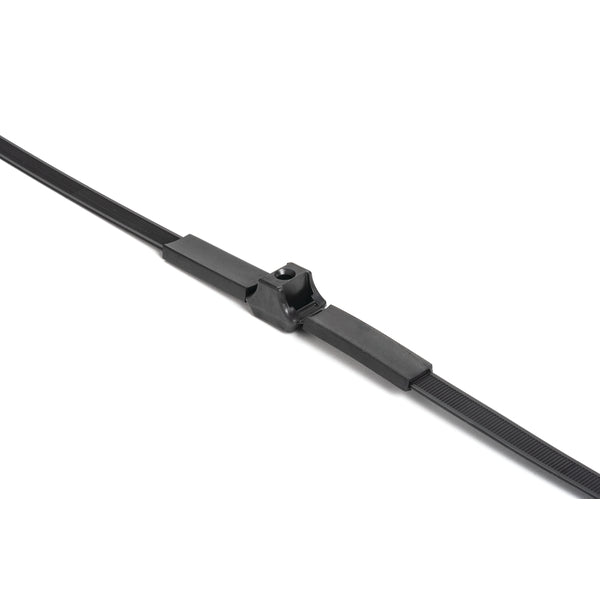

HellermannTyton 115-00145 | Dual Clamp Tie w/ Neoprene Sleeving, 0.25" Stud Dia., 150lb, PA66HIRHSUV, Black, 500/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 115-00145 | Dual Clamp Tie w/ Neoprene Sleeving, 0....
Description
Description
115-00145 One-piece mounting ties offer a complete solution by both bundling cable and at the same time providing a mounting solution. HellermannTytons one-piece mounting ties offer the ideal combination of high specification materials and superior des ign to suit the mounting and bundling needs of complex applications.
Dual-Clamp Ties are designed to provide parallel separation between hoses, wires, cables, and tubing to protect them from abrasion. These ties have an optional mounting hole for securing bundles along the chassis of trucks, trailers, and heavy-duty equipment. The unique one-piece design features the dual head centered on the strap.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 115-00145 - Features
- H-Mounts utilize existing frame rail bolts eliminating the need for additional fasteners.
- When used with cable ties, the H-Mounts eliminate the need to carry multiple sizes of fixed bundle diameter clamps which reduces inventory and purchasing costs.
- Top tie slot allows bundles to be positioned in up to three locations, to provide multiple use options.
- Side tie slots are are curved to minimize bundle abrasion and position the bundles adjacent to the bolt yet away from the frame.
Specifications
Specifications
HellermannTyton - 115-00145 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Bundle Separators
- Dual Clamp Ties
HellermannTyton - 115-00145 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 115-00145 - Base Data
| Article Number | 115-00145 |
|---|---|
| Type | DCT11SLVH1 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Dual Clamp Tie w/Neoprene Sleeving, 0.25" Stud Dia, 2.30" Max Bundle Dia,150lb, PA66HIRHSUV, Black, 500/pkg |
| Global Part Name | DCT11SLVH1-PA66HIRHSUV-BK |
HellermannTyton - 115-00145 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 150 |
|---|---|
| Minimum Tensile Strength (Metric) | 667 |
| Length L (Imperial) | 19.25 |
| Length L (Metric) | 489 |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.504 |
| Width W (Metric) | 12.8 |
| Bundle Diameter Min (Imperial) | 0.2 |
| Bundle Diameter Min (Metric) | 6.4 |
| Bundle Diameter Max (Imperial) | 2.28 |
| Bundle Diameter Max (Metric) | 58 |
| Height H (Imperial) | 0.75 |
| Height H (Metric) | 19.1 |
| Mounting Hole Diameter D (Imperial) | 0.2 |
| Mounting Hole Diameter D (Metric) | 6.2 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.2 |
| Mounting Hole Diameter D Max (Imperial) | 0.2 |
| Mounting Hole Diameter D Max (Metric) | 6.2 |
| Stud Diameter (Metric) | 6.35 mm |
| Stud Diamater (Imperial) | 0.25 |
HellermannTyton - 115-00145 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 115-00145 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
