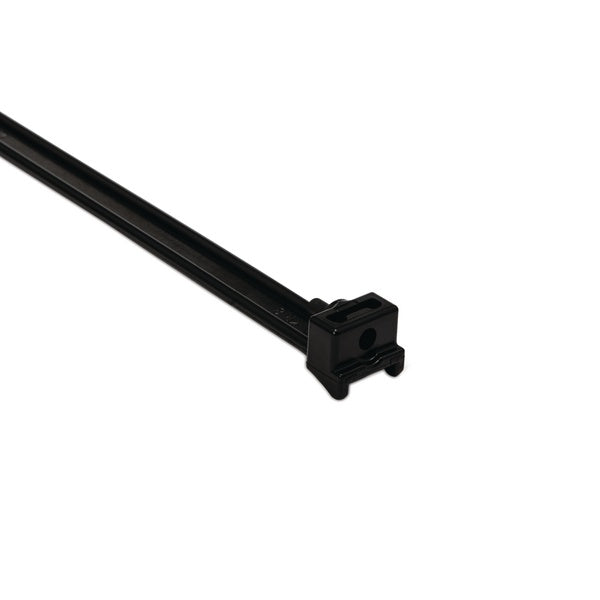

HellermannTyton 121-83360 | Kabelrap Tie, 13.3" Long, 176lb Tensile Strength, PA66UV, Black, 50/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 121-83360 | Kabelrap Tie, 13.3" Long, 176lb Te...
Description
Description

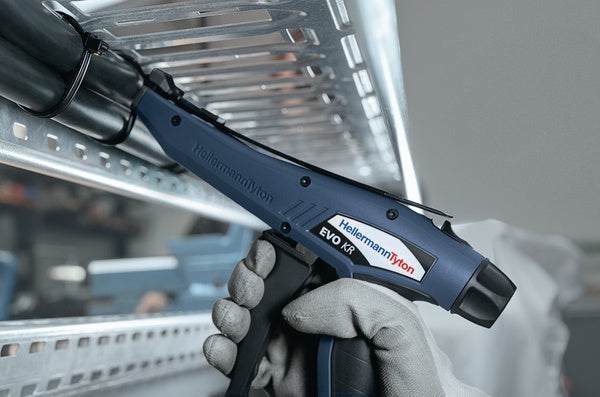

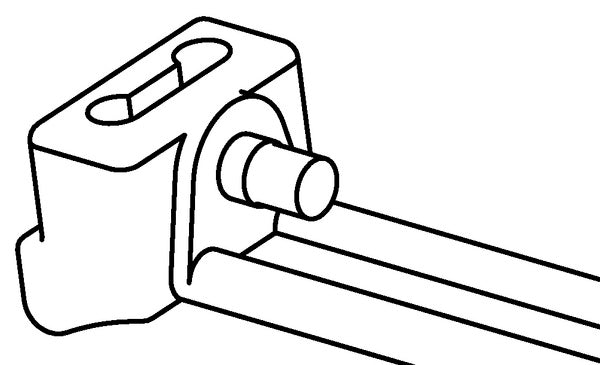

The patented Kabelrap cable tie design offers a smooth strap which is locked into place with a glass fiber reinforced pin. The curved head design provides full circumferential compression around the bundle or harness. Once applied with the required KR6 /8 manual tool, the tie offers a secure and vibration resistant assembly.
The patented Kabelrap cable tie design offers a smooth strap which is locked into place with a glass fiber reinforced pin. The curved head design provides full circumferential compression around the bundle or harness. Once applied with the required KR6/8 manual tool, the tie offers a secure and vibration resistant assembly.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 121-83360 - Features
- Kabelrap tie offers a smooth strap providing secure assembly without damaging cables or hoses.
- Curved head design provides full circumferential compression which offers vibration resistance.
Specifications
Specifications
HellermannTyton - 121-83360 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Cable Ties
- Cable Ties - Special Function
HellermannTyton - 121-83360 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Cable Tie Diameter | 14" |
| Size | 13" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 121-83360 - Base Data
| Article Number | 121-83360 |
|---|---|
| Type | KR8/33 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Kabelrap Tie, 13.3" Long, 176lb Tensile Strength, PA66UV, Black, 50/pkg |
| Global Part Name | KR8/33-PA66UV-BK |
HellermannTyton - 121-83360 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 176 |
|---|---|
| Minimum Tensile Strength (Metric) | 785 |
| Length L (Imperial) | 13.3 |
| Length L (Metric) | 337 |
| Fixation Method | Cable Tie |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | fibreglass pin |
| Variant | Not Serrated |
| Width W (Imperial) | 0.32 |
| Width W (Metric) | 8 |
| Bundle Diameter Min (Imperial) | 0.32 |
| Bundle Diameter Min (Metric) | 8 |
| Bundle Diameter Max (Imperial) | 3.4 |
| Bundle Diameter Max (Metric) | 86 |
| Thickness T (Imperial) | 0.091 |
| Thickness T (Metric) | 2.3 |
| Cable Tie Head Length (Imperial) | 0.31 |
| Cable Tie Head Width (Imperial) | 0.46 |
HellermannTyton - 121-83360 - Logistic & Packaging
| Package Quantity (Imperial) | 50 |
|---|---|
| Package Quantity (Metric) | 50 |
| Customs Number | 3.93E+09 |
HellermannTyton - 121-83360 - Materials & Specifications
| Material | Polyamide 6.6 UV-stabilized (PA66UV) |
|---|---|
| Material Shortcut | PA66UV |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | DNV GL | IEC 62275:2006 |
