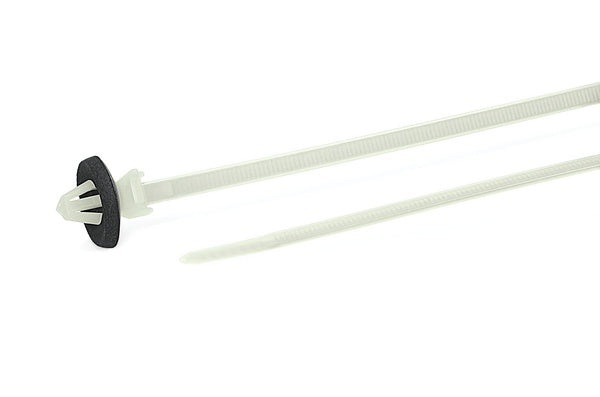

HellermannTyton 126-00065 | 1-Piece Cable Tie/Arrowhead Mount with Seal, 6.5" Long, 50lb Tensile, PA66HS, Natural, 500/bag
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 126-00065 | 1-Piece Cable Tie/Arrowhead Mount with ...
Description
Description

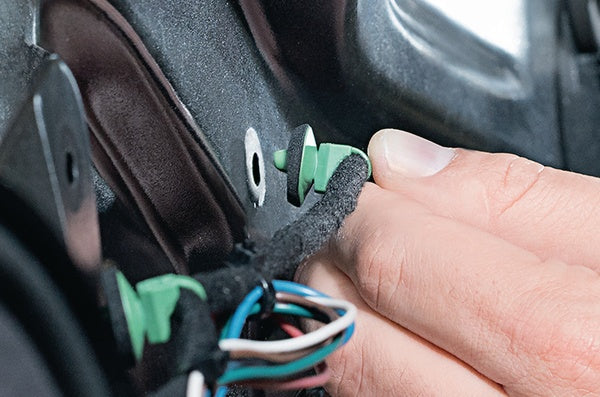

The arrowhead design of these ties offers a positive, low insertion force and a high extraction force. These ties feature a foam rubber seal which provides additional protection against moisture, dirt, and other impurities. One-piece mounting ties offe r a complete solution by both bundling cable and at the same time providing a mounting solution. HellermannTyton’s one-piece mounting ties offer the ideal combination of high specification materials and superior design to suit the mounting and bundling needs of complex applications.
The arrowhead design of these ties offers a positive, low insertion force and a high extraction force. These ties feature a foam rubber seal which provides additional protection against moisture, dirt, and other impurities. One-piece mounting ties offer a complete solution by both bundling cable and at the same time providing a mounting solution. HellermannTyton’s one-piece mounting ties offer the ideal combination of high specification materials and superior design to suit the mounting and bundling needs of complex applications.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 126-00065 - Features
- Design helps silence and stabilize the tie in high-vibration applications.

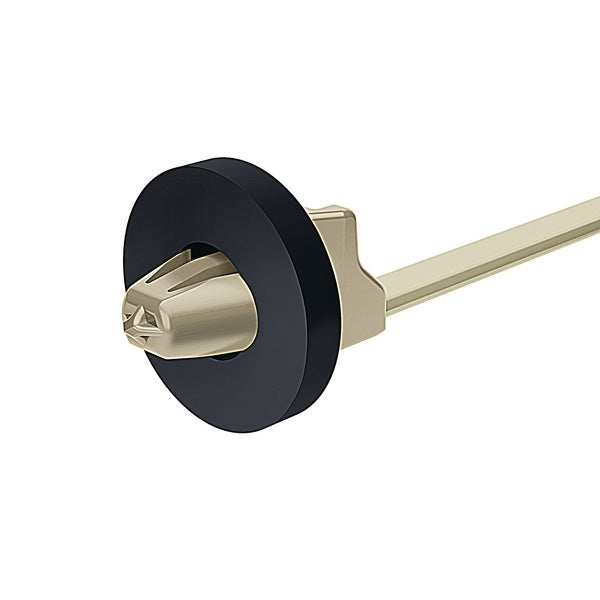

- Arrowhead-style mount provides low insertion and high extraction force.
- Anti-rotational oval fastener forces bundle to travel in intended direction.
- Rubber seal restricts waterand debris from passing through mounting hole.
- Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
- Edge Clip provides low insertion force and high extraction force ideal for assembly environments.
- Two-piece assembly allows the mount to slide along the strap ensuring proper orientation.
Specifications
Specifications
HellermannTyton - 126-00065 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Arrowhead Mount Cable Ties
HellermannTyton - 126-00065 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 126-00065 - Base Data
| Article Number | 126-00065 |
|---|---|
| Type | T50SOSSFT6.5E-MS-MD |
| Color | Natural (NA) |
| Quantity Per | bag |
| Short Description | 1-Piece Cable Tie/Arrowhead Mount with Seal, 6.5" Long, 50lb Tensile, PA66HS, Natural, 500/bg |
| Global Part Name | T50SOSSFT6.5E-MS-MD-PA66HS-NA |
HellermannTyton - 126-00065 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 40 |
|---|---|
| Minimum Tensile Strength (Metric) | 180 |
| Length L (Imperial) | 6.5 |
| Length L (Metric) | 163 |
| Fixation Method | Arrowhead |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Width W (Imperial) | 0.18 |
| Width W (Metric) | 4.6 |
| Bundle Diameter Min (Imperial) | 0.06 |
| Bundle Diameter Min (Metric) | 1.5 |
| Bundle Diameter Max (Imperial) | 1.38 |
| Bundle Diameter Max (Metric) | 35 |
| Thickness T (Imperial) | 0.05 |
| Thickness T (Metric) | 1.3 |
| Height H (Imperial) | 0.63 |
| Panel Thickness Min (Imperial) | 0.03 |
| Panel Thickness Max (Imperial) | 0.07 |
| Panel Thickness Min (Metric) | 0.7 |
| Panel Thickness Max (Metric) | 1.6 |
| Mounting Hole Diameter D (Imperial) | 0.25 - 0.27 |
| Mounting Hole Diameter D (Metric) | 6.25 - 6.75 mm6.1 - 6.6 mm (hexagonal) |
| Mounting Hole Diameter D Min (Imperial) | 0.25 |
| Mounting Hole Diameter D Max (Imperial) | 0.27 |
| Mounting Hole Diameter D Max (Metric) | 6.75 |
| Disc Diameter (Metric) | 16 |
| Disc Diameter (Imperial) | 0.63 |
HellermannTyton - 126-00065 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 126-00065 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HS |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
Documents and Downloads
Documents and Downloads
