HellermannTyton 132-00011 | Button Head Cable Tie, 15.0" Long, 4.3" Max Bundle Dia, 105lb, PA66HIRHSUV/PA66HS, Black, 50/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 132-00011 | Button Head Cable Tie, 15.0" Long,...
Description
Description

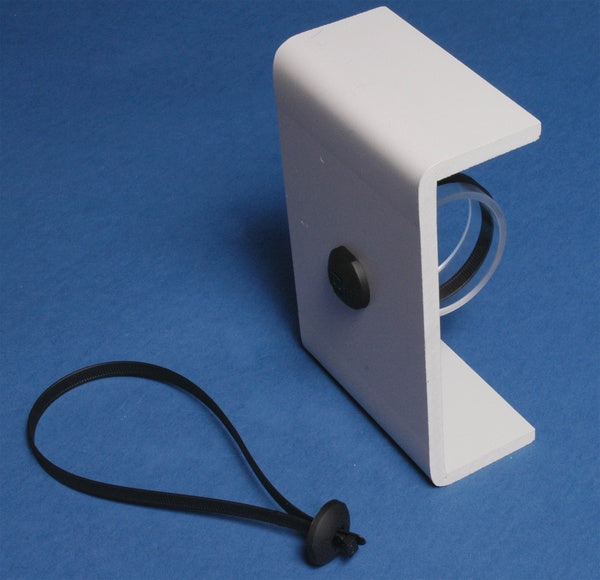

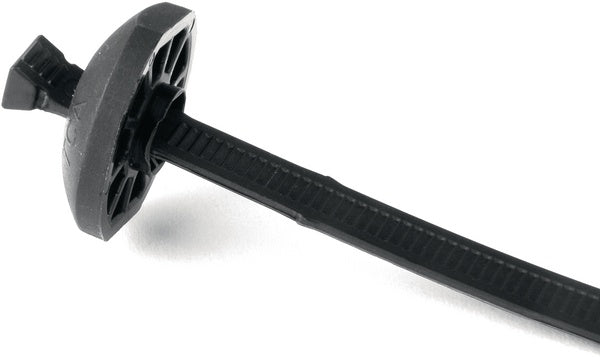

The button head tie is a two piece tie providing for parallel entry and exit through the head. The strap contains serrations on both sides, and has two opposed pawls recessed within a domed head. This design allows the strap to be directed clockwise or counter-clockwise prior to insertion into the head, enabling bi-directional looping.
The button head tie is a two piece tie providing for parallel entry and exit through the head. The strap contains serrations on both sides, and has two opposed pawls recessed within a domed head. This design allows the strap to be directed clockwise or counter-clockwise prior to insertion into the head, enabling bi-directional looping.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 132-00011 - Features
- Unique two piece tie allows parallel entry and exit through the head for easy assembly.

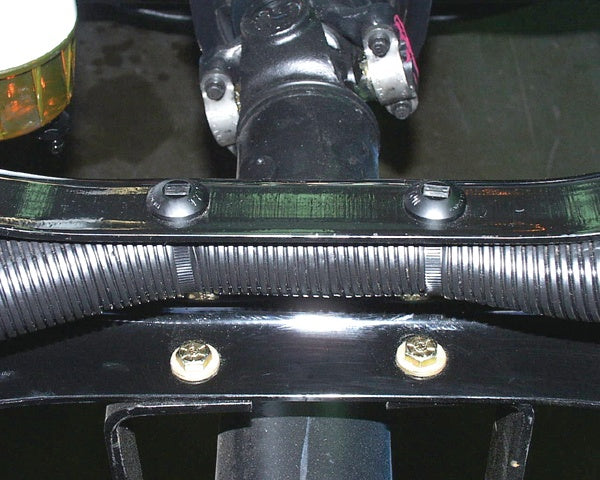

- High impact, heat stabilized material gives strength needed for trucking and heavy equipment applications.
- For use with HellermannTyton T18 - T50 cable ties to provide stability when securing bundles.
- 4-way opening allows cable ties to be installed parallel or perpendicular to bundles.
- The rubber-based adhesive is an economical choice ideal for indoor applications, with a static load weight of 1.1 lb.
- Two predrilled holes extend mounting options and solutions.
- Extended adhesive liner is easy to remove quickly.
Specifications
Specifications
HellermannTyton - 132-00011 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Button Head Cable Ties
HellermannTyton - 132-00011 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| UNSPSC Code | 39121703 |
HellermannTyton - 132-00011 - Base Data
| Article Number | 132-00011 |
|---|---|
| Type | BT105L |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Button Head Cable Tie, 15.0” Long, 4.3” Max Bundle Dia, 105lb, PA66HIRHSUV, Black, 50/pkg |
| Global Part Name | BT105L-PA66HIRHSUV-BK |
HellermannTyton - 132-00011 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 105 |
|---|---|
| Minimum Tensile Strength (Metric) | 467 |
| Length L (Imperial) | 15 |
| Length L (Metric) | 381.5 |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Width W (Imperial) | 0.22 |
| Width W (Metric) | 5.6 |
| Bundle Diameter Min (Imperial) | 0.25 |
| Bundle Diameter Min (Metric) | 6.4 |
| Bundle Diameter Max (Imperial) | 4.33 |
| Bundle Diameter Max (Metric) | 110 |
| Mounting Hole Diameter D (Metric) | 22.0 mm |
HellermannTyton - 132-00011 - Logistic & Packaging
| Package Quantity (Imperial) | 50 |
|---|---|
| Package Quantity (Metric) | 50 |
| Customs Number | 3.93E+09 |
HellermannTyton - 132-00011 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Material Cable Tie | Polyamide 6.6 high impact modified, heat and UV-resistant (PA66HIRHSUV) |
| Material Head | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
