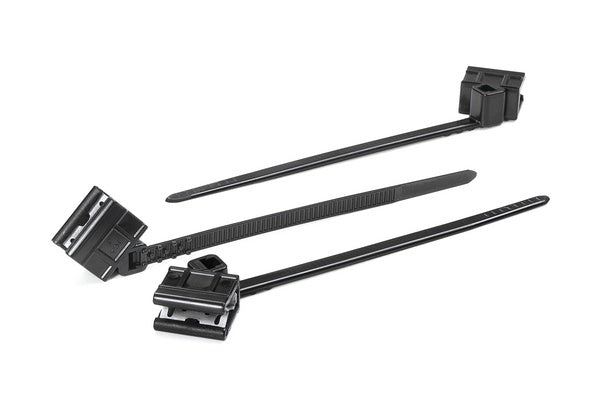

HellermannTyton 133-00059 | 1-Piece Cable Tie & Edge Clip, 3.5" Long, EC5, Panel Thickness .04"-.12", 50 lb, PA66HS, Black, 500/bag
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 133-00059 | 1-Piece Cable Tie & Edge Clip, 3.5&...
Description
Description

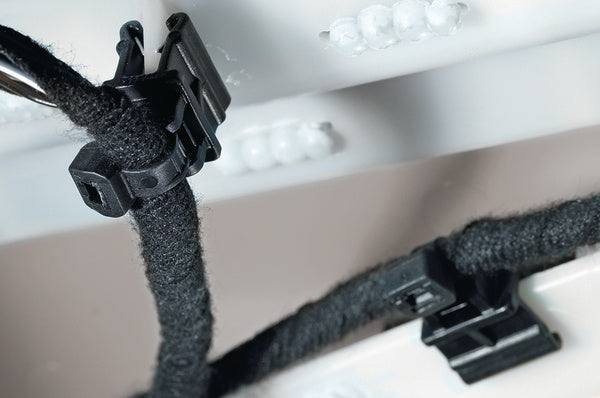

HellermannTyton’s Cable Tie with Edge Clip is designed to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure, and the extraction force is high due to the integrated me tal clamp that holds the edge clip in place. This fastener is molded as a one-piece clip and tie combination.
HellermannTyton’s Cable Tie with Edge Clip is designed to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place. This fastener is molded as a one-piece clip and tie combination.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 133-00059 - Features
- Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
- Edge Clip provides low insertion force and high extraction force ideal for assembly environments.
Specifications
Specifications
HellermannTyton - 133-00059 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Edge Clip Cable Ties
HellermannTyton - 133-00059 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 133-00059 - Base Data
| Article Number | 133-00059 |
|---|---|
| Type | T40XEC5SP-E |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | 1-Piece Cable Tie & Edge Clip, 3.5" Long, EC5, Panel Thickness .04 - 0.12", 50 lb, PA66HS, Black, 500/bg |
| Global Part Name | T40XEC5SP-E-PA66HS-BK |
HellermannTyton - 133-00059 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 40 |
|---|---|
| Minimum Tensile Strength (Metric) | 178 |
| Length L (Imperial) | 3.5 |
| Length L (Metric) | 85 |
| Fixation Method | Edge Clips |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.16 |
| Width W (Metric) | 4 |
| Bundle Diameter Min (Imperial) | 0.08 |
| Bundle Diameter Min (Metric) | 1.6 |
| Bundle Diameter Max (Imperial) | 0.6 |
| Bundle Diameter Max (Metric) | 15 |
| Height H (Imperial) | 0.05 |
| Height H (Metric) | 1.2 |
| Panel Thickness Min (Imperial) | 0.039 |
| Panel Thickness Max (Imperial) | 0.12 |
| Panel Thickness Min (Metric) | 1 |
| Panel Thickness Max (Metric) | 3 |
HellermannTyton - 133-00059 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 133-00059 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HS |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
HellermannTyton - 133-00059 - Videos
| HellermannTyton 133-00059 Video URL | Click to View |
|---|---|
| HellermannTyton 133-00059 Video URL 2 | Click to View |
