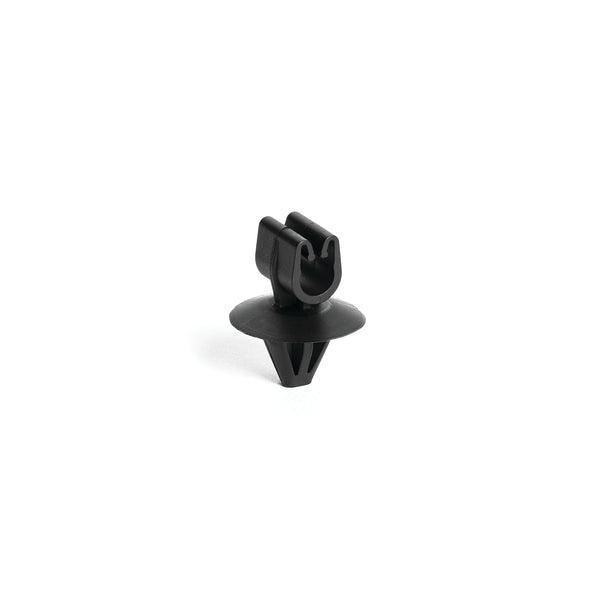

HellermannTyton 133-03178 | Tube and Pipe Clip with 6.5mm Arrowhead, 4.7-5.1mm Diameter, PA66HIRHS, Black, 4000/ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 133-03178 | Tube and Pipe Clip with 6.5mm Arrowhead...
Description
Description
This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses.
This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 133-03178 - Features
- Inverted retaining legs and narrow opening prevent inadvertent disengagement.
- Controlled flex and angeld entry promote easy installation.
- Robust arrowhead design provides low insertion effort yet delivers exceptional retention strength in a 6.5 mm hole in panels from 1.2 to 1.6 mm.
- Pipe clip secures routing to panel using a stud mount suited for a 5 or 6mm stud or bolt
- Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure
- Inverted retaining legs and narrow opening prevent inadvertent disengagement
- Controlled flex and angled entry promote easy installation
Specifications
Specifications
HellermannTyton - 133-03178 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Clips
- Tube and Pipe Clips
HellermannTyton - 133-03178 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 133-03178 - Base Data
| Article Number | 133-03178 |
|---|---|
| Type | PC5AH6.5 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Tube and Pipe Clip with 6.5mm Arrowhead, 4.7-5.1mm Diameter, PA66HIRHS, Black, 4000/ctn |
| Global Part Name | PC5AH6.5-PA66HIRHSUV-BK |
HellermannTyton - 133-03178 - Product Dimensions
| Length L (Imperial) | 0.67 |
|---|---|
| Length L (Metric) | 17 |
| Fixation Method | Arrowhead |
| Width W (Metric) | 10 |
| Height H (Imperial) | 0.86 |
| Height H (Metric) | 21.5 |
| Panel Thickness Min (Imperial) | 0.05 |
| Panel Thickness Max (Imperial) | 0.06 |
| Panel Thickness Min (Metric) | 1.2 |
| Panel Thickness Max (Metric) | 1.6 |
| Mounting Hole Diameter D (Metric) | 6.1 - 6.9 mm6.35 mm (hexagonal) |
| Disc Diameter (Metric) | 17 |
HellermannTyton - 133-03178 - Logistic & Packaging
| Package Quantity (Imperial) | 4000 |
|---|---|
| Package Quantity (Metric) | 4000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 133-03178 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
