HellermannTyton 133-03188 | Tube and Pipe Clip, 3x4.7-5.1mm Diamete...
Description
Description

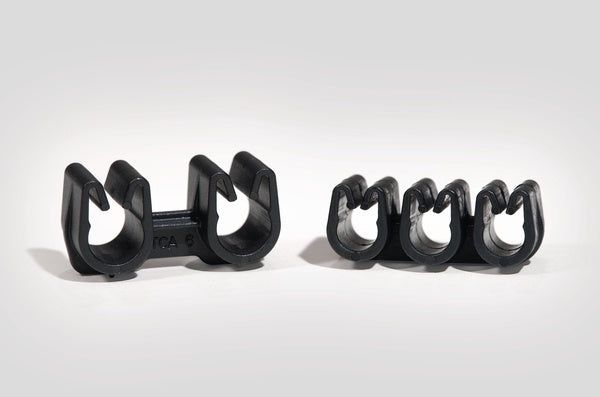

This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses.
This clip features a modular design that can be used individually or lined together to secure multiple pipes or hoses.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 133-03188 - Features

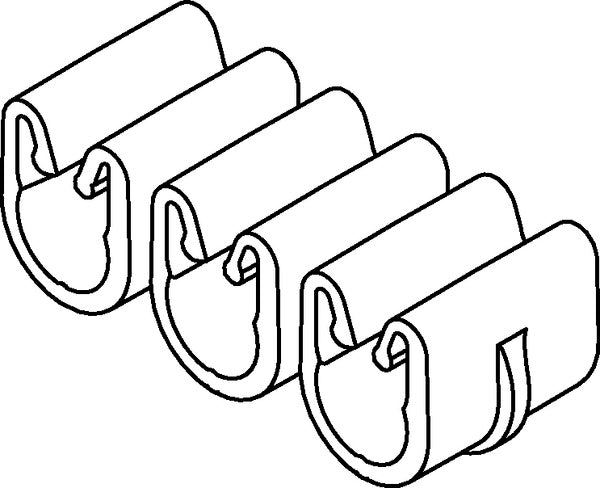

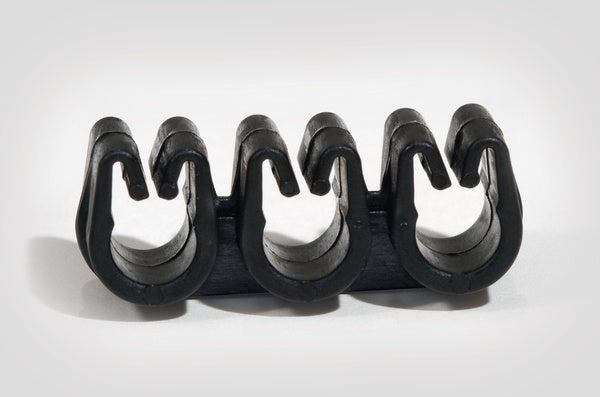

- Triple pipe clip secures three routings together while keeping them separated, to prevent chafing or heat transfer.
- Inverted retaining legs and narrow opening prevent inadvertent disengagement of pipe.
- Controlled flex and angled entry promote easy pipe installation.
Specifications
Specifications
HellermannTyton - 133-03188 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Clips
- Tube and Pipe Clips
HellermannTyton - 133-03188 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 133-03188 - Base Data
| Article Number | 133-03188 |
|---|---|
| Type | PC5X3 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Tube and Pipe Clip, 3x4.7-5.1mm Diameter, PA66HIRHSUV, Black, 4000/ctn |
| Global Part Name | PC5X3-PA66HIRHSUV-BK |
HellermannTyton - 133-03188 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 20 |
|---|---|
| Minimum Tensile Strength (Metric) | 90 |
| Length L (Imperial) | 1.03 |
| Length L (Metric) | 25.2 |
| Width W (Imperial) | 0.4 |
| Width W (Metric) | 10.16 |
| Height H (Imperial) | 0.38 |
| Height H (Metric) | 9.3 |
| Nominal Diameter (Metric) | 4.7 |
HellermannTyton - 133-03188 - Logistic & Packaging
| Package Quantity (Imperial) | 4000 |
|---|---|
| Package Quantity (Metric) | 4000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 133-03188 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
